ROHC decompression context for the TCP profile. More...

#include "d_tcp_defines.h"
#include "d_tcp_static.h"
#include "d_tcp_dynamic.h"
#include "d_tcp_replicate.h"
#include "d_tcp_irregular.h"
#include "d_tcp_opts_list.h"
#include "rohc_decomp.h"
#include "rohc_decomp_internals.h"
#include "rohc_packets.h"
#include "rohc_bit_ops.h"
#include "rohc_traces_internal.h"
#include "rohc_utils.h"
#include "rohc_debug.h"
#include "sdvl.h"
#include "schemes/rfc4996.h"
#include "schemes/decomp_wlsb.h"
#include "schemes/tcp_sack.h"
#include "schemes/tcp_ts.h"
#include "protocols/tcp.h"
#include "protocols/ip_numbers.h"
#include "crc.h"
#include "config.h"
#include <string.h>
#include <stdint.h>

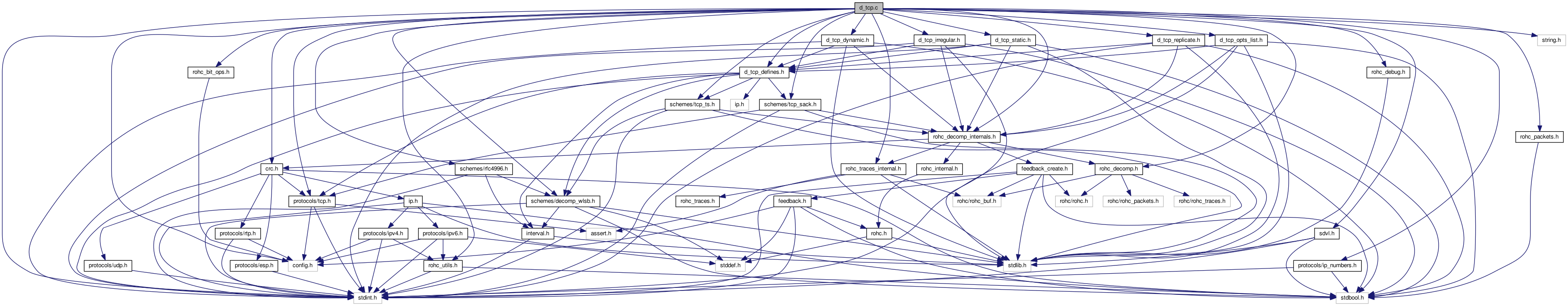

Include dependency graph for d_tcp.c:

Functions
static bool	d_tcp_create_from_pkt (const struct rohc_decomp_ctxt const context, struct d_tcp_context const persist_ctxt, struct rohc_decomp_volat_ctxt const volat_ctxt)
	Create the TCP decompression context. More...

static void	d_tcp_create_from_ctxt (struct rohc_decomp_ctxt const ctxt, const struct rohc_tcp_decoded_values const decoded)
	Create a new TCP context and initialize it thanks to the given context. More...

static void	d_tcp_destroy (struct d_tcp_context const tcp_context, const struct rohc_decomp_volat_ctxt const volat_ctxt)
	Destroy the context. More...

static rohc_packet_t	tcp_detect_packet_type (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, const size_t large_cid_len)
	Detect the type of ROHC packet for the TCP profile. More...

static uint32_t	d_tcp_get_msn (const struct rohc_decomp_ctxt *const context)
	Get the reference MSN value of the context. More...

static bool	d_tcp_parse_packet (const struct rohc_decomp_ctxt const context, const struct rohc_buf rohc_packet, const size_t large_cid_len, rohc_packet_t const packet_type, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const extr_bits, size_t *const rohc_hdr_len)
	Parse the given ROHC packet for the TCP profile. More...

static bool	d_tcp_parse_ir (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, const size_t large_cid_len, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t *const rohc_hdr_len)
	Parse the given IR packet for the TCP profile. More...

static bool	d_tcp_parse_ir_cr (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, const size_t large_cid_len, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t *const rohc_hdr_len)
	Parse the given IR-CR packet for the TCP profile. More...

static bool	d_tcp_parse_irdyn (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, const size_t large_cid_len, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t *const rohc_hdr_len)
	Parse othe given IR-DYN packet for the TCP profile. More...

static bool	d_tcp_parse_CO (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, const size_t large_cid_len, const rohc_packet_t packet_type, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t *const rohc_hdr_len)
	Parse the given CO packet for the TCP profile. More...

static bool	d_tcp_parse_rnd_1 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given rnd_1 packet for the TCP profile. More...

static bool	d_tcp_parse_rnd_2 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given rnd_2 packet for the TCP profile. More...

static bool	d_tcp_parse_rnd_3 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given rnd_3 packet for the TCP profile. More...

static bool	d_tcp_parse_rnd_4 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given rnd_4 packet for the TCP profile. More...

static bool	d_tcp_parse_rnd_5 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given rnd_5 packet for the TCP profile. More...

static bool	d_tcp_parse_rnd_6 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given rnd_6 packet for the TCP profile. More...

static bool	d_tcp_parse_rnd_7 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given rnd_7 packet for the TCP profile. More...

static bool	d_tcp_parse_rnd_8 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given rnd_8 packet for the TCP profile. More...

static bool	d_tcp_parse_seq_1 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given seq_1 packet for the TCP profile. More...

static bool	d_tcp_parse_seq_2 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given seq_2 packet for the TCP profile. More...

static bool	d_tcp_parse_seq_3 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given seq_3 packet for the TCP profile. More...

static bool	d_tcp_parse_seq_4 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given seq_4 packet for the TCP profile. More...

static bool	d_tcp_parse_seq_5 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given seq_5 packet for the TCP profile. More...

static bool	d_tcp_parse_seq_6 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given seq_6 packet for the TCP profile. More...

static bool	d_tcp_parse_seq_7 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given seq_7 packet for the TCP profile. More...

static bool	d_tcp_parse_seq_8 (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given seq_8 packet for the TCP profile. More...

static bool	d_tcp_parse_co_common (const struct rohc_decomp_ctxt const context, const uint8_t const rohc_packet, const size_t rohc_length, struct rohc_decomp_crc const extr_crc, struct rohc_tcp_extr_bits const bits, size_t const rohc_hdr_len, bool const has_opts_list)
	Parse the given co_common packet for the TCP profile. More...

static void	d_tcp_reset_extr_bits (const struct rohc_decomp_ctxt const context, struct rohc_tcp_extr_bits const bits)
	Reset the extracted bits for next parsing. More...

static bool	d_tcp_decode_bits (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_extr_bits const bits, const size_t payload_len, struct rohc_tcp_decoded_values *const decoded)
	Decode values from extracted bits. More...

static bool	d_tcp_decode_bits_ip_hdrs (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_extr_bits const bits, struct rohc_tcp_decoded_values *const decoded)
	Decode values for all IP headers from extracted bits. More...

static bool	d_tcp_decode_bits_ip_hdr (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_extr_ip_bits const ip_bits, const ip_context_t const ip_context, const uint16_t decoded_msn, struct rohc_tcp_decoded_ip_values const ip_decoded)
	Decode values for one IP header from extracted bits. More...

static bool	d_tcp_decode_bits_tcp_hdr (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_extr_bits const bits, const size_t payload_len, struct rohc_tcp_decoded_values *const decoded)
	Decode values for the TCP header from extracted bits. More...

static void	d_tcp_decode_bits_tcp_flags (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_extr_bits const bits, struct rohc_tcp_decoded_values *const decoded)
	Decode values for the TCP header flags from extracted bits. More...

static bool	d_tcp_decode_bits_tcp_opts (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_extr_bits const bits, struct rohc_tcp_decoded_values *const decoded)
	Decode values for the TCP options from extracted bits. More...

static bool	d_tcp_decode_opt_ts_field (const struct rohc_decomp_ctxt const context, const char const descr, const struct rohc_lsb_decode const lsb_ctxt, const struct rohc_lsb_field32 ts, uint32_t const ts_decoded)
	Decode the given TS field of the TCP TimeStamp (TS) option. More...

static void	d_tcp_decode_opt_sack (const struct rohc_decomp_ctxt const context, const uint32_t ack_num, const struct d_tcp_opt_sack bits, struct d_tcp_opt_sack const decoded)
	Decode the TCP SACK option. More...

static bool	d_tcp_build_ipv4_hdr (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_decoded_ip_values const decoded, struct rohc_buf const uncomp_packet, size_t const ip_hdr_len)
	Build one single uncompressed IPv4 header. More...

static bool	d_tcp_build_ipv6_hdr (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_decoded_ip_values const decoded, struct rohc_buf const uncomp_packet, size_t const ip_hdr_len)
	Build one single uncompressed IPv6 header. More...

static bool	d_tcp_build_ip_hdr (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_decoded_ip_values const decoded, struct rohc_buf const uncomp_packet, size_t const ip_hdr_len)
	Build one single uncompressed IP header. More...

static bool	d_tcp_build_ip_hdrs (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_decoded_values const decoded, struct rohc_buf const uncomp_packet, size_t const ip_hdrs_len)
	Build all of the uncompressed IP headers. More...

static bool	d_tcp_build_tcp_hdr (const struct rohc_decomp_ctxt const context, const struct rohc_tcp_decoded_values const decoded, struct rohc_buf const uncomp_packet, size_t const tcp_full_len)
	Build the uncompressed TCP header. More...

static rohc_status_t	d_tcp_build_hdrs (const struct rohc_decomp const decomp, const struct rohc_decomp_ctxt const context, const rohc_packet_t packet_type, const struct rohc_decomp_crc const extr_crc, const struct rohc_tcp_decoded_values const decoded, const size_t payload_len, struct rohc_buf const uncomp_hdrs, size_t const uncomp_hdrs_len)
	Build the uncompressed headers. More...

static bool	d_tcp_check_uncomp_crc (const struct rohc_decomp const decomp, const struct rohc_decomp_ctxt const context, struct rohc_buf *const uncomp_hdrs, const rohc_crc_type_t crc_type, const uint8_t crc_packet)
	Check whether the CRC on uncompressed header is correct or not. More...

static bool	d_tcp_attempt_repair (const struct rohc_decomp const decomp, const struct rohc_decomp_ctxt const context, const struct rohc_ts pkt_arrival_time, struct rohc_decomp_crc_corr_ctxt const crc_corr, struct rohc_tcp_extr_bits const bits)
	Attempt a packet/context repair upon CRC failure. More...

static void	d_tcp_update_ctxt (struct rohc_decomp_ctxt const context, const struct rohc_tcp_decoded_values const decoded, const size_t payload_len, bool *const do_change_mode)
	Update the decompression context with the infos of current packet. More...

Variables
const struct rohc_decomp_profile	d_tcp_profile
	Define the decompression part of the TCP profile as described in the RFC 3095. More...

Detailed Description

ROHC decompression context for the TCP profile.

Author: FWX rohc_.nosp@m.team.nosp@m.@dial.nosp@m.ine..nosp@m.fr; Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org; Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com

Function Documentation

◆ d_tcp_attempt_repair()

static bool d_tcp_attempt_repair	(	const struct rohc_decomp *const	decomp,
		const struct rohc_decomp_ctxt *const	context,
		const struct rohc_ts	pkt_arrival_time,
		struct rohc_decomp_crc_corr_ctxt *const	crc_corr,
		struct rohc_tcp_extr_bits *const	bits
	)

static

Attempt a packet/context repair upon CRC failure.

Parameters

	decomp	The ROHC decompressor
	context	The decompression context
	pkt_arrival_time	The arrival time of the ROHC packet that caused the CRC failure
[in,out]	crc_corr	The context for corrections upon CRC failures
[in,out]	bits	The bits extracted from the ROHC header

Returns: true if repair is possible, false if not

◆ d_tcp_build_hdrs()

static rohc_status_t d_tcp_build_hdrs	(	const struct rohc_decomp *const	decomp,
		const struct rohc_decomp_ctxt *const	context,
		const rohc_packet_t	packet_type,
		const struct rohc_decomp_crc *const	extr_crc,
		const struct rohc_tcp_decoded_values *const	decoded,
		const size_t	payload_len,
		struct rohc_buf *const	uncomp_hdrs,
		size_t *const	uncomp_hdrs_len
	)

static

Build the uncompressed headers.

Build all the uncompressed IP headers, TCP headers from the context and packet informations.

Parameters

	decomp	The ROHC decompressor
	context	The decompression context
	packet_type	The type of ROHC packet
	extr_crc	The CRC bits extracted from the ROHC header
	decoded	The values decoded from ROHC header
	payload_len	The length of the packet payload (in bytes)
[out]	uncomp_hdrs	The uncompressed headers being built
[out]	uncomp_hdrs_len	The length of the uncompressed headers written into the buffer

Returns

Possible values:

ROHC_STATUS_OK if headers are built successfully,
ROHC_STATUS_BAD_CRC if headers do not match CRC,
ROHC_STATUS_OUTPUT_TOO_SMALL if uncomp_packet is too small

◆ d_tcp_build_ip_hdr()

static bool d_tcp_build_ip_hdr	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_decoded_ip_values *const	decoded,
		struct rohc_buf *const	uncomp_packet,
		size_t *const	ip_hdr_len
	)

static

Build one single uncompressed IP header.

Build one single uncompressed IP header - IPv4 or IPv6 - from the context and packet informations.

Parameters

	context	The decompression context
	decoded	The values decoded from the ROHC packet
[out]	uncomp_packet	The uncompressed packet being built
[out]	ip_hdr_len	The length of the IP header (in bytes)

Returns: true if IP header was successfully built, false if the output uncomp_packet was not large enough

◆ d_tcp_build_ip_hdrs()

static bool d_tcp_build_ip_hdrs	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_decoded_values *const	decoded,
		struct rohc_buf *const	uncomp_packet,
		size_t *const	ip_hdrs_len
	)

static

Build all of the uncompressed IP headers.

Build all of the uncompressed IP headers - IPv4 or IPv6 - from the context and packet informations.

Parameters

	context	The decompression context
	decoded	The values decoded from the ROHC packet
[out]	uncomp_packet	The uncompressed packet being built
[out]	ip_hdrs_len	The length of all the IP headers (in bytes)

Returns: true if IP headers were successfully built, false if the output uncomp_packet was not large enough

◆ d_tcp_build_ipv4_hdr()

static bool d_tcp_build_ipv4_hdr	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_decoded_ip_values *const	decoded,
		struct rohc_buf *const	uncomp_packet,
		size_t *const	ip_hdr_len
	)

static

Build one single uncompressed IPv4 header.

Build one single uncompressed IPv4 header from the context and packet informations.

Parameters

	context	The decompression context
	decoded	The values decoded from the ROHC packet
[out]	uncomp_packet	The uncompressed packet being built
[out]	ip_hdr_len	The length of the IPv4 header (in bytes)

Returns: true if IPv4 header was successfully built, false if the output uncomp_packet was not large enough

◆ d_tcp_build_ipv6_hdr()

static bool d_tcp_build_ipv6_hdr	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_decoded_ip_values *const	decoded,
		struct rohc_buf *const	uncomp_packet,
		size_t *const	ip_hdr_len
	)

static

Build one single uncompressed IPv6 header.

Build one single uncompressed IPv6 header - including IPv6 extension headers - from the context and packet informations.

Parameters

	context	The decompression context
	decoded	The values decoded from the ROHC packet
[out]	uncomp_packet	The uncompressed packet being built
[out]	ip_hdr_len	The length of the IPv6 header (in bytes)

Returns: true if IPv6 header was successfully built, false if the output uncomp_packet was not large enough

◆ d_tcp_build_tcp_hdr()

static bool d_tcp_build_tcp_hdr	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_decoded_values *const	decoded,
		struct rohc_buf *const	uncomp_packet,
		size_t *const	tcp_full_len
	)

static

Build the uncompressed TCP header.

Build the uncompressed TCP header - including the TCP options - from the context and packet informations.

Parameters

	context	The decompression context
	decoded	The values decoded from ROHC header
[out]	uncomp_packet	The uncompressed packet being built
[out]	tcp_full_len	The length of the TCP header (in bytes)

Returns: true if TCP header was successfully built, false if the output uncomp_packet was not large enough

◆ d_tcp_check_uncomp_crc()

static bool d_tcp_check_uncomp_crc	(	const struct rohc_decomp *const	decomp,
		const struct rohc_decomp_ctxt *const	context,
		struct rohc_buf *const	uncomp_hdrs,
		const rohc_crc_type_t	crc_type,
		const uint8_t	crc_packet
	)

static

Check whether the CRC on uncompressed header is correct or not.

Parameters

decomp	The ROHC decompressor
context	The decompression context
uncomp_hdrs	The uncompressed headers
crc_type	The type of CRC
crc_packet	The CRC extracted from the ROHC header

Returns: true if the CRC is correct, false otherwise

◆ d_tcp_create_from_ctxt()

static void d_tcp_create_from_ctxt	(	struct rohc_decomp_ctxt *const	ctxt,
		const struct rohc_tcp_decoded_values *const	decoded
	)

static

Create a new TCP context and initialize it thanks to the given context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

ctxt	The decompression context to create
decoded	The information decoded from packet to determine which base context to use to initialize the new context

◆ d_tcp_create_from_pkt()

static bool d_tcp_create_from_pkt	(	const struct rohc_decomp_ctxt *const	context,
		struct d_tcp_context **const	persist_ctxt,
		struct rohc_decomp_volat_ctxt *const	volat_ctxt
	)

static

Create the TCP decompression context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

	context	The main decompression context
[out]	persist_ctxt	The persistent part of the decompression context
[out]	volat_ctxt	The volatile part of the decompression context

Returns: true if creation succeeded, false in case of problem

◆ d_tcp_decode_bits()

static bool d_tcp_decode_bits	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_extr_bits *const	bits,
		const size_t	payload_len,
		struct rohc_tcp_decoded_values *const	decoded
	)

static

Decode values from extracted bits.

Parameters

	context	The decompression context
	bits	The bits extracted from the ROHC packet
	payload_len	The length of the packet payload (in bytes)
[out]	decoded	The corresponding decoded values

Returns: true if decoding is successful, false otherwise

◆ d_tcp_decode_bits_ip_hdr()

static bool d_tcp_decode_bits_ip_hdr	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_extr_ip_bits *const	ip_bits,
		const ip_context_t *const	ip_context,
		const uint16_t	decoded_msn,
		struct rohc_tcp_decoded_ip_values *const	ip_decoded
	)

static

Decode values for one IP header from extracted bits.

Parameters

	context	The decompression context
	ip_bits	The IP bits extracted from the ROHC packet
	ip_context	The IP values recorded in context
	decoded_msn	The decoded Master Sequence Number (MSN)
[out]	ip_decoded	The corresponding decoded IP values

Returns: true if decoding is successful, false otherwise

◆ d_tcp_decode_bits_ip_hdrs()

static bool d_tcp_decode_bits_ip_hdrs	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_extr_bits *const	bits,
		struct rohc_tcp_decoded_values *const	decoded
	)

static

Decode values for all IP headers from extracted bits.

Parameters

	context	The decompression context
	bits	The bits extracted from the ROHC packet
[out]	decoded	The corresponding decoded values

Returns: true if decoding is successful, false otherwise

◆ d_tcp_decode_bits_tcp_flags()

static void d_tcp_decode_bits_tcp_flags	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_extr_bits *const	bits,
		struct rohc_tcp_decoded_values *const	decoded
	)

static

Decode values for the TCP header flags from extracted bits.

Parameters

	context	The decompression context
	bits	The bits extracted from the ROHC packet
[out]	decoded	The corresponding decoded values

◆ d_tcp_decode_bits_tcp_hdr()

static bool d_tcp_decode_bits_tcp_hdr	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_extr_bits *const	bits,
		const size_t	payload_len,
		struct rohc_tcp_decoded_values *const	decoded
	)

static

Decode values for the TCP header from extracted bits.

Parameters

	context	The decompression context
	bits	The bits extracted from the ROHC packet
	payload_len	The length of the packet payload (in bytes)
[out]	decoded	The corresponding decoded values

Returns: true if decoding is successful, false otherwise

◆ d_tcp_decode_bits_tcp_opts()

static bool d_tcp_decode_bits_tcp_opts	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_extr_bits *const	bits,
		struct rohc_tcp_decoded_values *const	decoded
	)

static

Decode values for the TCP options from extracted bits.

Parameters

	context	The decompression context
	bits	The bits extracted from the ROHC packet
[out]	decoded	The corresponding decoded values

Returns: true if decoding is successful, false otherwise

◆ d_tcp_decode_opt_sack()

static void d_tcp_decode_opt_sack	(	const struct rohc_decomp_ctxt *const	context,
		const uint32_t	ack_num,
		const struct d_tcp_opt_sack	bits,
		struct d_tcp_opt_sack *const	decoded
	)

static

Decode the TCP SACK option.

Warning: The available length in the opt_sack->uncomp_opt buffer shall have been checked before calling this function

Parameters

	context	The decompression context
	ack_num	The TCP ACK number of the current packet
	bits	The bits of SACK option extracted from the packet
[out]	decoded	The values decoded from the ROHC packet

◆ d_tcp_decode_opt_ts_field()

static bool d_tcp_decode_opt_ts_field	(	const struct rohc_decomp_ctxt *const	context,
		const char *const	descr,
		const struct rohc_lsb_decode *const	lsb_ctxt,
		const struct rohc_lsb_field32	ts,
		uint32_t *const	ts_decoded
	)

static

Decode the given TS field of the TCP TimeStamp (TS) option.

Warning: The available length in the opt_ts->uncomp_opt buffer shall have been checked before calling this function

Parameters

	context	The decompression context
	descr	A description for the TS field being decoded
	lsb_ctxt	The LSB decoding context to use for decoding
	ts	The TS bits extracted from the ROHC packet
[out]	ts_decoded	The decoded TS field (in HBO)

Returns: true if TS field was successfully decoded, false if a problem occurred during decoding

◆ d_tcp_destroy()

static void d_tcp_destroy	(	struct d_tcp_context *const	tcp_context,
		const struct rohc_decomp_volat_ctxt *const	volat_ctxt
	)

static

Destroy the context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

tcp_context	The persistent decompression context for the TCP profile
volat_ctxt	The volatile decompression context

◆ d_tcp_get_msn()

static uint32_t d_tcp_get_msn ( const struct rohc_decomp_ctxt *const context )

static

Get the reference MSN value of the context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context The decompression context

Returns: The reference MSN value

◆ d_tcp_parse_CO()

static bool d_tcp_parse_CO	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		const size_t	large_cid_len,
		const rohc_packet_t	packet_type,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len
	)

static

Parse the given CO packet for the TCP profile.

  RFC 6846, section 7.3. Compressed (CO) Packets

     0   1   2   3   4   5   6   7
    --- --- --- --- --- --- --- ---
 1  :         Add-CID octet         :  if for small CIDs and CID 1-15
    +---+---+---+---+---+---+---+---+
 2  |   First octet of base header  |  (with type indication)
    +---+---+---+---+---+---+---+---+
    :                               :
 3  /   0, 1, or 2 octets of CID    /  1-2 octets if large CIDs
    :                               :
    +---+---+---+---+---+---+---+---+
 4  /   Remainder of base header    /  variable number of octets
    +---+---+---+---+---+---+---+---+
    :        Irregular chain        :
 5  /   (including irregular chain  /  variable
    :    items for TCP options)     :
     --- --- --- --- --- --- --- ---
    |                               |
 6  /            Payload            / variable length
    |                               |
     - - - - - - - - - - - - - - - -

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
	large_cid_len	The length of the optional large CID field
	packet_type	The type of the ROHC packet to parse
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_co_common()

static bool d_tcp_parse_co_common	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given co_common packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_ir()

static bool d_tcp_parse_ir	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		const size_t	large_cid_len,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len
	)

static

Parse the given IR packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet to decode
	large_cid_len	The length of the optional large CID field
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the IR packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_ir_cr()

static bool d_tcp_parse_ir_cr	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		const size_t	large_cid_len,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len
	)

static

Parse the given IR-CR packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet to decode
	large_cid_len	The length of the optional large CID field
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the IR packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_irdyn()

static bool d_tcp_parse_irdyn	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		const size_t	large_cid_len,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len
	)

static

Parse othe given IR-DYN packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet to decode
	large_cid_len	The length of the optional large CID field
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the IR-DYN packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_packet()

static bool d_tcp_parse_packet	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_buf	rohc_packet,
		const size_t	large_cid_len,
		rohc_packet_t *const	packet_type,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	extr_bits,
		size_t *const	rohc_hdr_len
	)

static

Parse the given ROHC packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to parse
	large_cid_len	The length of the optional large CID field
[in,out]	packet_type	IN: The type of the ROHC packet to parse OUT: The type of the parsed ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	extr_bits	The bits extracted from the ROHC packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_rnd_1()

static bool d_tcp_parse_rnd_1	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given rnd_1 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_rnd_2()

static bool d_tcp_parse_rnd_2	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given rnd_2 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_rnd_3()

static bool d_tcp_parse_rnd_3	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given rnd_3 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_rnd_4()

static bool d_tcp_parse_rnd_4	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given rnd_4 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_rnd_5()

static bool d_tcp_parse_rnd_5	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given rnd_5 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_rnd_6()

static bool d_tcp_parse_rnd_6	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given rnd_6 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_rnd_7()

static bool d_tcp_parse_rnd_7	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given rnd_7 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_rnd_8()

static bool d_tcp_parse_rnd_8	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given rnd_8 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_seq_1()

static bool d_tcp_parse_seq_1	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given seq_1 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_seq_2()

static bool d_tcp_parse_seq_2	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given seq_2 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_seq_3()

static bool d_tcp_parse_seq_3	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given seq_3 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_seq_4()

static bool d_tcp_parse_seq_4	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given seq_4 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_seq_5()

static bool d_tcp_parse_seq_5	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given seq_5 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_seq_6()

static bool d_tcp_parse_seq_6	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given seq_6 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_seq_7()

static bool d_tcp_parse_seq_7	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given seq_7 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_parse_seq_8()

static bool d_tcp_parse_seq_8	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		struct rohc_decomp_crc *const	extr_crc,
		struct rohc_tcp_extr_bits *const	bits,
		size_t *const	rohc_hdr_len,
		bool *const	has_opts_list
	)

static

Parse the given seq_8 packet for the TCP profile.

Parameters

	context	The decompression context
	rohc_packet	The ROHC packet to decode
	rohc_length	The length of the ROHC packet
[out]	extr_crc	The CRC bits extracted from the ROHC header
[out]	bits	The bits extracted from the CO packet
[out]	rohc_hdr_len	The length of the ROHC header (in bytes)
[out]	has_opts_list	Whether the list TCP options is present after the CO packet

Returns: true if parsing was successful, false if packet was malformed

◆ d_tcp_reset_extr_bits()

static void d_tcp_reset_extr_bits	(	const struct rohc_decomp_ctxt *const	context,
		struct rohc_tcp_extr_bits *const	bits
	)

static

Reset the extracted bits for next parsing.

Parameters

	context	The decompression context
[out]	bits	The extracted bits to reset

◆ d_tcp_update_ctxt()

static void d_tcp_update_ctxt	(	struct rohc_decomp_ctxt *const	context,
		const struct rohc_tcp_decoded_values *const	decoded,
		const size_t	payload_len,
		bool *const	do_change_mode
	)

static

Update the decompression context with the infos of current packet.

Parameters

	context	The decompression context
	decoded	The decoded values to update in the context
	payload_len	The length of the packet payload (in bytes)
[out]	do_change_mode	Whether the profile context wants to change its operational mode or not

◆ tcp_detect_packet_type()

static rohc_packet_t tcp_detect_packet_type	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *const	rohc_packet,
		const size_t	rohc_length,
		const size_t	large_cid_len
	)

static

Detect the type of ROHC packet for the TCP profile.

Parameters

context	The decompression context
rohc_packet	The ROHC packet
rohc_length	The length of the ROHC packet
large_cid_len	The length of the optional large CID field

Returns: The packet type

Variable Documentation

◆ d_tcp_profile

const struct rohc_decomp_profile d_tcp_profile

Initial value:

=
{
        .id              = ROHC_PROFILE_TCP,
        .msn_max_bits    = 16,
        .new_context     = (rohc_decomp_new_context_t) d_tcp_create_from_pkt,
        .free_context    = (rohc_decomp_free_context_t) d_tcp_destroy,
        .detect_pkt_type = tcp_detect_packet_type,
        .parse_pkt       = (rohc_decomp_parse_pkt_t) d_tcp_parse_packet,
        .decode_bits     = (rohc_decomp_decode_bits_t) d_tcp_decode_bits,
        .build_hdrs      = (rohc_decomp_build_hdrs_t) d_tcp_build_hdrs,
        .update_ctxt     = (rohc_decomp_update_ctxt_t) d_tcp_update_ctxt,
        .attempt_repair  = (rohc_decomp_attempt_repair_t) d_tcp_attempt_repair,
        .get_sn          = d_tcp_get_msn
}

Define the decompression part of the TCP profile as described in the RFC 3095.

Functions

Variables

Detailed Description

Function Documentation

◆ d_tcp_attempt_repair()

◆ d_tcp_build_hdrs()

◆ d_tcp_build_ip_hdr()

◆ d_tcp_build_ip_hdrs()

◆ d_tcp_build_ipv4_hdr()

◆ d_tcp_build_ipv6_hdr()

◆ d_tcp_build_tcp_hdr()

◆ d_tcp_check_uncomp_crc()

◆ d_tcp_create_from_ctxt()

◆ d_tcp_create_from_pkt()

◆ d_tcp_decode_bits()

◆ d_tcp_decode_bits_ip_hdr()

◆ d_tcp_decode_bits_ip_hdrs()

◆ d_tcp_decode_bits_tcp_flags()

◆ d_tcp_decode_bits_tcp_hdr()

◆ d_tcp_decode_bits_tcp_opts()

◆ d_tcp_decode_opt_sack()

◆ d_tcp_decode_opt_ts_field()

◆ d_tcp_destroy()

◆ d_tcp_get_msn()

◆ d_tcp_parse_CO()

◆ d_tcp_parse_co_common()

◆ d_tcp_parse_ir()

◆ d_tcp_parse_ir_cr()

◆ d_tcp_parse_irdyn()

◆ d_tcp_parse_packet()

◆ d_tcp_parse_rnd_1()

◆ d_tcp_parse_rnd_2()

◆ d_tcp_parse_rnd_3()

◆ d_tcp_parse_rnd_4()

◆ d_tcp_parse_rnd_5()

◆ d_tcp_parse_rnd_6()

◆ d_tcp_parse_rnd_7()

◆ d_tcp_parse_rnd_8()

◆ d_tcp_parse_seq_1()

◆ d_tcp_parse_seq_2()

◆ d_tcp_parse_seq_3()

◆ d_tcp_parse_seq_4()

◆ d_tcp_parse_seq_5()

◆ d_tcp_parse_seq_6()

◆ d_tcp_parse_seq_7()

◆ d_tcp_parse_seq_8()

◆ d_tcp_reset_extr_bits()

◆ d_tcp_update_ctxt()

◆ tcp_detect_packet_type()

Variable Documentation

◆ d_tcp_profile
