ROHC compression context for the uncompressed profile. More...

#include "rohc_comp_internals.h"
#include "rohc_traces.h"
#include "rohc_traces_internal.h"
#include "rohc_debug.h"
#include "schemes/cid.h"
#include "crc.h"
#include <assert.h>

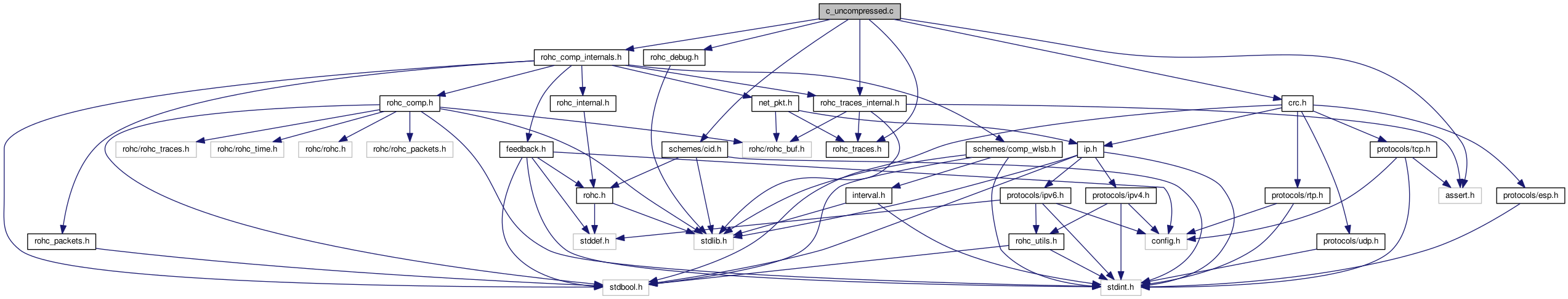

Include dependency graph for c_uncompressed.c:

Functions
static bool	c_uncompressed_create (struct rohc_comp_ctxt const context, const struct net_pkt const packet)
	Create a new Uncompressed context and initialize it thanks to the given IP packet. More...

static void	c_uncompressed_destroy (struct rohc_comp_ctxt *const context)
	Destroy the Uncompressed context. More...

static bool	c_uncompressed_check_profile (const struct rohc_comp const comp, const struct net_pkt const packet)
	Check if the given packet corresponds to the Uncompressed profile. More...

static bool	c_uncompressed_check_context (const struct rohc_comp_ctxt const context, const struct net_pkt const packet, size_t *const cr_score)
	Check if an IP packet belongs to the Uncompressed context. More...

static int	c_uncompressed_encode (struct rohc_comp_ctxt const context, const struct net_pkt const uncomp_pkt, uint8_t const rohc_pkt, const size_t rohc_pkt_max_len, rohc_packet_t const packet_type, size_t *const payload_offset)
	Encode an IP packet according to a pattern decided by several different factors. More...

static int	uncompressed_code_packet (struct rohc_comp_ctxt const context, const struct net_pkt const uncomp_pkt, uint8_t const rohc_pkt, const size_t rohc_pkt_max_len, rohc_packet_t const packet_type, size_t *const payload_offset)
	Build the ROHC packet to send. More...

static int	uncompressed_code_IR_packet (const struct rohc_comp_ctxt context, const struct net_pkt const uncomp_pkt, uint8_t const rohc_pkt, const size_t rohc_pkt_max_len, size_t const payload_offset)
	Build the IR packet. More...

static int	uncompressed_code_normal_packet (const struct rohc_comp_ctxt context, const struct net_pkt const uncomp_pkt, uint8_t const rohc_pkt, const size_t rohc_pkt_max_len, size_t const payload_offset)
	Build the Normal packet. More...

static bool	c_uncompressed_reinit_context (struct rohc_comp_ctxt *const context)
	Re-initialize a given context. More...

static bool	uncomp_feedback (struct rohc_comp_ctxt const context, const enum rohc_feedback_type feedback_type, const uint8_t const packet, const size_t packet_len, const uint8_t *const feedback_data, const size_t feedback_data_len)
	Update the profile when feedback is received. More...

static void	uncompressed_decide_state (struct rohc_comp_ctxt *const context, const struct rohc_ts pkt_time, const ip_version ip_vers)
	Decide the state that should be used for the next packet. More...

Variables
const struct rohc_comp_profile	c_uncompressed_profile
	Define the compression part of the Uncompressed profile as described in the RFC 3095. More...

Detailed Description

ROHC compression context for the uncompressed profile.

Author: Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com; Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Function Documentation

◆ c_uncompressed_check_context()

static bool c_uncompressed_check_context	(	const struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	packet,
		size_t *const	cr_score
	)

static

Check if an IP packet belongs to the Uncompressed context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

	context	The compression context
	packet	The packet to check
[out]	cr_score	The score of the context for Context Replication (CR)

Returns: Always return true to tell that the packet belongs to the context

◆ c_uncompressed_check_profile()

static bool c_uncompressed_check_profile	(	const struct rohc_comp *const	comp,
		const struct net_pkt *const	packet
	)

static

Check if the given packet corresponds to the Uncompressed profile.

There are no condition. If this function is called, the packet always matches the Uncompressed profile.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

comp	The ROHC compressor
packet	The packet to check

Returns

Whether the packet corresponds to the profile:

true if the packet corresponds to the profile,
false if the packet does not correspond to the profile

◆ c_uncompressed_create()

static bool c_uncompressed_create	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	packet
	)

static

Create a new Uncompressed context and initialize it thanks to the given IP packet.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
packet	The packet given to initialize the new context

Returns: true if successful, false otherwise

◆ c_uncompressed_destroy()

static void c_uncompressed_destroy ( struct rohc_comp_ctxt *const context )

static

Destroy the Uncompressed context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context The compression context

◆ c_uncompressed_encode()

static int c_uncompressed_encode	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	uncomp_pkt,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		rohc_packet_t *const	packet_type,
		size_t *const	payload_offset
	)

static

Encode an IP packet according to a pattern decided by several different factors.

Decide state
Code packet

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
uncomp_pkt	The uncompressed packet to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	OUT: The type of ROHC packet that is created
payload_offset	OUT: The offset for the payload in the IP packet

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ c_uncompressed_reinit_context()

static bool c_uncompressed_reinit_context ( struct rohc_comp_ctxt *const context )

static

Re-initialize a given context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context The compression context

Returns: true in case of success, false otherwise

◆ uncomp_feedback()

static bool uncomp_feedback	(	struct rohc_comp_ctxt *const	context,
		const enum rohc_feedback_type	feedback_type,
		const uint8_t *const	packet,
		const size_t	packet_len,
		const uint8_t *const	feedback_data,
		const size_t	feedback_data_len
	)

static

Update the profile when feedback is received.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
feedback_type	The feedback type among ROHC_FEEDBACK_1 and ROHC_FEEDBACK_2
packet	The whole feedback packet with CID bits
packet_len	The length of the whole feedback packet with CID bits
feedback_data	The feedback data without the CID bits
feedback_data_len	The length of the feedback data without the CID bits

Returns: true if the feedback was successfully handled, false if the feedback could not be taken into account

◆ uncompressed_code_IR_packet()

static int uncompressed_code_IR_packet	(	const struct rohc_comp_ctxt *	context,
		const struct net_pkt *const	uncomp_pkt,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		size_t *const	payload_offset
	)

static

Build the IR packet.

 IR packet (5.10.1)

     0   1   2   3   4   5   6   7
    --- --- --- --- --- --- --- ---
 1 :         Add-CID octet         : if for small CIDs and (CID != 0)
   +---+---+---+---+---+---+---+---+
 2 | 1   1   1   1   1   1   0 |res|
   +---+---+---+---+---+---+---+---+
   :                               :
 3 /    0-2 octets of CID info     / 1-2 octets if for large CIDs
   :                               :
   +---+---+---+---+---+---+---+---+
 4 |          Profile = 0          | 1 octet
   +---+---+---+---+---+---+---+---+
 5 |              CRC              | 1 octet
   +---+---+---+---+---+---+---+---+
   :                               : (optional)
 6 /           IP packet           / variable length
   :                               :
    --- --- --- --- --- --- --- ---

Part 6 is not managed by this function.

Parameters

context	The compression context
uncomp_pkt	The uncompressed packet to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
payload_offset	OUT: the offset of the payload in the buffer

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ uncompressed_code_normal_packet()

static int uncompressed_code_normal_packet	(	const struct rohc_comp_ctxt *	context,
		const struct net_pkt *const	uncomp_pkt,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		size_t *const	payload_offset
	)

static

Build the Normal packet.

 Normal packet (5.10.2)

     0   1   2   3   4   5   6   7
    --- --- --- --- --- --- --- ---
 1 :         Add-CID octet         : if for small CIDs and (CID != 0)
   +---+---+---+---+---+---+---+---+
 2 |   first octet of IP packet    |
   +---+---+---+---+---+---+---+---+
   :                               :
 3 /    0-2 octets of CID info     / 1-2 octets if for large CIDs
   :                               :
   +---+---+---+---+---+---+---+---+
   |                               |
 4 /      rest of IP packet        / variable length
   |                               |
   +---+---+---+---+---+---+---+---+

Part 4 is not managed by this function.

Parameters

context	The compression context
uncomp_pkt	The uncompressed packet to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
payload_offset	OUT: the offset of the payload in the buffer

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ uncompressed_code_packet()

static int uncompressed_code_packet	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	uncomp_pkt,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		rohc_packet_t *const	packet_type,
		size_t *const	payload_offset
	)

static

Build the ROHC packet to send.

Parameters

context	The compression context
uncomp_pkt	The uncompressed packet to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	OUT: The type of ROHC packet that is created
payload_offset	OUT: the offset of the payload in the buffer

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ uncompressed_decide_state()

static void uncompressed_decide_state	(	struct rohc_comp_ctxt *const	context,
		const struct rohc_ts	pkt_time,
		const ip_version	ip_vers
	)

static

Decide the state that should be used for the next packet.

Parameters

context	The compression context
pkt_time	The time of packet arrival
ip_vers	The IP version of the packet among IPV4, IPV6, IP_UNKNOWN, IPV4_MALFORMED, or IPV6_MALFORMED.

Variable Documentation

◆ c_uncompressed_profile

const struct rohc_comp_profile c_uncompressed_profile

Initial value:

=
{
        .id             = ROHC_PROFILE_UNCOMPRESSED,
        .protocol       = 0,
        .create         = c_uncompressed_create,
        .destroy        = c_uncompressed_destroy,
        .check_profile  = c_uncompressed_check_profile,
        .check_context  = c_uncompressed_check_context,
        .encode         = c_uncompressed_encode,
        .reinit_context = c_uncompressed_reinit_context,
        .feedback       = uncomp_feedback,
}

Define the compression part of the Uncompressed profile as described in the RFC 3095.
