rohc_comp Struct Reference

The ROHC compressor. More...

#include <rohc_comp_internals.h>

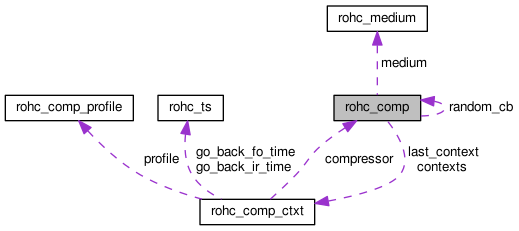

Collaboration diagram for rohc_comp:
Collaboration graph
[legend]

Data Fields

struct rohc_medium medium

rohc_comp_features_t features

struct rohc_comp_ctxtcontexts

size_t num_contexts_used

bool enabled_profiles [C_NUM_PROFILES]

uint8_t crc_table_3 [256]

uint8_t crc_table_7 [256]

uint8_t crc_table_8 [256]

uint8_t rru [ROHC_MAX_MRRU]

size_t rru_off

size_t rru_len

rohc_rtp_detection_callback_t rtp_callback

void * rtp_private

int num_packets

int total_uncompressed_size

int total_compressed_size

struct rohc_comp_ctxtlast_context

rohc_comp_random_cb_t random_cb

void * random_cb_ctxt

size_t wlsb_window_width

size_t periodic_refreshes_ir_timeout_pkts

uint64_t periodic_refreshes_ir_timeout_time

size_t periodic_refreshes_fo_timeout_pkts

uint64_t periodic_refreshes_fo_timeout_time

size_t mrru

int connection_type

size_t list_trans_nr

rohc_trace_callback2_t trace_callback

void * trace_callback_priv


Detailed Description

The ROHC compressor.

Field Documentation

◆ connection_type

int rohc_comp::connection_type

The connection type (currently not used)

◆ contexts

struct rohc_comp_ctxt* rohc_comp::contexts

The array of compression contexts that use the compressor

◆ crc_table_3

uint8_t rohc_comp::crc_table_3[256]

The table to enable fast CRC-3 computation

◆ crc_table_7

uint8_t rohc_comp::crc_table_7[256]

The table to enable fast CRC-7 computation

◆ crc_table_8

uint8_t rohc_comp::crc_table_8[256]

The table to enable fast CRC-8 computation

◆ enabled_profiles

bool rohc_comp::enabled_profiles[C_NUM_PROFILES]

Which profiles are enabled and with one are not?

◆ features

rohc_comp_features_t rohc_comp::features

Enabled/disabled features for the compressor

◆ last_context

struct rohc_comp_ctxt* rohc_comp::last_context

The last context used by the compressor

◆ list_trans_nr

size_t rohc_comp::list_trans_nr

The number of uncompressed transmissions for list compression (L)

◆ medium

struct rohc_medium rohc_comp::medium

The medium associated with the decompressor

◆ mrru

size_t rohc_comp::mrru

Maximum Reconstructed Reception Unit

◆ num_contexts_used

size_t rohc_comp::num_contexts_used

The number of compression contexts in use in the array

◆ num_packets

int rohc_comp::num_packets

The number of sent packets

◆ periodic_refreshes_fo_timeout_pkts

size_t rohc_comp::periodic_refreshes_fo_timeout_pkts

The maximal number of packets sent in > FO states (= SO state) before changing back the state to FO (periodic refreshes)

◆ periodic_refreshes_fo_timeout_time

uint64_t rohc_comp::periodic_refreshes_fo_timeout_time

The maximal delay spent in > FO states (= SO state) before changing back the state to FO (periodic refreshes)

◆ periodic_refreshes_ir_timeout_pkts

size_t rohc_comp::periodic_refreshes_ir_timeout_pkts

The maximal number of packets sent in > IR states (= FO and SO states) before changing back the state to IR (periodic refreshes)

◆ periodic_refreshes_ir_timeout_time

uint64_t rohc_comp::periodic_refreshes_ir_timeout_time

The maximal delay spent in > IR states (= FO and SO states) before changing back the state to IR (periodic refreshes)

◆ random_cb

rohc_comp_random_cb_t rohc_comp::random_cb

The user-defined callback for random numbers

◆ random_cb_ctxt

void* rohc_comp::random_cb_ctxt

Private data that will be given to the callback for random numbers

◆ rru

uint8_t rohc_comp::rru[ROHC_MAX_MRRU]

The remaining bytes of the Reconstructed Reception Unit (RRU) waiting to be split into segments

◆ rru_len

size_t rohc_comp::rru_len

The number of the remaining bytes in the RRU buffer

◆ rru_off

size_t rohc_comp::rru_off

The offset of the remaining bytes in the RRU buffer

◆ rtp_callback

rohc_rtp_detection_callback_t rohc_comp::rtp_callback

The callback function used to detect RTP packet

◆ rtp_private

void* rohc_comp::rtp_private

Pointer to an external memory area provided/used by the callback user

◆ total_compressed_size

int rohc_comp::total_compressed_size

The size of all the sent compressed ROHC packets

◆ total_uncompressed_size

int rohc_comp::total_uncompressed_size

The size of all the received uncompressed IP packets

◆ trace_callback

rohc_trace_callback2_t rohc_comp::trace_callback

The callback function used to manage traces

◆ trace_callback_priv

void* rohc_comp::trace_callback_priv

The private context of the callback function used to manage traces

◆ wlsb_window_width

size_t rohc_comp::wlsb_window_width

The width of the W-LSB sliding window


The documentation for this struct was generated from the following file:
