ROHC CRC routines. More...

#include "crc.h"
#include "rohc.h"
#include "protocols/udp.h"
#include "protocols/rtp.h"
#include "protocols/esp.h"
#include <stdlib.h>
#include <assert.h>

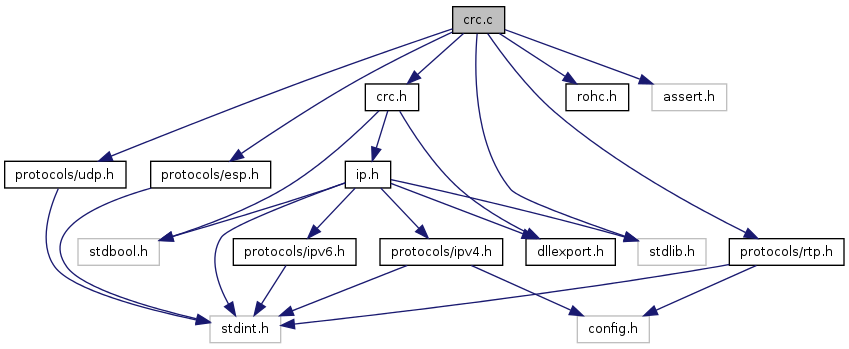

Include dependency graph for crc.c:

Functions
static unsigned char static unsigned char static unsigned char static unsigned char static unsigned char int	crc_get_polynom (int type)
	Get the polynom for the given CRC type.
void	crc_init_table (unsigned char *table, unsigned char poly)
	Initialize a CRC table given a 256-byte table and the polynom to use.
bool	rohc_crc_init_table (unsigned char *const table, const rohc_crc_type_t crc_type)
	Initialize a CRC table given a 256-byte table and the CRC type to use.
unsigned int	crc_calculate (const rohc_crc_type_t crc_type, const unsigned char const data, const size_t length, const unsigned char init_val, const unsigned char const crc_table)
	Calculate the checksum for the given data.
uint32_t	crc_calc_fcs32 (const unsigned char *const data, const size_t length, const uint32_t init_val)
	Optimized CRC FCS-32 calculation using a table.
unsigned int	compute_crc_static (const unsigned char const ip, const unsigned char const ip2, const unsigned char const next_header, const rohc_crc_type_t crc_type, const unsigned int init_val, const unsigned char const crc_table)
	Compute the CRC-STATIC part of an IP header.
unsigned int	compute_crc_dynamic (const unsigned char const ip, const unsigned char const ip2, const unsigned char const next_header, const rohc_crc_type_t crc_type, const unsigned int init_val, const unsigned char const crc_table)
	Compute the CRC-DYNAMIC part of an IP header.
unsigned int	udp_compute_crc_static (const unsigned char const ip, const unsigned char const ip2, const unsigned char const next_header, const rohc_crc_type_t crc_type, const unsigned int init_val, const unsigned char const crc_table)
	Compute the CRC-STATIC part of an UDP or UDP-Lite header.
unsigned int	udp_compute_crc_dynamic (const unsigned char const ip, const unsigned char const ip2, const unsigned char const next_header, const rohc_crc_type_t crc_type, const unsigned int init_val, const unsigned char const crc_table)
	Compute the CRC-DYNAMIC part of an UDP or UDP-Lite header.
unsigned int	esp_compute_crc_static (const unsigned char const ip, const unsigned char const ip2, const unsigned char const next_header, const rohc_crc_type_t crc_type, const unsigned int init_val, const unsigned char const crc_table)
	Compute the CRC-STATIC part of an ESP header.
unsigned int	esp_compute_crc_dynamic (const unsigned char const ip, const unsigned char const ip2, const unsigned char const next_header, const rohc_crc_type_t crc_type, const unsigned int init_val, const unsigned char const crc_table)
	Compute the CRC-DYNAMIC part of an ESP header.
unsigned int	rtp_compute_crc_static (const unsigned char const ip, const unsigned char const ip2, const unsigned char const next_header, const rohc_crc_type_t crc_type, const unsigned int init_val, const unsigned char const crc_table)
	Compute the CRC-STATIC part of a RTP header.
unsigned int	rtp_compute_crc_dynamic (const unsigned char const ip, const unsigned char const ip2, const unsigned char const next_header, const rohc_crc_type_t crc_type, const unsigned int init_val, const unsigned char const crc_table)
	Compute the CRC-DYNAMIC part of a RTP header.
Variables
unsigned char	crc_table_8 [256]
unsigned char	crc_table_7 [256]
unsigned char	crc_table_6 [256]
unsigned char	crc_table_3 [256]
unsigned char	crc_table_2 [256]
static unsigned int static unsigned int static unsigned char static bool	warn_unused_result

Detailed Description

ROHC CRC routines.

Author:: Didier Barvaux <didier.barvaux@toulouse.viveris.com>; The hackers from ROHC for Linux; Didier Barvaux <didier@barvaux.org>; FWX <rohc_team@dialine.fr>

Function Documentation

unsigned int compute_crc_dynamic	(	const unsigned char *const	ip,
		const unsigned char *const	ip2,
		const unsigned char *const	next_header,
		const rohc_crc_type_t	crc_type,
		const unsigned int	init_val,
		const unsigned char *const	crc_table
	)

Compute the CRC-DYNAMIC part of an IP header.

Concerned fields are:

bytes 3-4, 5-6, 11-12 in original IPv4 header
bytes 5-6 in original IPv6 header

Parameters:

ip	The outer IP packet
ip2	The inner IP packet if there is 2 IP headers, NULL otherwise
next_header	The next header located after the IP header(s)
crc_type	The type of CRC
init_val	The initial CRC value
crc_table	The pre-computed table for fast CRC computation

Returns:: The checksum

References ipv4_hdr::check, crc_calculate(), get_ip_version(), IPV4, ipv4_hdr::tot_len, and version.

Referenced by c_generic_create(), d_generic_create(), esp_compute_crc_dynamic(), and udp_compute_crc_dynamic().

unsigned int compute_crc_static	(	const unsigned char *const	ip,
		const unsigned char *const	ip2,
		const unsigned char *const	next_header,
		const rohc_crc_type_t	crc_type,
		const unsigned int	init_val,
		const unsigned char *const	crc_table
	)

Compute the CRC-STATIC part of an IP header.

Concerned fields are: all fields expect those for CRC-DYNAMIC

bytes 1-2, 7-10, 13-20 in original IPv4 header
bytes 1-4, 7-40 in original IPv6 header

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

ip	The outer IP packet
ip2	The inner IP packet if there is 2 IP headers, NULL otherwise
next_header	The next header located after the IP header(s)
crc_type	The type of CRC
init_val	The initial CRC value
crc_table	The pre-computed table for fast CRC computation

Returns:: The checksum

References crc_calculate(), ipv4_hdr::frag_off, get_ip_version(), IPV4, ipv4_hdr::saddr, and version.

Referenced by c_generic_create(), d_generic_create(), esp_compute_crc_static(), and udp_compute_crc_static().

uint32_t crc_calc_fcs32	(	const unsigned char *const	data,
		const size_t	length,
		const uint32_t	init_val
	)

Optimized CRC FCS-32 calculation using a table.

Parameters:

data	The data to compute the CRC for
length	The size of the data
init_val	The initial value of the CRC

Returns:: The 32-bit CRC

Referenced by rohc_compress2().

unsigned int crc_calculate	(	const rohc_crc_type_t	crc_type,
		const unsigned char *const	data,
		const size_t	length,
		const unsigned char	init_val,
		const unsigned char *const	crc_table
	)

Calculate the checksum for the given data.

Parameters:

crc_type	The CRC type
data	The data to calculate the checksum on
length	The length of the data
init_val	The initial CRC value
crc_table	The pre-computed table for fast CRC computation

Returns:: The checksum

References ROHC_CRC_TYPE_2, ROHC_CRC_TYPE_3, ROHC_CRC_TYPE_6, ROHC_CRC_TYPE_7, and ROHC_CRC_TYPE_8.

Referenced by c_generic_feedback(), code_IR_DYN_packet(), code_IR_packet(), compute_crc_dynamic(), compute_crc_static(), esp_compute_crc_dynamic(), esp_compute_crc_static(), f_wrap_feedback(), rtp_compute_crc_dynamic(), rtp_compute_crc_static(), udp_compute_crc_dynamic(), and udp_compute_crc_static().

unsigned int esp_compute_crc_dynamic	(	const unsigned char *const	ip,
		const unsigned char *const	ip2,
		const unsigned char *const	next_header,
		const rohc_crc_type_t	crc_type,
		const unsigned int	init_val,
		const unsigned char *const	crc_table
	)

Compute the CRC-DYNAMIC part of an ESP header.

Concerned fields are:

bytes 5-8 in original ESP header

Parameters:

ip	The outer IP packet
ip2	The inner IP packet if there is 2 IP headers, NULL otherwise
next_header	The next header located after the IP header(s)
crc_type	The type of CRC
init_val	The initial CRC value
crc_table	The pre-computed table for fast CRC computation

Returns:: The checksum

References compute_crc_dynamic(), crc_calculate(), and esphdr::sn.

unsigned int esp_compute_crc_static	(	const unsigned char *const	ip,
		const unsigned char *const	ip2,
		const unsigned char *const	next_header,
		const rohc_crc_type_t	crc_type,
		const unsigned int	init_val,
		const unsigned char *const	crc_table
	)

Compute the CRC-STATIC part of an ESP header.

Concerned fields are: all fields expect those for CRC-DYNAMIC

bytes 1-4 in original ESP header

Parameters:

ip	The outer IP packet
ip2	The inner IP packet if there is 2 IP headers, NULL otherwise
next_header	The next header located after the IP header(s)
crc_type	The type of CRC
init_val	The initial CRC value
crc_table	The pre-computed table for fast CRC computation

Returns:: The checksum

References compute_crc_static(), crc_calculate(), and esphdr::spi.

bool rohc_crc_init_table	(	unsigned char *const	table,
		const rohc_crc_type_t	crc_type
	)

Initialize a CRC table given a 256-byte table and the CRC type to use.

Parameters:

table	IN/OUT: The 256-byte table to initialize
crc_type	The type of CRC to initialize the table for

Returns:: true in case of success, false in case of failure

Referenced by rohc_alloc_compressor(), and rohc_alloc_decompressor().

unsigned int rtp_compute_crc_dynamic	(	const unsigned char *const	ip,
		const unsigned char *const	ip2,
		const unsigned char *const	next_header,
		const rohc_crc_type_t	crc_type,
		const unsigned int	init_val,
		const unsigned char *const	crc_table
	)

Compute the CRC-DYNAMIC part of a RTP header.

Concerned fields are:

bytes 2, 3-4, 5-8 in original RTP header

Parameters:

ip	The outer IP packet
ip2	The inner IP packet if there is 2 IP headers, NULL otherwise
next_header	The next header located after the IP header(s)
crc_type	The type of CRC
init_val	The initial CRC value
crc_table	The pre-computed table for fast CRC computation

Returns:: The checksum

References crc_calculate(), and udp_compute_crc_dynamic().

Referenced by d_rtp_create().

unsigned int rtp_compute_crc_static	(	const unsigned char *const	ip,
		const unsigned char *const	ip2,
		const unsigned char *const	next_header,
		const rohc_crc_type_t	crc_type,
		const unsigned int	init_val,
		const unsigned char *const	crc_table
	)

Compute the CRC-STATIC part of a RTP header.

Concerned fields are: all fields expect those for CRC-DYNAMIC

bytes 1, 9-12 (and CSRC list) in original RTP header

Parameters:

ip	The outer IP packet
ip2	The inner IP packet if there is 2 IP headers, NULL otherwise
next_header	The next header located after the IP header(s)
crc_type	The type of CRC
init_val	The initial CRC value
crc_table	The pre-computed table for fast CRC computation

Returns:: The checksum

References crc_calculate(), and udp_compute_crc_static().

Referenced by d_rtp_create().

unsigned int udp_compute_crc_dynamic	(	const unsigned char *const	ip,
		const unsigned char *const	ip2,
		const unsigned char *const	next_header,
		const rohc_crc_type_t	crc_type,
		const unsigned int	init_val,
		const unsigned char *const	crc_table
	)

Compute the CRC-DYNAMIC part of an UDP or UDP-Lite header.

Concerned fields are:

bytes 5-6, 7-8 in original UDP header

Parameters:

ip	The outer IP packet
ip2	The inner IP packet if there is 2 IP headers, NULL otherwise
next_header	The next header located after the IP header(s)
crc_type	The type of CRC
init_val	The initial CRC value
crc_table	The pre-computed table for fast CRC computation

Returns:: The checksum

References compute_crc_dynamic(), crc_calculate(), and udphdr::len.

Referenced by d_udp_create(), d_udp_lite_create(), and rtp_compute_crc_dynamic().

unsigned int udp_compute_crc_static	(	const unsigned char *const	ip,
		const unsigned char *const	ip2,
		const unsigned char *const	next_header,
		const rohc_crc_type_t	crc_type,
		const unsigned int	init_val,
		const unsigned char *const	crc_table
	)

Compute the CRC-STATIC part of an UDP or UDP-Lite header.

Concerned fields are: all fields expect those for CRC-DYNAMIC

bytes 1-4 in original UDP header

Parameters:

ip	The outer IP packet
ip2	The inner IP packet if there is 2 IP headers, NULL otherwise
next_header	The next header located after the IP header(s)
crc_type	The type of CRC
init_val	The initial CRC value
crc_table	The pre-computed table for fast CRC computation

Returns:: The checksum

References compute_crc_static(), crc_calculate(), and udphdr::source.

Referenced by d_udp_create(), d_udp_lite_create(), and rtp_compute_crc_static().

Variable Documentation

unsigned char crc_table_2[256]

unsigned char ROHC_EXPORT crc_table_3 ( )

The table to enable fast CRC-3 computation

Deprecated:: please do not use this variable anymore

unsigned char ROHC_EXPORT crc_table_6 ( )

The table to enable fast CRC-6 computation

Deprecated:: please do not use this variable anymore

unsigned char ROHC_EXPORT crc_table_7 ( )

The table to enable fast CRC-7 computation

Deprecated:: please do not use this variable anymore

unsigned char ROHC_EXPORT crc_table_8 ( )

The table to enable fast CRC-8 computation

Deprecated:: please do not use this variable anymore
