d_generic.h File Reference

ROHC generic decompression context for IP-only, UDP and UDP Lite profiles. More...

#include "rohc_decomp.h"
#include "rohc_decomp_internals.h"
#include "rohc_packets.h"
#include "comp_list.h"
#include "lsb_decode.h"
#include "ip_id_offset_decode.h"
#include "ip.h"
#include "crc.h"
#include <stddef.h>
#include <stdbool.h>

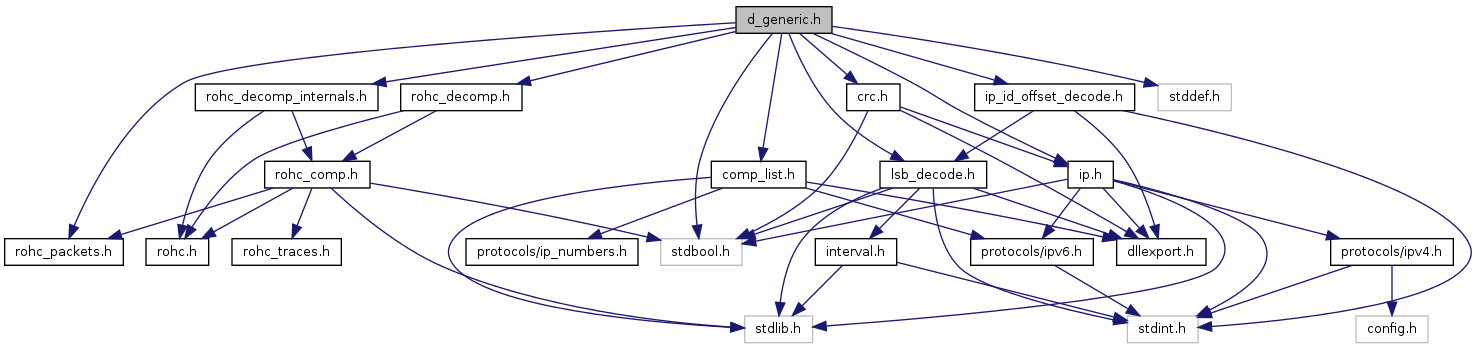

Include dependency graph for d_generic.h:

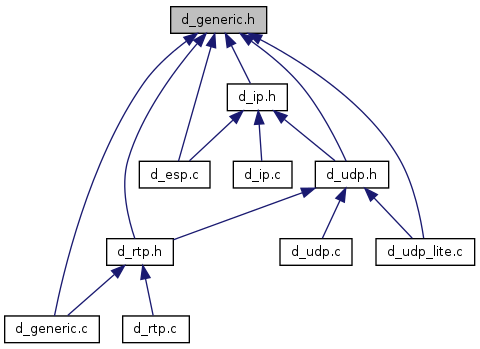

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rohc_extr_ip_bits
struct	rohc_extr_bits
	The bits extracted from ROHC UO* base headers. More...
struct	rohc_decoded_ip_values
struct	rohc_decoded_values
	The values decoded from the bits extracted from ROHC header. More...
struct	d_generic_changes
	Store information about an IP header between the different decompressions of IP packets. More...
struct	d_generic_context
	The generic decompression context. More...
struct	list_decomp
	The list decompressor. More...
Defines
#define	MAX_ITEM   15
#define	LIST_COMP_WINDOW   100
#define	L   5
Functions
void *	d_generic_create (const struct d_context *const context, rohc_trace_callback_t trace_callback, const int profile_id) __attribute__((nonnull(1
void	d_generic_destroy (void *const context) __attribute__((nonnull(1)))
	Destroy the context.
int	d_generic_decode (struct rohc_decomp *decomp, struct d_context *context, const unsigned char *const rohc_packet, const unsigned int rohc_length, const size_t add_cid_len, const size_t large_cid_len, unsigned char *dest)
	Decode one IR, IR-DYN or UO* packet.
int	d_generic_get_sn (struct d_context *context)
	Get the reference SN value of the context.
Variables
void	warn_unused_result

---

Detailed Description

ROHC generic decompression context for IP-only, UDP and UDP Lite profiles.

Author:

Didier Barvaux <didier.barvaux@toulouse.viveris.com>

Didier Barvaux <didier@barvaux.org>

The hackers from ROHC for Linux

David Moreau from TAS

---

Define Documentation

#define L   5

#define LIST_COMP_WINDOW   100

Referenced by d_generic_destroy().

#define MAX_ITEM   15

---

Function Documentation

void* d_generic_create	(	const struct d_context *const	context,
		rohc_trace_callback_t	trace_callback,
		const int	profile_id
	)

int d_generic_decode	(	struct rohc_decomp *	decomp,
		struct d_context *	context,
		const unsigned char *const	rohc_packet,
		const unsigned int	rohc_length,
		const size_t	add_cid_len,
		const size_t	large_cid_len,
		unsigned char *	dest
	)

Decode one IR, IR-DYN or UO* packet.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

decomp	The ROHC decompressor
context	The decompression context
rohc_packet	The ROHC packet to decode
rohc_length	The length of the ROHC packet
add_cid_len	The length of the optional Add-CID field
large_cid_len	The length of the optional large CID field
dest	OUT: The decoded IP packet

Returns:

The length of the uncompressed IP packet or ROHC_ERROR if an error occurs or ROHC_ERROR_CRC if a CRC error occurs

References dest, d_generic_context::detect_packet_type, d_profile::id, NO_CONTEXT, PACKET_IR, PACKET_IR_DYN, d_generic_context::packet_type, PACKET_UO_0, PACKET_UO_1, PACKET_UO_1_ID, PACKET_UO_1_RTP, PACKET_UO_1_TS, PACKET_UOR_2, PACKET_UOR_2_ID, PACKET_UOR_2_RTP, PACKET_UOR_2_TS, d_context::profile, rohc_decomp_debug, ROHC_ERROR, rohc_get_packet_descr(), ROHC_TRACE_DECOMP, rohc_warning, d_context::specific, d_context::state, and STATIC_CONTEXT.

Referenced by d_udp_lite_decode().

void d_generic_destroy

(

void *const

context

)

Destroy the context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context

The compression context

References list_decomp::free_table, d_generic_context::inner_ip_changes, d_generic_context::inner_ip_id_offset_ctxt, ip_id_offset_free(), LIST_COMP_WINDOW, d_generic_context::list_decomp1, d_generic_context::list_decomp2, list_destroy(), list_decomp::list_table, d_generic_context::outer_ip_changes, d_generic_context::outer_ip_id_offset_ctxt, d_generic_context::specific, and zfree.

Referenced by d_rtp_create(), d_udp_create(), and d_udp_lite_create().

int d_generic_get_sn

(

struct d_context *

context

)

Get the reference SN value of the context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context

The decompression context

Returns:

The reference SN value

References rohc_lsb_get_ref(), d_generic_context::sn_lsb_ctxt, and d_context::specific.

---

Variable Documentation

void warn_unused_result
