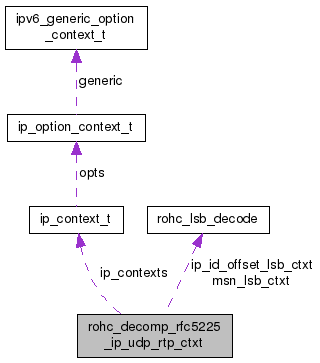

Collaboration diagram for rohc_decomp_rfc5225_ip_udp_rtp_ctxt:
Data Fields | |
| struct rohc_lsb_decode | msn_lsb_ctxt |
| struct rohc_lsb_decode | ip_id_offset_lsb_ctxt |
| rohc_reordering_offset_t | reorder_ratio |
| size_t | ip_contexts_nr |
| ip_context_t | ip_contexts [ROHC_MAX_IP_HDRS] |
| uint16_t | udp_sport |
| uint16_t | udp_dport |
| bool | udp_checksum_used |
| uint32_t | rtp_ssrc |
| uint8_t | rtp_pad |
| uint8_t | rtp_ext |
| uint8_t | rtp_m |
| uint8_t | rtp_pt |
| uint32_t | rtp_ts |
Detailed Description
Define the ROHCv2 IP/UDP/RTP part of the decompression profile context
Field Documentation
◆ ip_contexts
| ip_context_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::ip_contexts[ROHC_MAX_IP_HDRS] |
◆ ip_contexts_nr
| size_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::ip_contexts_nr |
◆ ip_id_offset_lsb_ctxt
| struct rohc_lsb_decode rohc_decomp_rfc5225_ip_udp_rtp_ctxt::ip_id_offset_lsb_ctxt |
The LSB decoding context of innermost IP-ID offset
◆ msn_lsb_ctxt
| struct rohc_lsb_decode rohc_decomp_rfc5225_ip_udp_rtp_ctxt::msn_lsb_ctxt |
The LSB decoding context of MSN
◆ reorder_ratio
| rohc_reordering_offset_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::reorder_ratio |
The reorder ratio that compressor sent to decompressor
◆ rtp_ext
| uint8_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::rtp_ext |
The RTP extension
◆ rtp_m
| uint8_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::rtp_m |
The RTP Marker
◆ rtp_pad
| uint8_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::rtp_pad |
The RTP padding
◆ rtp_pt
| uint8_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::rtp_pt |
The RTP Payload Type (PT)
◆ rtp_ssrc
| uint32_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::rtp_ssrc |
The RTP SSRC
◆ rtp_ts
| uint32_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::rtp_ts |
The RTP TimeStamp (TS)
◆ udp_checksum_used
| bool rohc_decomp_rfc5225_ip_udp_rtp_ctxt::udp_checksum_used |
Whether the UDP checksum is used or not
◆ udp_dport
| uint16_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::udp_dport |
The UDP destination port
◆ udp_sport
| uint16_t rohc_decomp_rfc5225_ip_udp_rtp_ctxt::udp_sport |
The UDP source port
The documentation for this struct was generated from the following file:
