rohc_comp_internals.h File Reference

Internal structures for ROHC compression. More...

#include "rohc_internal.h"
#include "rohc_traces_internal.h"
#include "rohc_packets.h"
#include "rohc_fingerprint.h"
#include "rohc_comp.h"
#include "schemes/comp_wlsb.h"
#include "protocols/uncomp_pkt_hdrs.h"
#include "feedback.h"
#include "hashtable.h"
#include <stdbool.h>

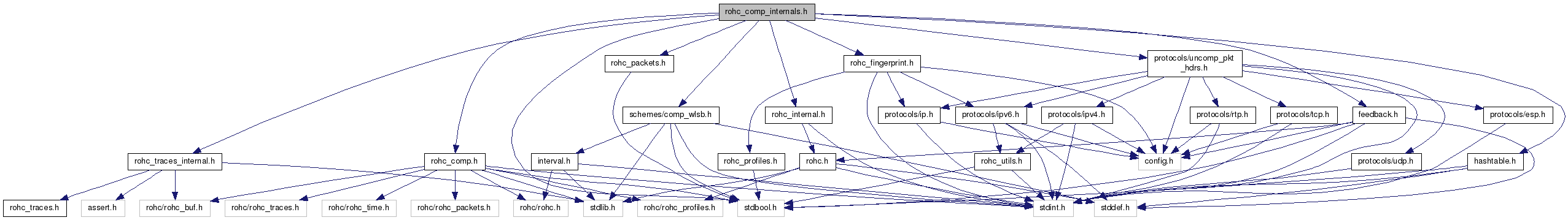

Include dependency graph for rohc_comp_internals.h:

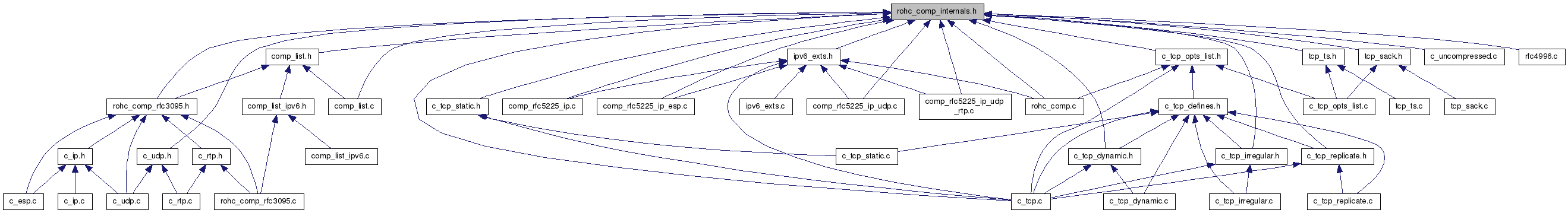

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rohc_comp
	The ROHC compressor. More...
struct	rohc_comp_profile
	The ROHC compression profile. More...
struct	rohc_comp_ctxt
	The ROHC compression context. More...

Macros
#define	ROHC_OA_REPEAT_DEFAULT   4U
#define	CHANGE_TO_IR_COUNT   1700
#define	CHANGE_TO_IR_TIME   1000U
#define	CHANGE_TO_FO_COUNT   700
#define	CHANGE_TO_FO_TIME   500U
#define	rohc_comp_warn(context, format, ...)
#define	rohc_comp_debug(context, format, ...)
#define	rohc_comp_dump_buf(context, descr, buf, buf_len)

Functions
void	rohc_comp_change_mode (struct rohc_comp_ctxt *const context, const rohc_mode_t new_mode)
	Change the mode of the context. More...
void	rohc_comp_change_state (struct rohc_comp_ctxt *const context, const rohc_comp_state_t new_state)
	Change the state of the context. More...
bool	rohc_comp_reinit_context (struct rohc_comp_ctxt *const context)
	Re-initialize the given context. More...
bool	rohc_comp_feedback_parse_opts (const struct rohc_comp_ctxt *const context, const uint8_t *const packet, const size_t packet_len, const uint8_t *const feedback_data, const size_t feedback_data_len, size_t opts_present[ROHC_FEEDBACK_OPT_MAX], uint32_t *const sn_bits, size_t *const sn_bits_nr, const rohc_feedback_crc_t crc_type, uint8_t crc_in_packet, size_t crc_pos_from_end)
	Parse FEEDBACK-2 options. More...

Detailed Description

Internal structures for ROHC compression.

Author

Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com

Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Macro Definition Documentation

CHANGE_TO_FO_COUNT

#define CHANGE_TO_FO_COUNT   700

The default maximal number of packets sent in > FO states (= SO state) before changing back the state to FO (periodic refreshes)

CHANGE_TO_FO_TIME

#define CHANGE_TO_FO_TIME   500U

The default maximal delay (in ms) spent in > FO states (= SO state) before changing back the state to FO (periodic refreshes)

CHANGE_TO_IR_COUNT

#define CHANGE_TO_IR_COUNT   1700

The default maximal number of packets sent in > IR states (= FO and SO states) before changing back the state to IR (periodic refreshes)

CHANGE_TO_IR_TIME

#define CHANGE_TO_IR_TIME   1000U

The default maximal delay (in ms) spent in > IR states (= FO and SO states) before changing back the state to IR (periodic refreshes)

rohc_comp_debug

#define rohc_comp_debug	(		context,
			format,
			...
	)

Value:

rohc_debug((context)->compressor, ROHC_TRACE_COMP, \
                   (context)->profile->id, \
                   format, ##__VA_ARGS__)

Print a debug trace for the given compression context

rohc_comp_dump_buf

#define rohc_comp_dump_buf	(		context,
			descr,
			buf,
			buf_len
	)

Value:

do { \
                if(((context)->compressor->features & ROHC_COMP_FEATURE_DUMP_PACKETS) != 0) { \
                        rohc_dump_buf((context)->compressor->trace_callback, \
                                      (context)->compressor->trace_callback_priv, \
                                      ROHC_TRACE_COMP, ROHC_TRACE_DEBUG, \
                                      descr, buf, buf_len); \
                } \
        } while(0)

Dump a buffer for the given compression context

rohc_comp_warn

#define rohc_comp_warn	(		context,
			format,
			...
	)

Value:

rohc_warning((context)->compressor, ROHC_TRACE_COMP, \
                     (context)->profile->id, \
                     format, ##__VA_ARGS__)

Print a warning trace for the given compression context

ROHC_OA_REPEAT_DEFAULT

#define ROHC_OA_REPEAT_DEFAULT   4U

The minimal number of repetitions for the Optimistic Approach

Function Documentation

rohc_comp_change_mode()

void rohc_comp_change_mode	(	struct rohc_comp_ctxt *const	context,
		const rohc_mode_t	new_mode
	)

Change the mode of the context.

Parameters

context	The compression context
new_mode	The new mode the context must enter in

rohc_comp_change_state()

void rohc_comp_change_state	(	struct rohc_comp_ctxt *const	context,
		const rohc_comp_state_t	new_state
	)

Change the state of the context.

Parameters

context	The compression context
new_state	The new state the context must enter in

rohc_comp_feedback_parse_opts()

bool rohc_comp_feedback_parse_opts	(	const struct rohc_comp_ctxt *const	context,
		const uint8_t *const	packet,
		const size_t	packet_len,
		const uint8_t *const	feedback_data,
		const size_t	feedback_data_len,
		size_t	opts_present[ROHC_FEEDBACK_OPT_MAX],
		uint32_t *const	sn_bits,
		size_t *const	sn_bits_nr,
		const rohc_feedback_crc_t	crc_type,
		uint8_t	crc_in_packet,
		size_t	crc_pos_from_end
	)

Parse FEEDBACK-2 options.

Parameters

	context	The ROHC decompression context
	packet	The whole feedback packet with CID bits
	packet_len	The length of the whole feedback packet with CID bits
	feedback_data	The feedback data without the CID bits
	feedback_data_len	The length of the feedback data without the CID bits
[out]	opts_present	Whether options are present or not
[out]	sn_bits	in: the SN bits collected in base header out: the SN bits collected in base header and options
[out]	sn_bits_nr	in: the number of SN bits collected in base header out: the number of SN bits collected in base header and options
	crc_type	Whether the CRC is present in base header or in option
	crc_in_packet	The CRC of the feedback packet
	crc_pos_from_end	The position of the CRC byte from the end of the feedback packet

Returns

true if feedback options were successfully parsed, false if feedback options were malformed or CRC is wrong

rohc_comp_reinit_context()

bool rohc_comp_reinit_context

(

struct rohc_comp_ctxt *const

context

)

Re-initialize the given context.

Make the context restart its initialization with decompressor, ie. it goes in the lowest compression state.

Parameters

context

The compression context to re-initialize

Returns

true in case of success, false otherwise
