ip.h File Reference

IP-agnostic packet. More...

#include "protocols/ipv4.h"
#include "protocols/ipv6.h"
#include <stdlib.h>
#include <stdint.h>
#include <stdbool.h>

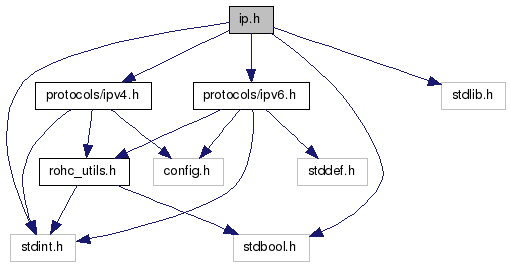

Include dependency graph for ip.h:

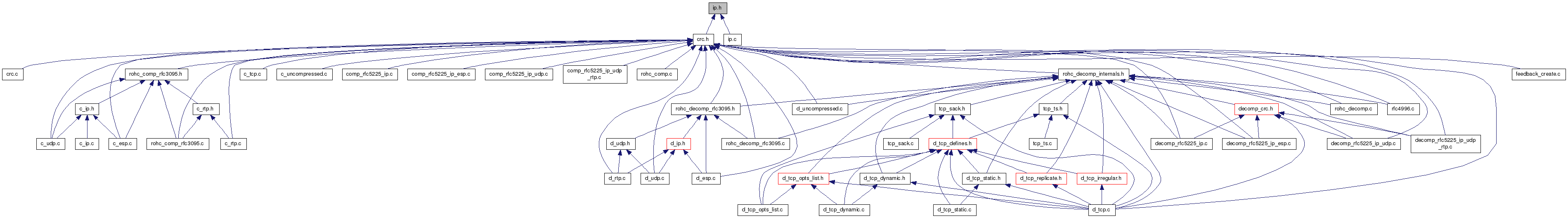

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	net_hdr
struct	ip_packet
	Defines an IP-agnostic packet that can handle an IPv4 or IPv6 packet. More...

Enumerations
enum	ip_header_pos_t { ROHC_IP_HDR_NONE = 0, ROHC_IP_HDR_FIRST = 1, ROHC_IP_HDR_SECOND = 2 }
enum	ip_version {   IPV4 = 4, IPV6 = 6, IP_UNKNOWN = 0, IPV4_MALFORMED = 1,   IPV6_MALFORMED = 2 }
	IP version. More...

Functions
static uint16_t	swab16 (const uint16_t value)
	In-place change the byte order in a two-byte value. More...
static uint16_t	from32to16 (const uint32_t x)
static uint16_t	ip_fast_csum (const uint8_t *const iph, const size_t ihl)
static ip_version	ip_get_version (const struct ip_packet *const ip)
	Get the IP version of an IP packet. More...
uint8_t	ip_get_protocol (const struct ip_packet *const ip)
	Get the protocol transported by an IP packet. More...
unsigned int	ip_get_tos (const struct ip_packet *const ip)
	Get the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet. More...
unsigned int	ip_get_ttl (const struct ip_packet *const ip)
	Get the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet. More...
void	ip_set_version (struct ip_packet *const ip, const ip_version value)
	Set the IP version of an IP packet. More...
void	ip_set_protocol (struct ip_packet *const ip, const uint8_t value)
	Set the protocol transported by an IP packet. More...
void	ip_set_tos (struct ip_packet *const ip, const uint8_t value)
	Set the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet. More...
void	ip_set_ttl (struct ip_packet *const ip, const uint8_t value)
	Set the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet. More...
void	ip_set_saddr (struct ip_packet *const ip, const uint8_t *value)
	Set the Source Address of an IP packet. More...
void	ip_set_daddr (struct ip_packet *const ip, const uint8_t *value)
	Set the Destination Address of an IP packet. More...

Detailed Description

IP-agnostic packet.

Author

Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com

Enumeration Type Documentation

ip_header_pos_t

enum ip_header_pos_t

The selected IP header

Enumerator
ROHC_IP_HDR_NONE	No IP header selected
ROHC_IP_HDR_FIRST	The first IP header is selected
ROHC_IP_HDR_SECOND	The second IP header is selected

ip_version

enum ip_version

IP version.

Enumerator
IPV4	IP version 4.
IPV6	IP version 6.
IP_UNKNOWN	not IP
IPV4_MALFORMED	IP version 4 (malformed)
IPV6_MALFORMED	IP version 6 (malformed)

Function Documentation

from32to16()

static uint16_t from32to16 ( const uint32_t  x )

inlinestatic

ip_fast_csum()

static uint16_t ip_fast_csum ( const uint8_t *const  iph, const size_t  ihl  )

inlinestatic

This is a version of ip_compute_csum() optimized for IP headers, which always checksum on 4 octet boundaries.

ip_get_protocol()

uint8_t ip_get_protocol

(

const struct ip_packet *const

ip

)

Get the protocol transported by an IP packet.

The protocol returned is the one transported by the last known IP extension header if any is found.

The function handles ip_packet whose ip_packet::version is IP_UNKNOWN. It always returns the special value 0.

Parameters

ip	The IP packet to analyze

Returns

The protocol number that identify the protocol transported by the given IP packet, 0 if the packet is not IPv4 nor IPv6

ip_get_tos()

unsigned int ip_get_tos

(

const struct ip_packet *const

ip

)

Get the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze

Returns

The TOS or TC value if successful, 0 otherwise

ip_get_ttl()

unsigned int ip_get_ttl

(

const struct ip_packet *const

ip

)

Get the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze

Returns

The TTL or HL value if successful, 0 otherwise

ip_get_version()

static ip_version ip_get_version ( const struct ip_packet *const  ip )

inlinestatic

Get the IP version of an IP packet.

The function handles ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze

Returns

The version of the IP packet

ip_set_daddr()

void ip_set_daddr	(	struct ip_packet *const	ip,
		const uint8_t *	value
	)

Set the Destination Address of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to modify
value	The IP address value

ip_set_protocol()

void ip_set_protocol	(	struct ip_packet *const	ip,
		const uint8_t	value
	)

Set the protocol transported by an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to modify
value	The protocol value

ip_set_saddr()

void ip_set_saddr	(	struct ip_packet *const	ip,
		const uint8_t *	value
	)

Set the Source Address of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to modify
value	The IP address value

ip_set_tos()

void ip_set_tos	(	struct ip_packet *const	ip,
		const uint8_t	value
	)

Set the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to modify
value	The TOS/TC value

ip_set_ttl()

void ip_set_ttl	(	struct ip_packet *const	ip,
		const uint8_t	value
	)

Set the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to modify
value	The TTL/HL value

ip_set_version()

void ip_set_version	(	struct ip_packet *const	ip,
		const ip_version	value
	)

Set the IP version of an IP packet.

Parameters

ip	The IP packet to modify
value	The version value

swab16()

static uint16_t swab16 ( const uint16_t  value )

inlinestatic

In-place change the byte order in a two-byte value.

Parameters

value

The two-byte value to modify

Returns

The same value with the byte order changed
