c_uncompressed.c File Reference

ROHC compression context for the uncompressed profile. More...

#include "rohc_comp_internals.h"
#include "rohc_traces.h"
#include "rohc_traces_internal.h"
#include "rohc_debug.h"
#include "schemes/cid.h"
#include "crc.h"
#include <assert.h>

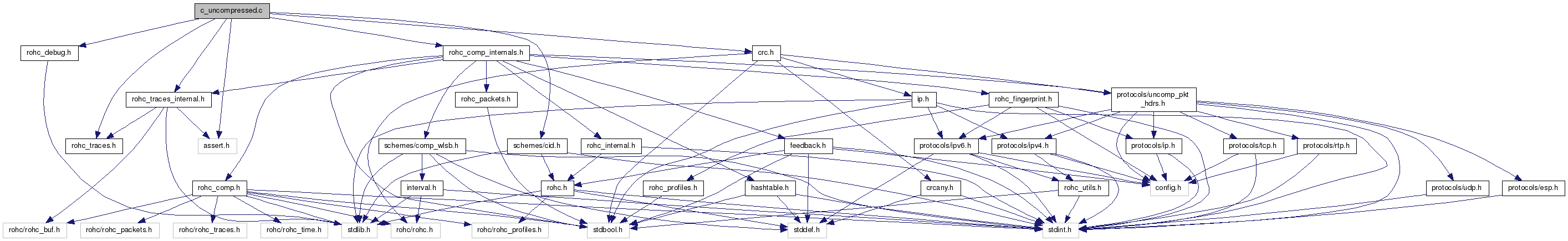

Include dependency graph for c_uncompressed.c:

Functions
static bool	c_uncompressed_create (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs)
	Create a new Uncompressed context and initialize it thanks to the given IP packet. More...
static void	c_uncompressed_destroy (struct rohc_comp_ctxt *const context)
	Destroy the Uncompressed context. More...
static int	c_uncompressed_encode (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, rohc_packet_t *const packet_type)
	Encode an IP packet according to a pattern decided by several different factors. More...
static int	uncompressed_code_packet (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, rohc_packet_t *const packet_type)
	Build the ROHC packet to send. More...
static int	uncompressed_code_IR_packet (const struct rohc_comp_ctxt *context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len)
	Build the IR packet. More...
static int	uncompressed_code_normal_packet (const struct rohc_comp_ctxt *context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len)
	Build the Normal packet. More...
static bool	uncomp_feedback (struct rohc_comp_ctxt *const context, const enum rohc_feedback_type feedback_type, const uint8_t *const packet, const size_t packet_len, const uint8_t *const feedback_data, const size_t feedback_data_len)
	Update the profile when feedback is received. More...

Variables
const struct rohc_comp_profile	c_uncompressed_profile
	Define the compression part of the Uncompressed profile as described in the RFC 3095. More...

Detailed Description

ROHC compression context for the uncompressed profile.

Author

Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com

Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Function Documentation

c_uncompressed_create()

static bool c_uncompressed_create ( struct rohc_comp_ctxt *const  context, const struct rohc_pkt_hdrs *const  uncomp_pkt_hdrs  )

static

Create a new Uncompressed context and initialize it thanks to the given IP packet.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
uncomp_pkt_hdrs	The uncompressed headers to initialize the new context

Returns

true if successful, false otherwise

c_uncompressed_destroy()

static void c_uncompressed_destroy ( struct rohc_comp_ctxt *const  context )

static

Destroy the Uncompressed context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context

The compression context

c_uncompressed_encode()

static int c_uncompressed_encode ( struct rohc_comp_ctxt *const  context, const struct rohc_pkt_hdrs *const  uncomp_pkt_hdrs, uint8_t *const  rohc_pkt, const size_t  rohc_pkt_max_len, rohc_packet_t *const  packet_type  )

static

Encode an IP packet according to a pattern decided by several different factors.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
uncomp_pkt_hdrs	The uncompressed headers to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	OUT: The type of ROHC packet that is created

Returns

The length of the ROHC packet if successful, -1 otherwise

uncomp_feedback()

static bool uncomp_feedback ( struct rohc_comp_ctxt *const  context, const enum rohc_feedback_type  feedback_type, const uint8_t *const  packet, const size_t  packet_len, const uint8_t *const  feedback_data, const size_t  feedback_data_len  )

static

Update the profile when feedback is received.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
feedback_type	The feedback type among ROHC_FEEDBACK_1 and ROHC_FEEDBACK_2
packet	The whole feedback packet with CID bits
packet_len	The length of the whole feedback packet with CID bits
feedback_data	The feedback data without the CID bits
feedback_data_len	The length of the feedback data without the CID bits

Returns

true if the feedback was successfully handled, false if the feedback could not be taken into account

uncompressed_code_IR_packet()

static int uncompressed_code_IR_packet ( const struct rohc_comp_ctxt *  context, const struct rohc_pkt_hdrs *const  uncomp_pkt_hdrs, uint8_t *const  rohc_pkt, const size_t  rohc_pkt_max_len  )

static

Build the IR packet.

 IR packet (5.10.1)

     0   1   2   3   4   5   6   7
    --- --- --- --- --- --- --- ---
 1 :         Add-CID octet         : if for small CIDs and (CID != 0)
   +---+---+---+---+---+---+---+---+
 2 | 1   1   1   1   1   1   0 |res|
   +---+---+---+---+---+---+---+---+
   :                               :
 3 /    0-2 octets of CID info     / 1-2 octets if for large CIDs
   :                               :
   +---+---+---+---+---+---+---+---+
 4 |          Profile = 0          | 1 octet
   +---+---+---+---+---+---+---+---+
 5 |              CRC              | 1 octet
   +---+---+---+---+---+---+---+---+
   :                               : (optional)
 6 /           IP packet           / variable length
   :                               :
    --- --- --- --- --- --- --- ---

Part 6 is not managed by this function.

Parameters

context	The compression context
uncomp_pkt_hdrs	The uncompressed headers to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet

Returns

The length of the ROHC packet if successful, -1 otherwise

uncompressed_code_normal_packet()

static int uncompressed_code_normal_packet ( const struct rohc_comp_ctxt *  context, const struct rohc_pkt_hdrs *const  uncomp_pkt_hdrs, uint8_t *const  rohc_pkt, const size_t  rohc_pkt_max_len  )

static

Build the Normal packet.

 Normal packet (5.10.2)

     0   1   2   3   4   5   6   7
    --- --- --- --- --- --- --- ---
 1 :         Add-CID octet         : if for small CIDs and (CID != 0)
   +---+---+---+---+---+---+---+---+
 2 |   first octet of IP packet    |
   +---+---+---+---+---+---+---+---+
   :                               :
 3 /    0-2 octets of CID info     / 1-2 octets if for large CIDs
   :                               :
   +---+---+---+---+---+---+---+---+
   |                               |
 4 /      rest of IP packet        / variable length
   |                               |
   +---+---+---+---+---+---+---+---+

Part 4 is not managed by this function.

Parameters

context	The compression context
uncomp_pkt_hdrs	The uncompressed headers to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet

Returns

The length of the ROHC packet if successful, -1 otherwise

uncompressed_code_packet()

static int uncompressed_code_packet ( struct rohc_comp_ctxt *const  context, const struct rohc_pkt_hdrs *const  uncomp_pkt_hdrs, uint8_t *const  rohc_pkt, const size_t  rohc_pkt_max_len, rohc_packet_t *const  packet_type  )

static

Build the ROHC packet to send.

Parameters

context	The compression context
uncomp_pkt_hdrs	The uncompressed headers to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	OUT: The type of ROHC packet that is created

Returns

The length of the ROHC packet if successful, -1 otherwise

Variable Documentation

c_uncompressed_profile

const struct rohc_comp_profile c_uncompressed_profile

Initial value:

=
{
        .id             = ROHC_PROFILE_UNCOMPRESSED,
        .create         = c_uncompressed_create,
        .destroy        = c_uncompressed_destroy,
        .encode         = c_uncompressed_encode,
        .feedback       = uncomp_feedback,
}

Define the compression part of the Uncompressed profile as described in the RFC 3095.
