c_tcp_opts_list.h File Reference

Handle the list of TCP options for the TCP ompression profile. More...

#include "rohc_comp_internals.h"
#include "protocols/tcp.h"
#include "protocols/rfc6846.h"
#include <stdint.h>
#include <stddef.h>

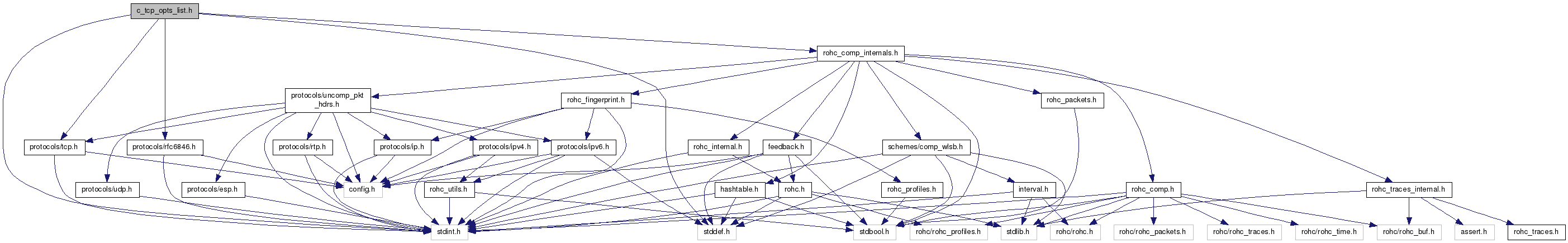

Include dependency graph for c_tcp_opts_list.h:

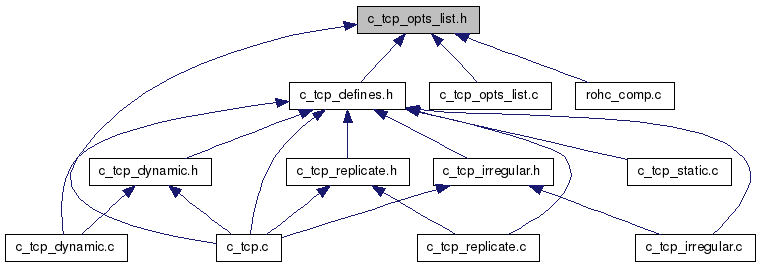

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	c_tcp_opt_ctxt
	The compression context for one TCP option. More...
struct	c_tcp_opts_ctxt_tmp
struct	c_tcp_opts_ctxt

Functions
bool	rohc_comp_tcp_are_options_acceptable (const struct rohc_comp *const comp, const uint8_t *const opts, const size_t data_offset, struct rohc_pkt_hdrs *const uncomp_pkt_hdrs)
	Whether TCP options are acceptable for TCP profile or not. More...
void	tcp_detect_options_changes (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, struct c_tcp_opts_ctxt *const opts_ctxt, struct c_tcp_opts_ctxt_tmp *const tmp, const bool tcp_ack_num_changed)
	Parse the uncompressed TCP options for changes. More...
int	c_tcp_code_tcp_opts_list_item (const struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, const rohc_chain_t chain_type, struct c_tcp_opts_ctxt *const opts_ctxt, struct c_tcp_opts_ctxt_tmp *const tmp, uint8_t *const comp_opts, const size_t comp_opts_max_len, bool *const no_item_needed)
	Build the list of TCP options items. More...
int	c_tcp_code_tcp_opts_irreg (const struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, struct c_tcp_opts_ctxt *const opts_ctxt, const struct c_tcp_opts_ctxt_tmp *const tmp, uint8_t *const comp_opts, const size_t comp_opts_max_len)
	Build the list of TCP options for the irregular chain. More...

Detailed Description

Handle the list of TCP options for the TCP ompression profile.

Author

FWX rohc_.nosp@m.team.nosp@m.@dial.nosp@m.ine..nosp@m.fr

Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com

Function Documentation

c_tcp_code_tcp_opts_irreg()

int c_tcp_code_tcp_opts_irreg	(	const struct rohc_comp_ctxt *const	context,
		const struct rohc_pkt_hdrs *const	uncomp_pkt_hdrs,
		struct c_tcp_opts_ctxt *const	opts_ctxt,
		const struct c_tcp_opts_ctxt_tmp *const	tmp,
		uint8_t *const	comp_opts,
		const size_t	comp_opts_max_len
	)

Build the list of TCP options for the irregular chain.

All the CO packets contains an irregular chain.

Parameters

	context	The compression context
	uncomp_pkt_hdrs	The uncompressed headers to encode
[in,out]	opts_ctxt	The compression context for TCP options
	tmp	The temporary state for compressed TCP options
[out]	comp_opts	The compressed TCP options
	comp_opts_max_len	The max remaining length in the ROHC buffer

Returns

The length (in bytes) of compressed TCP options in case of success, -1 in case of failure

Todo:

TODO: defines 'options profiles' the same way as for decompressor

c_tcp_code_tcp_opts_list_item()

int c_tcp_code_tcp_opts_list_item	(	const struct rohc_comp_ctxt *const	context,
		const struct rohc_pkt_hdrs *const	uncomp_pkt_hdrs,
		const rohc_chain_t	chain_type,
		struct c_tcp_opts_ctxt *const	opts_ctxt,
		struct c_tcp_opts_ctxt_tmp *const	tmp,
		uint8_t *const	comp_opts,
		const size_t	comp_opts_max_len,
		bool *const	no_item_needed
	)

Build the list of TCP options items.

The list of TCP options is used in:

• the dynamic chain of the IR and IR-DYN packets,
• the replicate chain of the IR-CR packets,
• at the end of the rnd_8, seq_8, and co_common packets.

Parameters

	context	The compression context
	uncomp_pkt_hdrs	The uncompressed headers to encode
	chain_type	The TCP chain for which the list of items is
[in,out]	opts_ctxt	The compression context for TCP options
	tmp	The temporary state for compressed TCP options
[out]	comp_opts	The compressed TCP options
	comp_opts_max_len	The max remaining length in the ROHC buffer
[out]	no_item_needed	Whether no item was needed at all

Returns

The length (in bytes) of compressed TCP options in case of success, -1 in case of failure

rohc_comp_tcp_are_options_acceptable()

bool rohc_comp_tcp_are_options_acceptable	(	const struct rohc_comp *const	comp,
		const uint8_t *const	opts,
		const size_t	data_offset,
		struct rohc_pkt_hdrs *const	uncomp_pkt_hdrs
	)

Whether TCP options are acceptable for TCP profile or not.

TCP options are acceptable for the TCP profile if:

• every TCP option is smaller than ROHC_TCP_OPT_MAX_LEN
• the last TCP option is not truncated,
• well-known TCP options got the expected length (see below),
• no more than ROHC_TCP_OPTS_MAX options are present,
• each TCP options is present only once (except EOL and NOP).

The following well-known TCP options shall have expected lengths:

• MSS shall be TCP_OLEN_MSS long,
• WS shall be TCP_OLEN_WS long,
• SACK Permitted shall be TCP_OLEN_SACK_PERM long,
• SACK shall be 2 + N * 8 with N in range [1, 4]
• TS shall be TCP_OLEN_TS long.

Parameters

	comp	The ROHC compressor
	opts	The beginning of the TCP options
	data_offset	The length (in 32-bit words) of the full TCP header
[out]	uncomp_pkt_hdrs	The parsed uncompressed headers

Returns

true if the TCP options are acceptable, false if they are not

See also

ROHC_TCP_OPTS_MAX

tcp_detect_options_changes()

void tcp_detect_options_changes	(	struct rohc_comp_ctxt *const	context,
		const struct rohc_pkt_hdrs *const	uncomp_pkt_hdrs,
		struct c_tcp_opts_ctxt *const	opts_ctxt,
		struct c_tcp_opts_ctxt_tmp *const	tmp,
		const bool	tcp_ack_num_changed
	)

Parse the uncompressed TCP options for changes.

Parameters

	context	The compression context
	uncomp_pkt_hdrs	The uncompressed headers to encode
[in,out]	opts_ctxt	The compression context for TCP options
	tmp	The temporary state for compressed TCP options
	tcp_ack_num_changed	Whether the TCP ACK number changed or not
