IP-agnostic packet. More...

#include "ip.h"
#include "rohc_utils.h"
#include "protocols/ip_numbers.h"
#include "protocols/ip.h"
#include "protocols/ipv4.h"
#include "protocols/ipv6.h"
#include <string.h>
#include <assert.h>

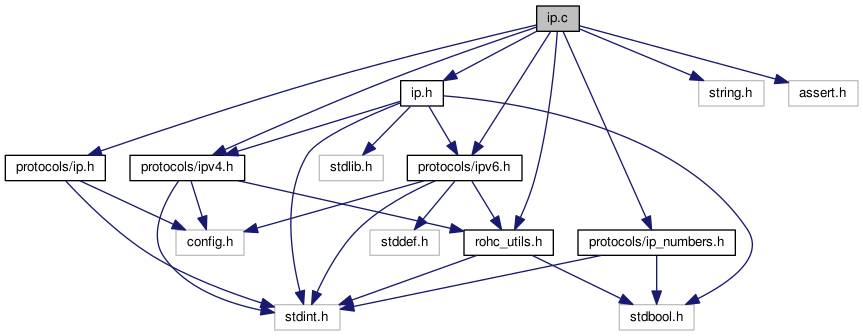

Include dependency graph for ip.c:

Functions
static bool	ip_find_next_layer (const struct ip_packet const ip, struct net_hdr const nh, struct net_hdr *const nl)
	Find the next header and next layer transported by an IP packet. More...

static bool	ext_get_next_layer (const struct net_hdr const nh, struct net_hdr const nl)
	Find the next layer transported by an IP extension. More...

static bool	ext_get_next_header (const uint8_t const ext, const size_t ext_len, struct net_hdr const nh)
	Find the next header transported by an IP extension. More...

void	ip_create (struct ip_packet const ip, const uint8_t const packet, const size_t size)
	Create an IP packet from raw data. More...

const uint8_t *	ip_get_raw_data (const struct ip_packet *const ip)
	Get the IP raw data (header + payload) More...

void	ip_get_inner_packet (const struct ip_packet const outer, struct ip_packet const inner)
	Get the inner IP packet (IP in IP) More...

uint8_t *	ip_get_next_header (const struct ip_packet const ip, uint8_t const type)
	Get the IP next header. More...

uint8_t *	ip_get_next_layer (const struct ip_packet *const ip)
	Get the next header (but skip IP extensions) More...

uint8_t *	ip_get_next_ext_from_ip (const struct ip_packet const ip, uint8_t const type)
	Get the next extension header of IPv6 packets from an IPv6 header. More...

uint8_t *	ip_get_next_ext_from_ext (const uint8_t const ext, uint8_t const type)
	Get the next extension header of IPv6 packets from another extension. More...

unsigned short	ip_get_extension_size (const uint8_t *const ext)
	Get the size of an IPv6 extension. More...

unsigned short	ip_get_total_extension_size (const struct ip_packet *const ip)
	Get the size of the extension list. More...

bool	ip_is_fragment (const struct ip_packet *const ip)
	Whether the IP packet is an IP fragment or not. More...

unsigned int	ip_get_totlen (const struct ip_packet *const ip)
	Get the total length of an IP packet. More...

unsigned int	ip_get_hdrlen (const struct ip_packet *const ip)
	Get the length of an IP header. More...

void	ip_set_version (struct ip_packet *const ip, const ip_version value)
	Set the IP version of an IP packet. More...

uint8_t	ip_get_protocol (const struct ip_packet *const ip)
	Get the protocol transported by an IP packet. More...

void	ip_set_protocol (struct ip_packet *const ip, const uint8_t value)
	Set the protocol transported by an IP packet. More...

unsigned int	ip_get_tos (const struct ip_packet *const ip)
	Get the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet. More...

void	ip_set_tos (struct ip_packet *const ip, const uint8_t value)
	Set the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet. More...

unsigned int	ip_get_ttl (const struct ip_packet *const ip)
	Get the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet. More...

void	ip_set_ttl (struct ip_packet *const ip, const uint8_t value)
	Set the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet. More...

void	ip_set_saddr (struct ip_packet const ip, const uint8_t value)
	Set the Source Address of an IP packet. More...

void	ip_set_daddr (struct ip_packet const ip, const uint8_t value)
	Set the Destination Address of an IP packet. More...

const struct ipv4_hdr *	ipv4_get_header (const struct ip_packet *const ip)
	Get the IPv4 header. More...

uint16_t	ipv4_get_id (const struct ip_packet *const ip)
	Get the IP-ID of an IPv4 packet. More...

uint16_t	ipv4_get_id_nbo (const struct ip_packet *const ip, const unsigned int nbo)
	Get the IP-ID of an IPv4 packet in Network Byte Order. More...

void	ipv4_set_id (struct ip_packet *const ip, const int value)
	Set the IP-ID of an IPv4 packet. More...

int	ipv4_get_df (const struct ip_packet *const ip)
	Get the Don't Fragment (DF) bit of an IPv4 packet. More...

void	ipv4_set_df (struct ip_packet *const ip, const int value)
	Set the Don't Fragment (DF) bit of an IPv4 packet. More...

uint32_t	ipv4_get_saddr (const struct ip_packet *const ip)
	Get the source address of an IPv4 packet. More...

uint32_t	ipv4_get_daddr (const struct ip_packet *const ip)
	Get the destination address of an IPv4 packet. More...

const struct ipv6_hdr *	ipv6_get_header (const struct ip_packet *const ip)
	Get the IPv6 header. More...

uint32_t	ip_get_flow_label (const struct ip_packet *const ip)
	Get the flow label of an IPv6 packet. More...

void	ip_set_flow_label (struct ip_packet *const ip, const uint32_t value)
	Set the flow label of an IPv6 packet. More...

const struct ipv6_addr *	ipv6_get_saddr (const struct ip_packet *const ip)
	Get the source address of an IPv6 packet. More...

const struct ipv6_addr *	ipv6_get_daddr (const struct ip_packet *const ip)
	Get the destination address of an IPv6 packet. More...

Detailed Description

IP-agnostic packet.

Author: Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com; Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Function Documentation

◆ ext_get_next_header()

static bool ext_get_next_header	(	const uint8_t *const	ext,
		const size_t	ext_len,
		struct net_hdr *const	nh
	)

static

Find the next header transported by an IP extension.

Parameters

	ext	The extension header
	ext_len	The maximum length of the extension
[out]	nh	The next header transported by the extension header

Returns: true if the extension is well-formed, false otherwise

◆ ext_get_next_layer()

static bool ext_get_next_layer	(	const struct net_hdr *const	nh,
		struct net_hdr *const	nl
	)

static

Find the next layer transported by an IP extension.

Parameters

	nh	The first IP extension
[out]	nl	The next layer

Returns: true if all extensions are well-formed, false otherwise

◆ ip_create()

void ip_create	(	struct ip_packet *const	ip,
		const uint8_t *const	packet,
		const size_t	size
	)

Create an IP packet from raw data.

Parameters

ip	OUT: The IP packet to create
packet	The IP packet data
size	The length of the IP packet data

◆ ip_find_next_layer()

static bool ip_find_next_layer	(	const struct ip_packet *const	ip,
		struct net_hdr *const	nh,
		struct net_hdr *const	nl
	)

static

Find the next header and next layer transported by an IP packet.

Private functions used by the IP module: (please do not use directly)

Parameters

	ip	The IP packet to analyze
[out]	nh	The first IP extension or the transport layer
[out]	nl	The transport layer

Returns: true if all extensions are well-formed, false otherwise

◆ ip_get_extension_size()

unsigned short ip_get_extension_size ( const uint8_t *const ext )

Get the size of an IPv6 extension.

Parameters

ext	The extension

Returns: The size of the extension

◆ ip_get_flow_label()

uint32_t ip_get_flow_label ( const struct ip_packet *const ip )

Get the flow label of an IPv6 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV6.

Parameters

ip	The IPv6 packet to analyze

Returns: The flow label of the given IPv6 packet

◆ ip_get_hdrlen()

unsigned int ip_get_hdrlen ( const struct ip_packet *const ip )

Get the length of an IP header.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze

Returns: The length of the IP header if successful, 0 otherwise

◆ ip_get_inner_packet()

void ip_get_inner_packet	(	const struct ip_packet *const	outer,
		struct ip_packet *const	inner
	)

Get the inner IP packet (IP in IP)

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

outer	The outer IP packet to analyze
inner	The inner IP packet to create

◆ ip_get_next_ext_from_ext()

uint8_t* ip_get_next_ext_from_ext	(	const uint8_t *const	ext,
		uint8_t *const	type
	)

Get the next extension header of IPv6 packets from another extension.

Parameters

ext	The extension to analyse
type	OUT: The type of the next header If there is no next header the value must be ignored

Returns: The next extension header, NULL if there is no more extension

◆ ip_get_next_ext_from_ip()

uint8_t* ip_get_next_ext_from_ip	(	const struct ip_packet *const	ip,
		uint8_t *const	type
	)

Get the next extension header of IPv6 packets from an IPv6 header.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze
type	OUT: The type of the next header If there is no next header the value must be ignored

Returns: The next extension header, NULL if there is no extension

◆ ip_get_next_header()

uint8_t* ip_get_next_header	(	const struct ip_packet *const	ip,
		uint8_t *const	type
	)

Get the IP next header.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze
type	OUT: The type of the next header

Returns: The next header if successful, NULL otherwise

◆ ip_get_next_layer()

uint8_t* ip_get_next_layer ( const struct ip_packet *const ip )

Get the next header (but skip IP extensions)

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze

Returns: The next header that is not an IP extension if there is one, NULL if there is none

◆ ip_get_protocol()

uint8_t ip_get_protocol ( const struct ip_packet *const ip )

Get the protocol transported by an IP packet.

The protocol returned is the one transported by the last known IP extension header if any is found.

The function handles ip_packet whose ip_packet::version is IP_UNKNOWN. It always returns the special value 0.

Parameters

ip	The IP packet to analyze

Returns: The protocol number that identify the protocol transported by the given IP packet, 0 if the packet is not IPv4 nor IPv6

◆ ip_get_raw_data()

const uint8_t* ip_get_raw_data ( const struct ip_packet *const ip )

Get the IP raw data (header + payload)

The function handles ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze

Returns: The IP raw data (header + payload)

◆ ip_get_tos()

unsigned int ip_get_tos ( const struct ip_packet *const ip )

Get the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze

Returns: The TOS or TC value if successful, 0 otherwise

◆ ip_get_total_extension_size()

unsigned short ip_get_total_extension_size ( const struct ip_packet *const ip )

Get the size of the extension list.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The packet to analyse

Returns: The size of extension list

◆ ip_get_totlen()

unsigned int ip_get_totlen ( const struct ip_packet *const ip )

Get the total length of an IP packet.

The function handles ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze

Returns: The total length of the IP packet

◆ ip_get_ttl()

unsigned int ip_get_ttl ( const struct ip_packet *const ip )

Get the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze

Returns: The TTL or HL value if successful, 0 otherwise

◆ ip_is_fragment()

bool ip_is_fragment ( const struct ip_packet *const ip )

Whether the IP packet is an IP fragment or not.

The IP packet is a fragment if the MF (More Fragments) bit is set or the Fragment Offset field is non-zero.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to analyze

Returns: Whether the IP packet is an IP fragment or not

◆ ip_set_daddr()

void ip_set_daddr	(	struct ip_packet *const	ip,
		const uint8_t *	value
	)

Set the Destination Address of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to modify
value	The IP address value

◆ ip_set_flow_label()

void ip_set_flow_label	(	struct ip_packet *const	ip,
		const uint32_t	value
	)

Set the flow label of an IPv6 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV6.

Parameters

ip	The IPv6 packet to modify
value	The flow label value

◆ ip_set_protocol()

void ip_set_protocol	(	struct ip_packet *const	ip,
		const uint8_t	value
	)

Set the protocol transported by an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to modify
value	The protocol value

◆ ip_set_saddr()

void ip_set_saddr	(	struct ip_packet *const	ip,
		const uint8_t *	value
	)

Set the Source Address of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to modify
value	The IP address value

◆ ip_set_tos()

void ip_set_tos	(	struct ip_packet *const	ip,
		const uint8_t	value
	)

Set the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to modify
value	The TOS/TC value

◆ ip_set_ttl()

void ip_set_ttl	(	struct ip_packet *const	ip,
		const uint8_t	value
	)

Set the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters

ip	The IP packet to modify
value	The TTL/HL value

◆ ip_set_version()

void ip_set_version	(	struct ip_packet *const	ip,
		const ip_version	value
	)

Set the IP version of an IP packet.

Parameters

ip	The IP packet to modify
value	The version value

◆ ipv4_get_daddr()

uint32_t ipv4_get_daddr ( const struct ip_packet *const ip )

Get the destination address of an IPv4 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters

ip	The IPv4 packet to analyze

Returns: The source address of the given IPv4 packet

◆ ipv4_get_df()

int ipv4_get_df ( const struct ip_packet *const ip )

Get the Don't Fragment (DF) bit of an IPv4 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters

ip	The IP packet to analyze

Returns: The DF bit

◆ ipv4_get_header()

const struct ipv4_hdr* ipv4_get_header ( const struct ip_packet *const ip )

Get the IPv4 header.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters

ip	The IP packet to analyze

Returns: The IP header

◆ ipv4_get_id()

uint16_t ipv4_get_id ( const struct ip_packet *const ip )

Get the IP-ID of an IPv4 packet.

The IP-ID value is returned as-is (ie. not automatically converted to the host byte order).

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters

ip	The IP packet to analyze

Returns: The IP-ID

◆ ipv4_get_id_nbo()

uint16_t ipv4_get_id_nbo	(	const struct ip_packet *const	ip,
		const unsigned int	nbo
	)

Get the IP-ID of an IPv4 packet in Network Byte Order.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters

ip	The IP packet to analyze
nbo	The NBO flag (if RND = 1, use NBO = 1)

Returns: The IP-ID

◆ ipv4_get_saddr()

uint32_t ipv4_get_saddr ( const struct ip_packet *const ip )

Get the source address of an IPv4 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters

ip	The IPv4 packet to analyze

Returns: The source address of the given IPv4 packet

◆ ipv4_set_df()

void ipv4_set_df	(	struct ip_packet *const	ip,
		const int	value
	)

Set the Don't Fragment (DF) bit of an IPv4 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters

ip	The IP packet to modify
value	The value of the DF bit

◆ ipv4_set_id()

void ipv4_set_id	(	struct ip_packet *const	ip,
		const int	value
	)

Set the IP-ID of an IPv4 packet.

The IP-ID value is set as-is (ie. not automatically converted to the host byte order).

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters

ip	The IP packet to modify
value	The IP-ID value

◆ ipv6_get_daddr()

const struct ipv6_addr* ipv6_get_daddr ( const struct ip_packet *const ip )

Get the destination address of an IPv6 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV6.

Parameters

ip	The IPv6 packet to analyze

Returns: The source address of the given IPv6 packet

◆ ipv6_get_header()

const struct ipv6_hdr* ipv6_get_header ( const struct ip_packet *const ip )

Get the IPv6 header.

The function does not handle ip_packet whose ip_packet::version is not IPV6.

Parameters

ip	The IP packet to analyze

Returns: The IP header if IPv6

◆ ipv6_get_saddr()

const struct ipv6_addr* ipv6_get_saddr ( const struct ip_packet *const ip )

Get the source address of an IPv6 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV6.

Parameters

ip	The IPv6 packet to analyze

Returns: The source address of the given IPv6 packet

Functions

Detailed Description

Function Documentation

◆ ext_get_next_header()

◆ ext_get_next_layer()

◆ ip_create()

◆ ip_find_next_layer()

◆ ip_get_extension_size()

◆ ip_get_flow_label()

◆ ip_get_hdrlen()

◆ ip_get_inner_packet()

◆ ip_get_next_ext_from_ext()

◆ ip_get_next_ext_from_ip()

◆ ip_get_next_header()

◆ ip_get_next_layer()

◆ ip_get_protocol()

◆ ip_get_raw_data()

◆ ip_get_tos()

◆ ip_get_total_extension_size()

◆ ip_get_totlen()

◆ ip_get_ttl()

◆ ip_is_fragment()

◆ ip_set_daddr()

◆ ip_set_flow_label()

◆ ip_set_protocol()

◆ ip_set_saddr()

◆ ip_set_tos()

◆ ip_set_ttl()

◆ ip_set_version()

◆ ipv4_get_daddr()

◆ ipv4_get_df()

◆ ipv4_get_header()

◆ ipv4_get_id()

◆ ipv4_get_id_nbo()

◆ ipv4_get_saddr()

◆ ipv4_set_df()

◆ ipv4_set_id()

◆ ipv6_get_daddr()

◆ ipv6_get_header()

◆ ipv6_get_saddr()
