d_ip.h File Reference

ROHC decompression context for the IP-only profile. More...

#include "rohc_decomp_rfc3095.h"

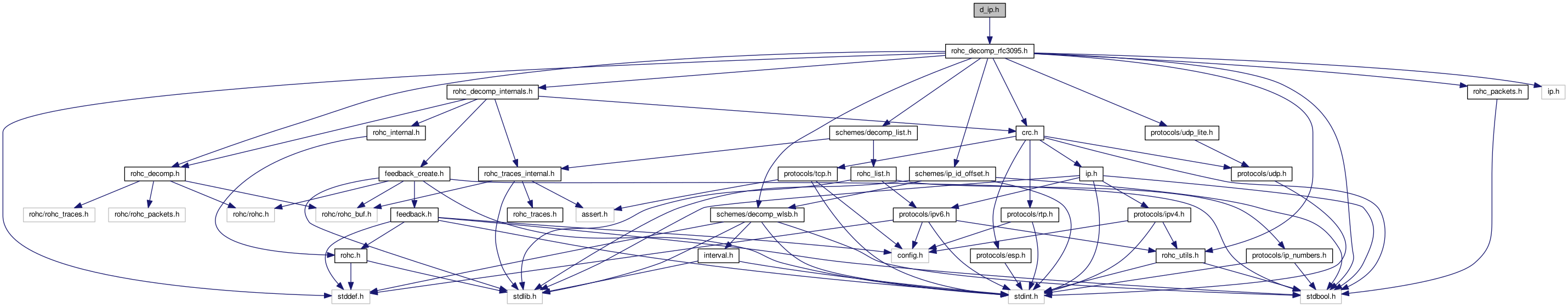

Include dependency graph for d_ip.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions

rohc_packet_t ip_detect_packet_type (const struct rohc_decomp_ctxt *const context, const uint8_t *const rohc_packet, const size_t rohc_length, const size_t large_cid_len)
 Detect the type of ROHC packet for IP-based non-RTP profiles. More...

int ip_parse_dynamic_ip (const struct rohc_decomp_ctxt *const context, const uint8_t *packet, const size_t length, struct rohc_extr_bits *const bits)
 Parse the IP dynamic part of the ROHC packet. More...

int ip_parse_ext3 (const struct rohc_decomp_ctxt *const context, const uint8_t *const rohc_data, const size_t rohc_data_len, const rohc_packet_t packet_type, struct rohc_extr_bits *const bits)
 Parse the extension 3 of the UOR-2 packet. More...

int parse_outer_header_flags (const struct rohc_decomp_ctxt *const context, const uint8_t *const flags, const uint8_t *fields, const size_t length, struct rohc_extr_ip_bits *const bits)
 Parse the outer IP header flags and fields. More...

int parse_inner_header_flags (const struct rohc_decomp_ctxt *const context, const uint8_t *const flags, const uint8_t *fields, const size_t length, struct rohc_extr_ip_bits *const bits)
 Parse the inner IP header flags and fields. More...


Detailed Description

ROHC decompression context for the IP-only profile.

Author
Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com
Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Function Documentation

◆ ip_detect_packet_type()

rohc_packet_t ip_detect_packet_type ( const struct rohc_decomp_ctxt *const  context,
const uint8_t *const  rohc_packet,
const size_t  rohc_length,
const size_t  large_cid_len
)

Detect the type of ROHC packet for IP-based non-RTP profiles.

Parameters
contextThe decompression context
rohc_packetThe ROHC packet
rohc_lengthThe length of the ROHC packet
large_cid_lenThe length of the optional large CID field
Returns
The packet type

◆ ip_parse_dynamic_ip()

int ip_parse_dynamic_ip ( const struct rohc_decomp_ctxt *const  context,
const uint8_t *  packet,
const size_t  length,
struct rohc_extr_bits *const  bits
)

Parse the IP dynamic part of the ROHC packet.

Parameters
contextThe decompression context
packetThe ROHC packet to parse
lengthThe length of the ROHC packet
bitsOUT: The bits extracted from the ROHC header
Returns
The number of bytes read in the ROHC packet, -1 in case of failure

◆ ip_parse_ext3()

int ip_parse_ext3 ( const struct rohc_decomp_ctxt *const  context,
const uint8_t *const  rohc_data,
const size_t  rohc_data_len,
const rohc_packet_t  packet_type,
struct rohc_extr_bits *const  bits
)

Parse the extension 3 of the UOR-2 packet.

 Extension 3 for non-RTP profiles (5.7.5 & 5.11.4):

       0     1     2     3     4     5     6     7
    +-----+-----+-----+-----+-----+-----+-----+-----+
 1  |  1     1  |  S  |   Mode    |  I  | ip  | ip2 |
    +-----+-----+-----+-----+-----+-----+-----+-----+
 2  |            Inner IP header flags        |     |  if ip = 1
    +-----+-----+-----+-----+-----+-----+-----+-----+
 3  |            Outer IP header flags              |  if ip2 = 1
    +-----+-----+-----+-----+-----+-----+-----+-----+
 4  |                      SN                       |  if S = 1
    +-----+-----+-----+-----+-----+-----+-----+-----+
    |                                               |
 5  /            Inner IP header fields             /  variable,
    |                                               |  if ip = 1
    +-----+-----+-----+-----+-----+-----+-----+-----+
 6  |                     IP-ID                     |  2 octets, if I = 1
    +-----+-----+-----+-----+-----+-----+-----+-----+
    |                                               |
 7  /            Outer IP header fields             /  variable,
    |                                               |  if ip2 = 1
    +-----+-----+-----+-----+-----+-----+-----+-----+
Parameters
contextThe decompression context
rohc_dataThe ROHC data to parse
rohc_data_lenThe length of the ROHC data to parse
packet_typeThe type of ROHC packet to parse
bitsIN: the bits already found in base header OUT: the bits found in the extension header 3
Returns
The data length read from the ROHC packet, -1 in case of error

◆ parse_inner_header_flags()

int parse_inner_header_flags ( const struct rohc_decomp_ctxt *const  context,
const uint8_t *const  flags,
const uint8_t *  fields,
const size_t  length,
struct rohc_extr_ip_bits *const  bits
)

Parse the inner IP header flags and fields.

Store the values in an IP header info structure.

  Inner IP header flags (5.7.5):

       0     1     2     3     4     5     6     7
     ..... ..... ..... ..... ..... ..... ..... .....
    | TOS | TTL | DF  | PR  | IPX | NBO | RND | ip2 |  if ip = 1
     ..... ..... ..... ..... ..... ..... ..... .....

  Inner IP header fields (5.7.5):

    ..... ..... ..... ..... ..... ..... ..... .....
   |         Type of Service/Traffic Class         |  if TOS = 1
    ..... ..... ..... ..... ..... ..... ..... .....
   |         Time to Live/Hop Limit                |  if TTL = 1
    ..... ..... ..... ..... ..... ..... ..... .....
   |         Protocol/Next Header                  |  if PR = 1
    ..... ..... ..... ..... ..... ..... ..... .....
   /         IP extension headers                  /  variable,
    ..... ..... ..... ..... ..... ..... ..... .....   if IPX = 1
Parameters
contextThe decompression context
flagsThe ROHC flags that indicate which IP fields are present in the packet
fieldsThe ROHC packet part that contains some IP header fields
lengthThe length of the ROHC packet part that contains some IP header fields
bitsOUT: The bits extracted from extension 3
Returns
The data length read from the ROHC packet, -1 in case of error

◆ parse_outer_header_flags()

int parse_outer_header_flags ( const struct rohc_decomp_ctxt *const  context,
const uint8_t *const  flags,
const uint8_t *  fields,
const size_t  length,
struct rohc_extr_ip_bits *const  bits
)

Parse the outer IP header flags and fields.

Store the values in an IP header info structure.

  Outer IP header flags (5.7.5):

       0     1     2     3     4     5     6     7
     ..... ..... ..... ..... ..... ..... ..... .....
    | TOS2| TTL2| DF2 | PR2 |IPX2 |NBO2 |RND2 |  I2 |  if ip2 = 1
     ..... ..... ..... ..... ..... ..... ..... .....

  Outer IP header fields

     ..... ..... ..... ..... ..... ..... ..... .....
    |      Type of Service/Traffic Class            |  if TOS2 = 1
     ..... ..... ..... ..... ..... ..... ..... .....
    |         Time to Live/Hop Limit                |  if TTL2 = 1
     ..... ..... ..... ..... ..... ..... ..... .....
    |         Protocol/Next Header                  |  if PR2 = 1
     ..... ..... ..... ..... ..... ..... ..... .....
    /         IP extension header(s)                /  variable,
     ..... ..... ..... ..... ..... ..... ..... .....    if IPX2 = 1
    |                  IP-ID                        |  2 octets,
     ..... ..... ..... ..... ..... ..... ..... .....    if I2 = 1
Parameters
contextThe decompression context
flagsThe ROHC flags that indicate which IP fields are present in the packet
fieldsThe ROHC packet part that contain some IP header fields
lengthThe length of the ROHC packet part that contains some IP header fields
bitsOUT: The bits extracted from extension 3
Returns
The data length read from the ROHC packet, -1 in case of error
