comp_wlsb.h File Reference

Window-based Least Significant Bits (W-LSB) encoding. More...

#include "interval.h"
#include <stdlib.h>
#include <stdint.h>
#include <stdbool.h>

Include dependency graph for comp_wlsb.h:

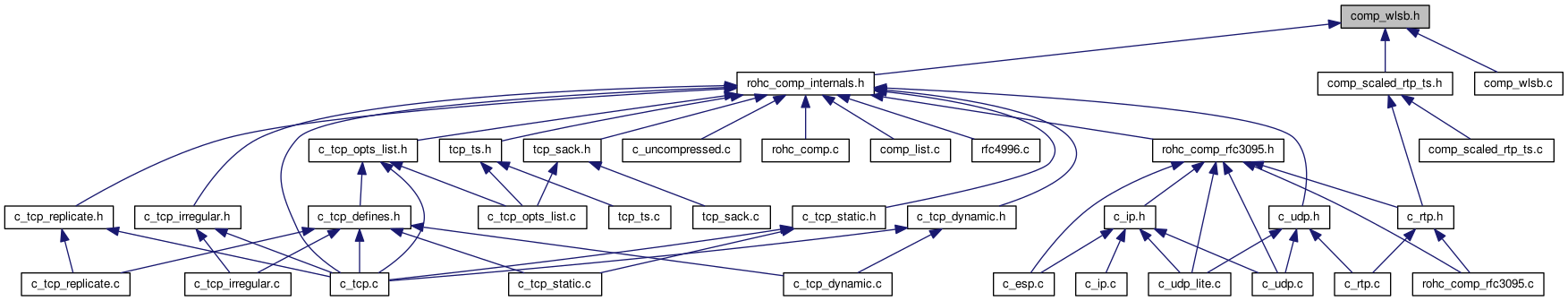

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	c_window
	One W-LSB window entry. More...
struct	c_wlsb
	One W-LSB encoding object. More...

Functions
void	wlsb_init (struct c_wlsb *const wlsb, const size_t bits, const size_t window_width, const rohc_lsb_shift_t p)
	Initialize the given W-LSB encoding object. More...
void	c_add_wlsb (struct c_wlsb *const wlsb, const uint32_t sn, const uint32_t value)
	Add a value into a W-LSB encoding object. More...
size_t	wlsb_get_k_8bits (const struct c_wlsb *const wlsb, const uint8_t value)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...
size_t	wlsb_get_kp_8bits (const struct c_wlsb *const wlsb, const uint8_t value, const rohc_lsb_shift_t p)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...
size_t	wlsb_get_k_16bits (const struct c_wlsb *const wlsb, const uint16_t value)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...
size_t	wlsb_get_mink_16bits (const struct c_wlsb *const wlsb, const uint16_t value, const size_t min_k)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...
size_t	wlsb_get_kp_16bits (const struct c_wlsb *const wlsb, const uint16_t value, const rohc_lsb_shift_t p)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...
size_t	wlsb_get_minkp_16bits (const struct c_wlsb *const wlsb, const uint16_t value, const size_t min_k, const rohc_lsb_shift_t p)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...
size_t	wlsb_get_k_32bits (const struct c_wlsb *const wlsb, const uint32_t value)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...
size_t	wlsb_get_mink_32bits (const struct c_wlsb *const wlsb, const uint32_t value, const size_t min_k)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...
size_t	wlsb_get_kp_32bits (const struct c_wlsb *const wlsb, const uint32_t value, const rohc_lsb_shift_t p)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...
size_t	wlsb_ack (struct c_wlsb *const wlsb, const uint32_t sn_bits, const size_t sn_bits_nr)
	Acknowledge based on the Sequence Number (SN) More...
bool	wlsb_is_sn_present (struct c_wlsb *const wlsb, const uint32_t sn)
	Whether the given SN is present in the given WLSB window. More...

Detailed Description

Window-based Least Significant Bits (W-LSB) encoding.

Author

Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com

David Moreau from TAS

Function Documentation

c_add_wlsb()

void c_add_wlsb	(	struct c_wlsb *const	wlsb,
		const uint32_t	sn,
		const uint32_t	value
	)

Add a value into a W-LSB encoding object.

Parameters

wlsb	The W-LSB object
sn	The Sequence Number (SN) for the new entry
value	The value to base the LSB coding on

wlsb_ack()

size_t wlsb_ack	(	struct c_wlsb *const	wlsb,
		const uint32_t	sn_bits,
		const size_t	sn_bits_nr
	)

Acknowledge based on the Sequence Number (SN)

Removes all window entries older (and including) than the one that matches the given SN bits.

Parameters

wlsb	The W-LSB object
sn_bits	The LSB of the SN to acknowledge
sn_bits_nr	The number of LSB of the SN to acknowledge

Returns

The number of acked window entries

wlsb_get_k_16bits()

size_t wlsb_get_k_16bits	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm

Returns

The number of bits required to uniquely recreate the value

wlsb_get_k_32bits()

size_t wlsb_get_k_32bits	(	const struct c_wlsb *const	wlsb,
		const uint32_t	value
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm

Returns

The number of bits required to uniquely recreate the value

wlsb_get_k_8bits()

size_t wlsb_get_k_8bits	(	const struct c_wlsb *const	wlsb,
		const uint8_t	value
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 8-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm

Returns

The number of bits required to uniquely recreate the value

wlsb_get_kp_16bits()

size_t wlsb_get_kp_16bits	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value,
		const rohc_lsb_shift_t	p
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
p	The shift parameter p

Returns

The number of bits required to uniquely recreate the value

wlsb_get_kp_32bits()

size_t wlsb_get_kp_32bits	(	const struct c_wlsb *const	wlsb,
		const uint32_t	value,
		const rohc_lsb_shift_t	p
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
p	The shift parameter p

Returns

The number of bits required to uniquely recreate the value

wlsb_get_kp_8bits()

size_t wlsb_get_kp_8bits	(	const struct c_wlsb *const	wlsb,
		const uint8_t	value,
		const rohc_lsb_shift_t	p
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 8-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
p	The shift parameter p

Returns

The number of bits required to uniquely recreate the value

wlsb_get_mink_16bits()

size_t wlsb_get_mink_16bits	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value,
		const size_t	min_k
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
min_k	The minimum number of bits to find out

Returns

The number of bits required to uniquely recreate the value

wlsb_get_mink_32bits()

size_t wlsb_get_mink_32bits	(	const struct c_wlsb *const	wlsb,
		const uint32_t	value,
		const size_t	min_k
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
min_k	The minimum number of bits to find out

Returns

The number of bits required to uniquely recreate the value

wlsb_get_minkp_16bits()

size_t wlsb_get_minkp_16bits	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value,
		const size_t	min_k,
		const rohc_lsb_shift_t	p
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
min_k	The minimum number of bits to find out
p	The shift parameter p

Returns

The number of bits required to uniquely recreate the value

wlsb_init()

void wlsb_init	(	struct c_wlsb *const	wlsb,
		const size_t	bits,
		const size_t	window_width,
		const rohc_lsb_shift_t	p
	)

Initialize the given W-LSB encoding object.

Parameters

[in,out]	wlsb	The W-LSB encoding object to initialize
	bits	The maximal number of bits for representing a value
	window_width	The number of entries in the window (power of 2)
	p	Shift parameter (see 4.5.2 in the RFC 3095)

wlsb_is_sn_present()

bool wlsb_is_sn_present	(	struct c_wlsb *const	wlsb,
		const uint32_t	sn
	)

Whether the given SN is present in the given WLSB window.

Parameters

wlsb	The WLSB in which to search for the SN
sn	The SN to search for

Returns

true if the SN is found, false if not
