comp_scaled_rtp_ts.c File Reference

Scaled RTP Timestamp encoding. More...

#include "comp_scaled_rtp_ts.h"
#include "sdvl.h"
#include "rohc_traces_internal.h"
#include <stdlib.h>
#include <assert.h>

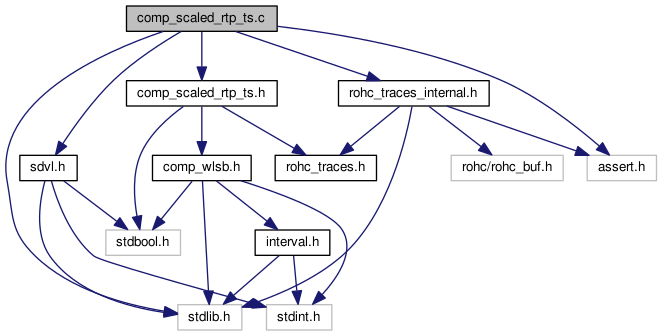

Include dependency graph for comp_scaled_rtp_ts.c:

Macros
#define	ts_debug(entity_struct, format, ...)

Functions
void	c_init_sc (struct ts_sc_comp *const ts_sc, const size_t wlsb_window_width, rohc_trace_callback2_t trace_cb, void *const trace_cb_priv)
	Create the ts_sc_comp object. More...
void	c_add_ts (struct ts_sc_comp *const ts_sc, const uint32_t ts, const uint16_t sn)
	Store the new TS, calculate new values and update the state. More...
void	nb_bits_unscaled (const struct ts_sc_comp *const ts_sc, size_t *const bits_nr_less_equal_than_2, size_t *const bits_nr_more_than_2)
	Return the number of bits needed to encode unscaled TS. More...
void	add_unscaled (struct ts_sc_comp *const ts_sc, const uint16_t sn)
	Add a new unscaled TS value to the ts_sc_comp object. More...
void	nb_bits_scaled (const struct ts_sc_comp *const ts_sc, size_t *const bits_nr_less_equal_than_2, size_t *const bits_nr_more_than_2)
	Return the number of bits needed to encode TS_SCALED. More...
void	add_scaled (struct ts_sc_comp *const ts_sc, const uint16_t sn)
	Add a new TS_SCALED value to the ts_sc_comp object. More...
uint32_t	get_ts_stride (const struct ts_sc_comp *const ts_sc)
	Return the TS_STRIDE value. More...
uint32_t	get_ts_scaled (const struct ts_sc_comp *const ts_sc)
	Return the TS_SCALED value. More...
uint32_t	get_ts_unscaled (const struct ts_sc_comp *const ts_sc)
	Return the unscaled TS value. More...
bool	rohc_ts_sc_is_deducible (const struct ts_sc_comp *const ts_sc)
	Whether TimeStamp (TS) is deducible from the Sequence Number (SN) or not. More...

Detailed Description

Scaled RTP Timestamp encoding.

Author

David Moreau from TAS

Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com

Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Macro Definition Documentation

ts_debug

#define ts_debug	(		entity_struct,
			format,
			...
	)

Value:

rohc_debug(entity_struct, ROHC_TRACE_COMP, ROHC_PROFILE_GENERAL, \
                   format, ##__VA_ARGS__)

Print debug messages for the ts_sc_comp module

Function Documentation

add_scaled()

void add_scaled	(	struct ts_sc_comp *const	ts_sc,
		const uint16_t	sn
	)

Add a new TS_SCALED value to the ts_sc_comp object.

Parameters

ts_sc	The ts_sc_comp object
sn	The Sequence Number

add_unscaled()

void add_unscaled	(	struct ts_sc_comp *const	ts_sc,
		const uint16_t	sn
	)

Add a new unscaled TS value to the ts_sc_comp object.

Parameters

ts_sc	The ts_sc_comp object
sn	The Sequence Number

c_add_ts()

void c_add_ts	(	struct ts_sc_comp *const	ts_sc,
		const uint32_t	ts,
		const uint16_t	sn
	)

Store the new TS, calculate new values and update the state.

Parameters

ts_sc	The ts_sc_comp object
ts	The timestamp to add
sn	The sequence number of the RTP packet

c_init_sc()

void c_init_sc	(	struct ts_sc_comp *const	ts_sc,
		const size_t	wlsb_window_width,
		rohc_trace_callback2_t	trace_cb,
		void *const	trace_cb_priv
	)

Create the ts_sc_comp object.

Parameters

ts_sc	The ts_sc_comp object to create
wlsb_window_width	The width of the W-LSB sliding window to use for TS_STRIDE (must be > 0)
trace_cb	The trace callback
trace_cb_priv	An optional private context for the trace callback, may be NULL

get_ts_scaled()

uint32_t get_ts_scaled

(

const struct ts_sc_comp *const

ts_sc

)

Return the TS_SCALED value.

Parameters

ts_sc

The ts_sc_comp object

Returns

The TS_SCALED value

get_ts_stride()

uint32_t get_ts_stride

(

const struct ts_sc_comp *const

ts_sc

)

Return the TS_STRIDE value.

Parameters

ts_sc

The ts_sc_comp object

Returns

TS_STRIDE value

get_ts_unscaled()

uint32_t get_ts_unscaled

(

const struct ts_sc_comp *const

ts_sc

)

Return the unscaled TS value.

Parameters

ts_sc

The ts_sc_comp object

Returns

The unscaled TS value

nb_bits_scaled()

void nb_bits_scaled	(	const struct ts_sc_comp *const	ts_sc,
		size_t *const	bits_nr_less_equal_than_2,
		size_t *const	bits_nr_more_than_2
	)

Return the number of bits needed to encode TS_SCALED.

Parameters

	ts_sc	The ts_sc_comp object
[out]	bits_nr_less_equal_than_2	The number of bits needed to encode TS_SCALED in a field that is smaller than or equal to 2 bits
[out]	bits_nr_more_than_2	The number of bits needed to encode TS_SCALED in a field that is strictly larger than to 2 bits

nb_bits_unscaled()

void nb_bits_unscaled	(	const struct ts_sc_comp *const	ts_sc,
		size_t *const	bits_nr_less_equal_than_2,
		size_t *const	bits_nr_more_than_2
	)

Return the number of bits needed to encode unscaled TS.

Parameters

	ts_sc	The ts_sc_comp object
[out]	bits_nr_less_equal_than_2	The number of bits needed to encode TS_SCALED in a field that is smaller than or equal to 2 bits
[out]	bits_nr_more_than_2	The number of bits needed to encode TS_SCALED in a field that is strictly larger than to 2 bits

rohc_ts_sc_is_deducible()

bool rohc_ts_sc_is_deducible

(

const struct ts_sc_comp *const

ts_sc

)

Whether TimeStamp (TS) is deducible from the Sequence Number (SN) or not.

Parameters

ts_sc

The TS SCALED compression context

Returns

true if TS is deducible from SN, false otherwise
