sc_tcp_context Struct Reference

Define the TCP part of the profile decompression context. More...

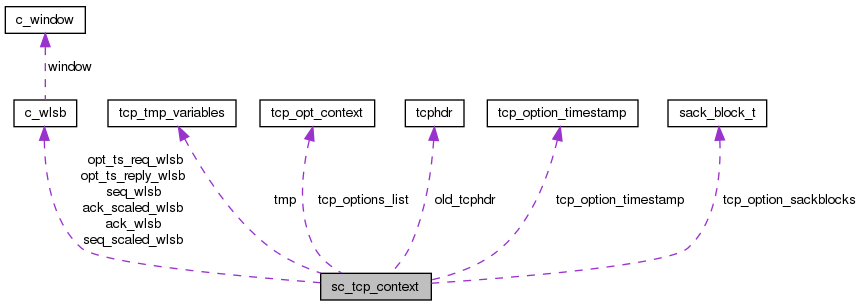

Collaboration diagram for sc_tcp_context:

Data Fields
int	tcp_seq_num_change_count
	The number of times the sequence number field was added to the compressed header.
uint8_t	ecn_used
uint32_t	tcp_last_seq_num
uint16_t	window
uint32_t	seq_num
struct c_wlsb *	seq_wlsb
struct c_wlsb *	seq_scaled_wlsb
uint32_t	seq_num_scaled
uint32_t	seq_num_residue
size_t	seq_num_factor
size_t	seq_num_scaling_nr
uint32_t	ack_num
struct c_wlsb *	ack_wlsb
struct c_wlsb *	ack_scaled_wlsb
uint16_t	ack_stride
uint32_t	ack_num_scaled
uint32_t	ack_num_residue
size_t	tcp_opts_list_struct_nr_trans
uint8_t	tcp_opts_list_struct [ROHC_TCP_OPTS_MAX]
struct tcp_opt_context	tcp_options_list [ROHC_TCP_OPTS_MAX]
uint16_t	tcp_option_maxseg
uint8_t	tcp_option_window
struct tcp_option_timestamp	tcp_option_timestamp
bool	tcp_option_timestamp_init
struct c_wlsb *	opt_ts_req_wlsb
struct c_wlsb *	opt_ts_reply_wlsb
uint8_t	tcp_option_sack_length
sack_block_t	tcp_option_sackblocks [4]
uint8_t	tcp_options_free_offset
tcphdr_t	old_tcphdr
	The previous TCP header.
struct tcp_tmp_variables	tmp
	TCP-specific temporary variables that are used during one single compression of packet.
uint8_t	ip_context [1]

---

Detailed Description

Define the TCP part of the profile decompression context.

This object must be used with the generic part of the decompression context c_generic_context.

See also:

c_generic_context

---

Field Documentation

uint32_t sc_tcp_context::ack_num

uint32_t sc_tcp_context::ack_num_residue

uint32_t sc_tcp_context::ack_num_scaled

struct c_wlsb* sc_tcp_context::ack_scaled_wlsb

uint16_t sc_tcp_context::ack_stride

struct c_wlsb* sc_tcp_context::ack_wlsb

uint8_t sc_tcp_context::ecn_used

uint8_t sc_tcp_context::ip_context[1]

tcphdr_t sc_tcp_context::old_tcphdr

The previous TCP header.

struct c_wlsb* sc_tcp_context::opt_ts_reply_wlsb

struct c_wlsb* sc_tcp_context::opt_ts_req_wlsb

uint32_t sc_tcp_context::seq_num

size_t sc_tcp_context::seq_num_factor

uint32_t sc_tcp_context::seq_num_residue

uint32_t sc_tcp_context::seq_num_scaled

size_t sc_tcp_context::seq_num_scaling_nr

struct c_wlsb* sc_tcp_context::seq_scaled_wlsb

struct c_wlsb* sc_tcp_context::seq_wlsb

uint32_t sc_tcp_context::tcp_last_seq_num

uint16_t sc_tcp_context::tcp_option_maxseg

uint8_t sc_tcp_context::tcp_option_sack_length

sack_block_t sc_tcp_context::tcp_option_sackblocks[4]

struct tcp_option_timestamp sc_tcp_context::tcp_option_timestamp

bool sc_tcp_context::tcp_option_timestamp_init

uint8_t sc_tcp_context::tcp_option_window

uint8_t sc_tcp_context::tcp_options_free_offset

struct tcp_opt_context sc_tcp_context::tcp_options_list[ROHC_TCP_OPTS_MAX]

uint8_t sc_tcp_context::tcp_opts_list_struct[ROHC_TCP_OPTS_MAX]

size_t sc_tcp_context::tcp_opts_list_struct_nr_trans

The number of times the structure of the list of TCP options was transmitted since it last changed

int sc_tcp_context::tcp_seq_num_change_count

The number of times the sequence number field was added to the compressed header.

struct tcp_tmp_variables sc_tcp_context::tmp

TCP-specific temporary variables that are used during one single compression of packet.

uint16_t sc_tcp_context::window

---

The documentation for this struct was generated from the following file:

• c_tcp.c
