ROHC compression/decompression library
Data Fields
d_generic_changes Struct Reference

Store information about an IP header between the different decompressions of IP packets. More...

#include <d_generic.h>

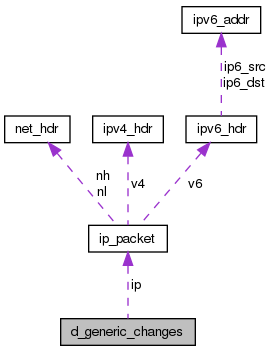

Collaboration diagram for d_generic_changes:
Collaboration graph
[legend]

Data Fields

struct ip_packet ip
 The IP header.
int rnd
 Whether the IP-ID is considered as random or not (IPv4 only)
int nbo
 Whether the IP-ID is considered as coded in NBO or not (IPv4 only)
int sid
 Whether the IP-ID is considered as static or not (IPv4 only)
void * next_header
 The next header located after the IP header(s)
unsigned int next_header_len
 The length of the next header.

Detailed Description

Store information about an IP header between the different decompressions of IP packets.

Defines an object that contains flags and structures related to an IP header and that need to be saved between the different decompressions of packets. A decompression context owns objects like this for the two first IP headers.


Field Documentation

The IP header.

Whether the IP-ID is considered as coded in NBO or not (IPv4 only)

The next header located after the IP header(s)

The length of the next header.

Whether the IP-ID is considered as random or not (IPv4 only)

Whether the IP-ID is considered as static or not (IPv4 only)


The documentation for this struct was generated from the following file:
