ip_numbers.h File Reference

Defines the IPv4 protocol numbers. More...

#include <stdbool.h>
#include <stdint.h>
#include "dllexport.h"

Include dependency graph for ip_numbers.h:

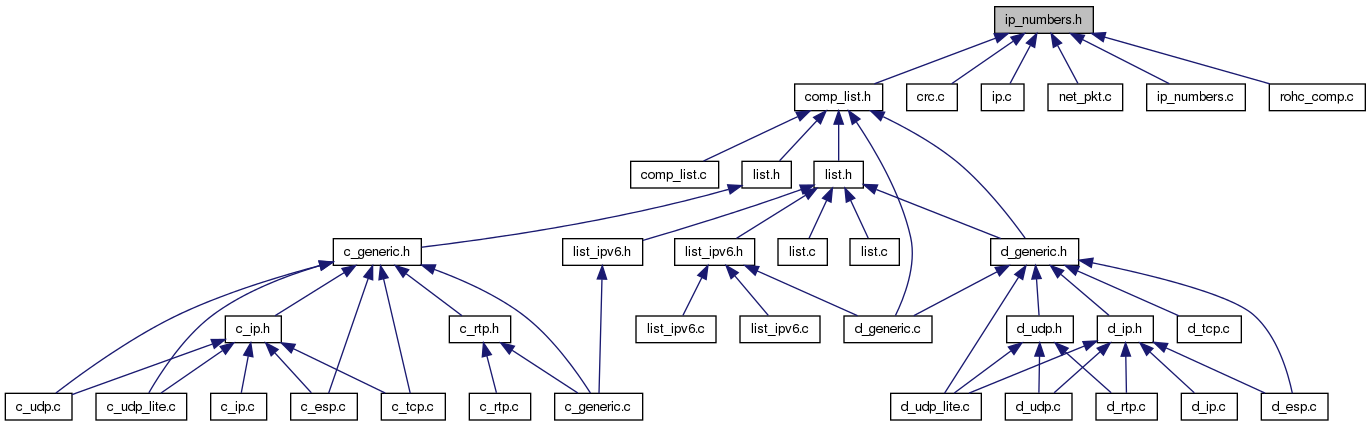

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	{   ROHC_IPPROTO_HOPOPTS = 0, ROHC_IPPROTO_IPIP = 4, ROHC_IPPROTO_TCP = 6, ROHC_IPPROTO_UDP = 17,   ROHC_IPPROTO_IPV6 = 41, ROHC_IPPROTO_ROUTING = 43, ROHC_IPPROTO_FRAGMENT = 44, ROHC_IPPROTO_GRE = 47,   ROHC_IPPROTO_ESP = 50, ROHC_IPPROTO_AH = 51, ROHC_IPPROTO_MINE = 55, ROHC_IPPROTO_DSTOPTS = 60,   ROHC_IPPROTO_MOBILITY = 135, ROHC_IPPROTO_UDPLITE = 136, ROHC_IPPROTO_HIP = 139, ROHC_IPPROTO_SHIM = 140,   ROHC_IPPROTO_RESERVED1 = 253, ROHC_IPPROTO_RESERVED2 = 254 }
	The IP numbers defined by IANA. More...
Functions
bool ROHC_EXPORT	rohc_is_tunneling (const uint8_t protocol) __attribute((warn_unused_result
bool ROHC_EXPORT	rohc_is_ipv6_opt (const uint8_t protocol) __attribute((warn_unused_result
Variables
bool ROHC_EXPORT	pure

---

Detailed Description

Defines the IPv4 protocol numbers.

Author:

Free Software Foundation, Inc

Didier Barvaux <didier@barvaux.org>

This file contains some parts from the GNU C library. It is copied here to be portable on all platforms, even the platforms that miss the declarations or got different declarations, such as Microsoft Windows or FreeBSD.

The copyright statement of the GNU C library is: Copyright (C) 1991-2001, 2003, 2004, 2006, 2007, 2008, 2011, 2012 Free Software Foundation, Inc.

---

Enumeration Type Documentation

anonymous enum

The IP numbers defined by IANA.

Full list at: http://www.iana.org/assignments/protocol-numbers/protocol-numbers.xml

Enumerator:

ROHC_IPPROTO_HOPOPTS	The IP protocol number for Hop-by-Hop option
ROHC_IPPROTO_IPIP	The IP protocol number for IPv4-in-IPv4 tunnels
ROHC_IPPROTO_TCP	The IP protocol number for Transmission Control Protocol (TCP)
ROHC_IPPROTO_UDP	The IP protocol number for the User Datagram Protocol (UDP)
ROHC_IPPROTO_IPV6	The IP protocol number for IPv6
ROHC_IPPROTO_ROUTING	The IP protocol number for IPv6 routing header
ROHC_IPPROTO_FRAGMENT	The IP protocol number for IPv6 fragment header
ROHC_IPPROTO_GRE	The IP protocol number for Generic Routing Encapsulation (GRE)
ROHC_IPPROTO_ESP	The IP protocol number for the Encapsulating Security Payload (ESP)
ROHC_IPPROTO_AH	The IP protocol number for Authentication Header
ROHC_IPPROTO_MINE	The IP protocol number for Minimal Encapsulation within IP (RFC 2004)
ROHC_IPPROTO_DSTOPTS	The IP protocol number for IPv6 destination option
ROHC_IPPROTO_MOBILITY	The IP protocol number for Mobility Header
ROHC_IPPROTO_UDPLITE	The IP protocol number for UDP-Lite
ROHC_IPPROTO_HIP	The IP protocol number for the Host Identity Protocol (HIP)
ROHC_IPPROTO_SHIM	The IP protocol number for the Shim6 Protocol
ROHC_IPPROTO_RESERVED1	The IP protocol number reserved for experimentation and testing
ROHC_IPPROTO_RESERVED2	The IP protocol number reserved for experimentation and testing

---

Function Documentation

bool ROHC_EXPORT rohc_is_ipv6_opt

(

const uint8_t

protocol

)

bool ROHC_EXPORT rohc_is_tunneling

(

const uint8_t

protocol

)

---

Variable Documentation

bool ROHC_EXPORT pure
