ROHC decompression routines. More...

#include "rohc.h"
#include "rohc_comp.h"

Include dependency graph for rohc_decomp.h:

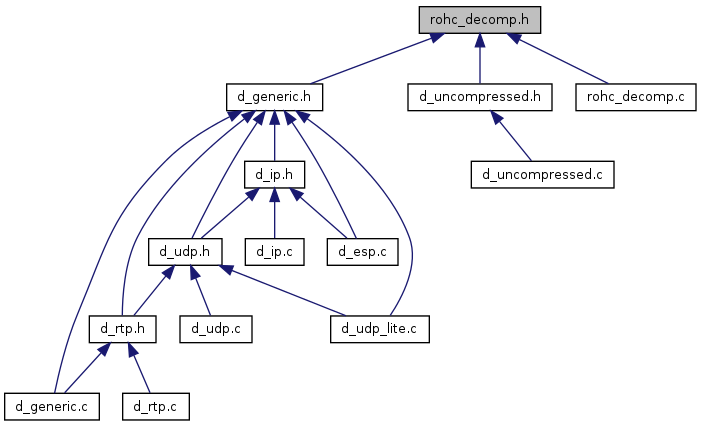

This graph shows which files directly or indirectly include this file:

Data Structures
struct	d_statistics
	Some compressor statistics. More...
struct	rohc_decomp
	The ROHC decompressor. More...
struct	d_context
	The ROHC decompression context. More...
struct	d_profile
	The ROHC decompression profile. More...
Defines
#define	D_NUM_PROFILES 6
	The number of ROHC profiles ready to be used.
Enumerations
enum	rohc_d_state { NO_CONTEXT = 1, STATIC_CONTEXT = 2, FULL_CONTEXT = 3 }
	ROHC decompressor states (see 4.3.2 in the RFC 3095) More...
Functions
struct rohc_decomp *	rohc_alloc_decompressor (struct rohc_comp *compressor)
	Create one ROHC decompressor.
void	rohc_free_decompressor (struct rohc_decomp *decomp)
	Destroy one ROHC decompressor.
int	rohc_decompress (struct rohc_decomp decomp, unsigned char ibuf, int isize, unsigned char *obuf, int osize)
	Decompress a ROHC packet.
int	rohc_decompress_both (struct rohc_decomp decomp, unsigned char ibuf, int isize, unsigned char *obuf, int osize, int large) ROHC_DEPRECATED("please do not use this function anymore
int use	rohc_decomp_set_cid_type () and rohc_decomp_set_max_cid()" "instead")
struct d_context *	find_context (struct rohc_decomp *decomp, int cid)
	Find one decompression context thanks to its CID.
struct d_context *	context_create (struct rohc_decomp decomp, int with_cid, struct d_profile profile)
	Create one new decompression context with profile specific data.
void	context_free (struct d_context *context)
	Destroy one decompression context and the profile specific data associated with it.
void	d_change_mode_feedback (struct rohc_decomp decomp, struct d_context context)
	Create a feedback ACK packet telling the compressor to change state.
int	rohc_d_statistics (struct rohc_decomp decomp, unsigned int indent, char buffer)
	Output the decompression statistics of one decompressor to a buffer. The buffer must be large enough to store all the statistics.
int	rohc_d_context (struct rohc_decomp decomp, int index, unsigned int indent, char buffer)
	Output the statistics of one decompression context to a buffer.
void	clear_statistics (struct rohc_decomp *decomp)
	Clear all the statistics.
const char *	rohc_decomp_get_state_descr (const rohc_d_state state)
	Give a description for the given ROHC decompression context state.
void	user_interactions (struct rohc_decomp *decomp, int feedback_maxval)
	Update feedback interval by the user.
bool	rohc_decomp_set_cid_type (struct rohc_decomp *const decomp, const rohc_cid_type_t cid_type) __attribute__((nonnull(1)
bool	rohc_decomp_set_max_cid (struct rohc_decomp *const decomp, const size_t max_cid) __attribute__((nonnull(1)
Variables
bool	warn_unused_result

Detailed Description

ROHC decompression routines.

Author:: Didier Barvaux <didier.barvaux@toulouse.viveris.com>; The hackers from ROHC for Linux; David Moreau from TAS

Define Documentation

#define D_NUM_PROFILES 6

The number of ROHC profiles ready to be used.

Referenced by rohc_d_statistics().

Enumeration Type Documentation

enum rohc_d_state

ROHC decompressor states (see 4.3.2 in the RFC 3095)

Enumerator:

NO_CONTEXT	The No Context state.
STATIC_CONTEXT	The Static Context state.
FULL_CONTEXT	The Full Context state.

Function Documentation

struct d_context* context_create	(	struct rohc_decomp *	decomp,
		int	with_cid,
		struct d_profile *	profile
	)		`[read]`

Create one new decompression context with profile specific data.

Parameters:

decomp	The ROHC decompressor
with_cid	The CID of the new context (not implemented)
profile	The profile to be assigned with the new context

Returns:: The new context if successful, NULL otherwise

References d_profile::allocate_decode_data, c_create_wlsb(), c_destroy_wlsb(), d_context::curval, d_context::first_used, d_profile::free_decode_data, d_context::header_16_compressed, d_context::header_16_uncompressed, d_context::header_compressed_size, d_context::header_uncompressed_size, d_context::latest_used, d_context::mode, NO_CONTEXT, d_context::num_decomp_failures, d_context::num_decomp_repairs, d_context::num_recv_ir, d_context::num_recv_ir_dyn, d_context::num_recv_packets, d_context::num_sent_feedbacks, d_context::profile, rohc_debugf, ROHC_LSB_SHIFT_STATS, d_context::specific, d_context::state, d_context::total_16_compressed, d_context::total_16_uncompressed, d_context::total_compressed_size, d_context::total_uncompressed_size, U_MODE, and zfree.

Referenced by d_decode_header().

void context_free ( struct d_context * context )

Destroy one decompression context and the profile specific data associated with it.

Parameters:

context The context to destroy

References c_destroy_wlsb(), d_profile::free_decode_data, d_context::header_16_compressed, d_context::header_16_uncompressed, d_context::profile, d_context::specific, d_context::total_16_compressed, d_context::total_16_uncompressed, and zfree.

Referenced by d_decode_header(), and rohc_free_decompressor().

struct d_context* find_context	(	struct rohc_decomp *	decomp,
		int	cid
	)		`[read]`

Find one decompression context thanks to its CID.

Parameters:

decomp	The ROHC decompressor
cid	The CID of the context to find out

Returns:: The context if found, NULL otherwise

References rohc_decomp::contexts, and medium::max_cid.

Referenced by d_decode_header().

int rohc_d_context	(	struct rohc_decomp *	decomp,
		int	index,
		unsigned int	indent,
		char *	buffer
	)

Output the statistics of one decompression context to a buffer.

The buffer must be large enough to store the statistics of one context.

Parameters:

decomp	The ROHC decompressor
index	The index of the decompression context in the contexts array
indent	The level of indentation to add during output
buffer	The buffer where to outputs the statistics
