Window-based Least Significant Bits (W-LSB) encoding. More...

#include "comp_wlsb.h"
#include "interval.h"
#include <string.h>
#include <assert.h>

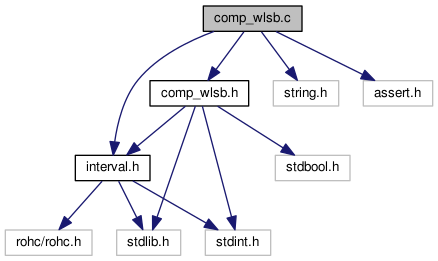

Include dependency graph for comp_wlsb.c:

Functions
static size_t	wlsb_get_minkp_32bits (const struct c_wlsb *const wlsb, const uint32_t value, const size_t min_k, const rohc_lsb_shift_t p)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

static size_t	wlsb_get_next_older (const size_t entry, const size_t max)
	Get the next older entry. More...

static size_t	wlsb_ack_remove (struct c_wlsb *const wlsb, const size_t pos)
	Removes all W-LSB window entries prior to the given position. More...

void	wlsb_init (struct c_wlsb *const wlsb, const size_t bits, const size_t window_width, const rohc_lsb_shift_t p)
	Initialize the given W-LSB encoding object. More...

void	c_add_wlsb (struct c_wlsb *const wlsb, const uint32_t sn, const uint32_t value)
	Add a value into a W-LSB encoding object. More...

size_t	wlsb_get_k_8bits (const struct c_wlsb *const wlsb, const uint8_t value)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t	wlsb_get_kp_8bits (const struct c_wlsb *const wlsb, const uint8_t value, const rohc_lsb_shift_t p)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

bool	wlsb_is_kp_possible_8bits (const struct c_wlsb *const wlsb, const uint8_t value, const size_t k, const rohc_lsb_shift_t p)
	Find out whether the given number of bits is enough to encode value. More...

size_t	wlsb_get_k_16bits (const struct c_wlsb *const wlsb, const uint16_t value)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t	wlsb_get_mink_16bits (const struct c_wlsb *const wlsb, const uint16_t value, const size_t min_k)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t	wlsb_get_kp_16bits (const struct c_wlsb *const wlsb, const uint16_t value, const rohc_lsb_shift_t p)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t	wlsb_get_minkp_16bits (const struct c_wlsb *const wlsb, const uint16_t value, const size_t min_k, const rohc_lsb_shift_t p)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

bool	wlsb_is_kp_possible_16bits (const struct c_wlsb *const wlsb, const uint16_t value, const size_t k, const rohc_lsb_shift_t p)
	Find out whether the given number of bits is enough to encode value. More...

size_t	wlsb_get_k_32bits (const struct c_wlsb *const wlsb, const uint32_t value)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t	wlsb_get_mink_32bits (const struct c_wlsb *const wlsb, const uint32_t value, const size_t min_k)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t	wlsb_get_kp_32bits (const struct c_wlsb *const wlsb, const uint32_t value, const rohc_lsb_shift_t p)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

bool	wlsb_is_kp_possible_32bits (const struct c_wlsb *const wlsb, const uint32_t value, const size_t k, const rohc_lsb_shift_t p)
	Find out whether the given number of bits is enough to encode value. More...

size_t	wlsb_ack (struct c_wlsb *const wlsb, const uint32_t sn_bits, const size_t sn_bits_nr)
	Acknowledge based on the Sequence Number (SN) More...

bool	wlsb_is_sn_present (struct c_wlsb *const wlsb, const uint32_t sn)
	Whether the given SN is present in the given WLSB window. More...

Detailed Description

Window-based Least Significant Bits (W-LSB) encoding.

Author: Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com; Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org; David Moreau from TAS

Function Documentation

◆ c_add_wlsb()

void c_add_wlsb	(	struct c_wlsb *const	wlsb,
		const uint32_t	sn,
		const uint32_t	value
	)

Add a value into a W-LSB encoding object.

Parameters

wlsb	The W-LSB object
sn	The Sequence Number (SN) for the new entry
value	The value to base the LSB coding on

◆ wlsb_ack()

size_t wlsb_ack	(	struct c_wlsb *const	wlsb,
		const uint32_t	sn_bits,
		const size_t	sn_bits_nr
	)

Acknowledge based on the Sequence Number (SN)

Removes all window entries older (and including) than the one that matches the given SN bits.

Parameters

wlsb	The W-LSB object
sn_bits	The LSB of the SN to acknowledge
sn_bits_nr	The number of LSB of the SN to acknowledge

Returns: The number of acked window entries

◆ wlsb_ack_remove()

static size_t wlsb_ack_remove	(	struct c_wlsb *const	wlsb,
		const size_t	pos
	)

static

Removes all W-LSB window entries prior to the given position.

Parameters

wlsb	The W-LSB object
pos	The position to set as the oldest

Returns: The number of acked window entries

◆ wlsb_get_k_16bits()

size_t wlsb_get_k_16bits	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm

Returns: The number of bits required to uniquely recreate the value

◆ wlsb_get_k_32bits()

size_t wlsb_get_k_32bits	(	const struct c_wlsb *const	wlsb,
		const uint32_t	value
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm

Returns: The number of bits required to uniquely recreate the value

◆ wlsb_get_k_8bits()

size_t wlsb_get_k_8bits	(	const struct c_wlsb *const	wlsb,
		const uint8_t	value
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 8-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm

Returns: The number of bits required to uniquely recreate the value

◆ wlsb_get_kp_16bits()

size_t wlsb_get_kp_16bits	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value,
		const rohc_lsb_shift_t	p
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
p	The shift parameter p

Returns: The number of bits required to uniquely recreate the value

◆ wlsb_get_kp_32bits()

size_t wlsb_get_kp_32bits	(	const struct c_wlsb *const	wlsb,
		const uint32_t	value,
		const rohc_lsb_shift_t	p
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
p	The shift parameter p

Returns: The number of bits required to uniquely recreate the value

◆ wlsb_get_kp_8bits()

size_t wlsb_get_kp_8bits	(	const struct c_wlsb *const	wlsb,
		const uint8_t	value,
		const rohc_lsb_shift_t	p
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 8-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
p	The shift parameter p

Returns: The number of bits required to uniquely recreate the value

◆ wlsb_get_mink_16bits()

size_t wlsb_get_mink_16bits	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value,
		const size_t	min_k
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
min_k	The minimum number of bits to find out

Returns: The number of bits required to uniquely recreate the value

◆ wlsb_get_mink_32bits()

size_t wlsb_get_mink_32bits	(	const struct c_wlsb *const	wlsb,
		const uint32_t	value,
		const size_t	min_k
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
min_k	The minimum number of bits to find out

Returns: The number of bits required to uniquely recreate the value

◆ wlsb_get_minkp_16bits()

size_t wlsb_get_minkp_16bits	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value,
		const size_t	min_k,
		const rohc_lsb_shift_t	p
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
min_k	The minimum number of bits to find out
p	The shift parameter p

Returns: The number of bits required to uniquely recreate the value

◆ wlsb_get_minkp_32bits()

static size_t wlsb_get_minkp_32bits	(	const struct c_wlsb *const	wlsb,
		const uint32_t	value,
		const size_t	min_k,
		const rohc_lsb_shift_t	p
	)

static

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
min_k	The minimum number of bits to find out
p	The shift parameter p

Returns: The number of bits required to uniquely recreate the value

◆ wlsb_get_next_older()

static size_t wlsb_get_next_older	(	const size_t	entry,
		const size_t	max
	)

static

Get the next older entry.

Parameters

entry	The entry for which to get the next older entry
max	The max entry value

Returns: The next older entry

◆ wlsb_init()

void wlsb_init	(	struct c_wlsb *const	wlsb,
		const size_t	bits,
		const size_t	window_width,
		const rohc_lsb_shift_t	p
	)

Initialize the given W-LSB encoding object.

Parameters

[in,out]	wlsb	The W-LSB encoding object to initialize
	bits	The maximal number of bits for representing a value
	window_width	The number of entries in the window (power of 2)
	p	Shift parameter (see 4.5.2 in the RFC 3095)

◆ wlsb_is_kp_possible_16bits()

bool wlsb_is_kp_possible_16bits	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value,
		const size_t	k,
		const rohc_lsb_shift_t	p
	)

Find out whether the given number of bits is enough to encode value.

The function is dedicated to 16-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
k	The number of bits for encoding
p	The shift parameter p

Returns: true if the number of bits is enough for encoding or not

◆ wlsb_is_kp_possible_32bits()

bool wlsb_is_kp_possible_32bits	(	const struct c_wlsb *const	wlsb,
		const uint32_t	value,
		const size_t	k,
		const rohc_lsb_shift_t	p
	)

Find out whether the given number of bits is enough to encode value.

The function is dedicated to 32-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
k	The number of bits for encoding
p	The shift parameter p

Returns: true if the number of bits is enough for encoding or not

◆ wlsb_is_kp_possible_8bits()

bool wlsb_is_kp_possible_8bits	(	const struct c_wlsb *const	wlsb,
		const uint8_t	value,
		const size_t	k,
		const rohc_lsb_shift_t	p
	)

Find out whether the given number of bits is enough to encode value.

The function is dedicated to 8-bit fields.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
k	The number of bits for encoding
p	The shift parameter p

Returns: true if the number of bits is enough for encoding or not

◆ wlsb_is_sn_present()

bool wlsb_is_sn_present	(	struct c_wlsb *const	wlsb,
		const uint32_t	sn
	)

Whether the given SN is present in the given WLSB window.

Parameters

wlsb	The WLSB in which to search for the SN
sn	The SN to search for

Returns: true if the SN is found, false if not
