sdvl.h File Reference

Self-Describing Variable-Length (SDVL) encoding. More...

#include "rohc.h"
#include <stdbool.h>

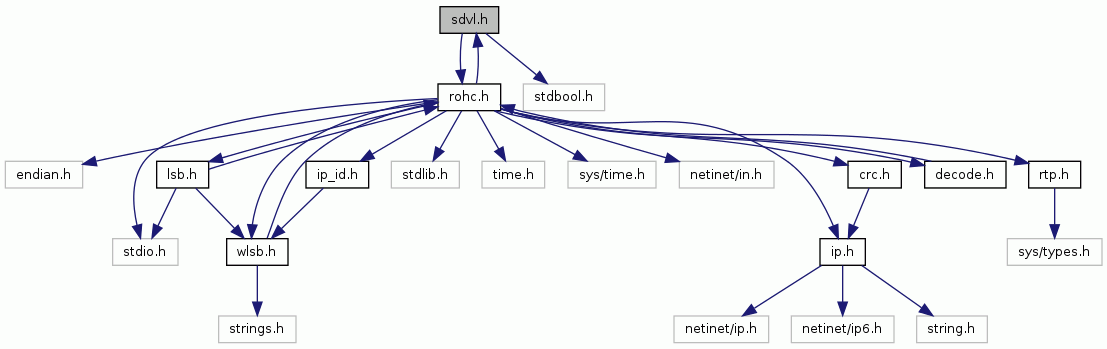

Include dependency graph for sdvl.h:

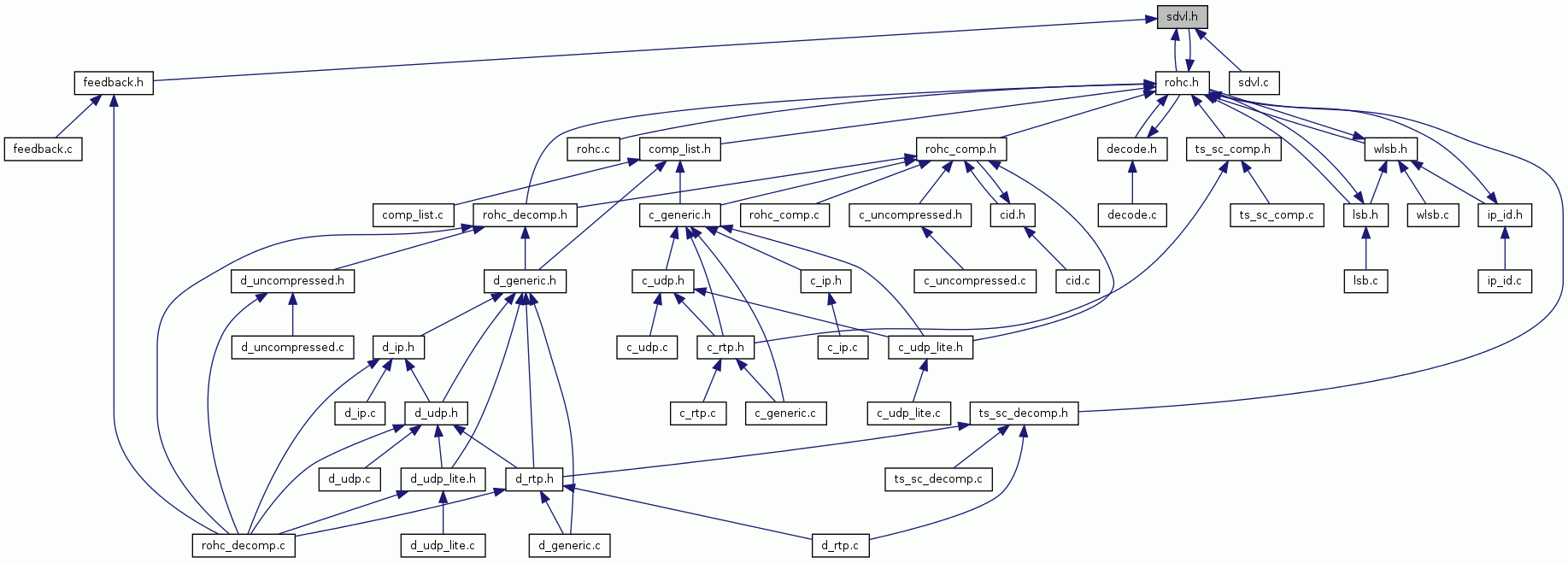

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	MAX_BITS_IN_1_BYTE_SDVL   7
#define	MAX_BITS_IN_2_BYTE_SDVL   14
#define	MAX_BITS_IN_3_BYTE_SDVL   21
#define	MAX_BITS_IN_4_BYTE_SDVL   29
Functions
bool	sdvl_can_value_be_encoded (uint32_t value)
	Can the given value be encoded with SDVL?
int	c_bytesSdvl (int value, int length)
	Find out how many bytes are needed to represent the value using Self-Describing Variable-Length (SDVL) encoding.
boolean	c_encodeSdvl (unsigned char *dest, int value, int length)
	Encode a value using Self-Describing Variable-Length (SDVL) encoding.
int	d_sdvalue_size (const unsigned char *data)
	Find out a size of the Self-Describing Variable-Length (SDVL) value.
int	d_sdvalue_decode (const unsigned char *data)
	Decode a Self-Describing Variable-Length (SDVL) value.

---

Detailed Description

Self-Describing Variable-Length (SDVL) encoding.

Author:

Didier Barvaux <didier.barvaux@toulouse.viveris.com>

The hackers from ROHC for Linux

---

Define Documentation

#define MAX_BITS_IN_1_BYTE_SDVL   7

Maximum number of bits in 1 SDVL-encoded byte

Referenced by c_bytesSdvl().

#define MAX_BITS_IN_2_BYTE_SDVL   14

Maximum number of bits in 2 SDVL-encoded byte

Referenced by c_bytesSdvl().

#define MAX_BITS_IN_3_BYTE_SDVL   21

Maximum number of bits in 3 SDVL-encoded byte

Referenced by c_bytesSdvl().

#define MAX_BITS_IN_4_BYTE_SDVL   29

Maximum number of bits in 4 SDVL-encoded byte

Referenced by c_bytesSdvl(), code_UOR2_ID_bytes(), code_UOR2_RTP_bytes(), code_UOR2_TS_bytes(), decide_FO_packet(), decide_SO_packet(), and decode_extension3().

---

Function Documentation

int c_bytesSdvl	(	int	value,
		int	length
	)

Find out how many bytes are needed to represent the value using Self-Describing Variable-Length (SDVL) encoding.

See 4.5.6 in the RFC 3095 for details about SDVL encoding.

Parameters:

value	The value to encode
length	The length of the value to encode (-1 to let the SDVL encoding find the length itself)

Returns:

The size needed to represent the SDVL-encoded value

References MAX_BITS_IN_1_BYTE_SDVL, MAX_BITS_IN_2_BYTE_SDVL, MAX_BITS_IN_3_BYTE_SDVL, MAX_BITS_IN_4_BYTE_SDVL, and rohc_debugf.

Referenced by c_encodeSdvl(), code_cid_values(), code_EXT3_packet(), f_append_cid(), rtp_code_dynamic_rtp_part(), and rtp_header_flags_and_fields().

boolean c_encodeSdvl	(	unsigned char *	dest,
		int	value,
		int	length
	)

Encode a value using Self-Describing Variable-Length (SDVL) encoding.

See 4.5.6 in the RFC 3095 for details about SDVL encoding.

Parameters:

dest	The destination to write the SDVL-encoded to
value	The value to encode
length	The length of the value to encode

Returns:

Whether the SDVL encoding is successful or not (failure may be due to a value greater than 2^29)

References c_bytesSdvl(), ROHC_FALSE, and ROHC_TRUE.

Referenced by code_cid_values(), code_EXT3_packet(), f_append_cid(), rtp_code_dynamic_rtp_part(), and rtp_header_flags_and_fields().

int d_sdvalue_decode

(

const unsigned char *

data

)

Decode a Self-Describing Variable-Length (SDVL) value.

See 4.5.6 in the RFC 3095 for details about SDVL encoding.

Parameters:

data	The SDVL data to decode

Returns:

The decoded value

References GET_BIT_0_4, GET_BIT_0_5, GET_BIT_0_6, GET_BIT_0_7, GET_BIT_5_7, GET_BIT_6_7, and GET_BIT_7.

Referenced by c_deliver_feedback(), decode_extension3(), and rtp_decode_dynamic_rtp().

int d_sdvalue_size

(

const unsigned char *

data

)

Find out a size of the Self-Describing Variable-Length (SDVL) value.

See 4.5.6 in the RFC 3095 for details about SDVL encoding.

Parameters:

data	The SDVL data to analyze

Returns:

The size of the SDVL value (possible values are 1-4)

References GET_BIT_5_7, GET_BIT_6_7, GET_BIT_7, and rohc_debugf.

Referenced by c_deliver_feedback(), decode_extension3(), rtp_decode_dynamic_rtp(), rtp_detect_ir_dyn_size(), and rtp_detect_ir_size().

bool sdvl_can_value_be_encoded

(

uint32_t

value

)

Can the given value be encoded with SDVL?

See 4.5.6 in the RFC 3095 for details about SDVL encoding.

Parameters:

value

The value to encode

Returns:

Whether the value can be encoded with SDVL or not

Referenced by c_add_ts().
