ip.h File Reference

IP-agnostic packet. More...

#include <netinet/ip.h>
#include <netinet/ip6.h>
#include <string.h>

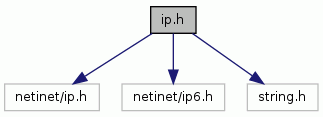

Include dependency graph for ip.h:

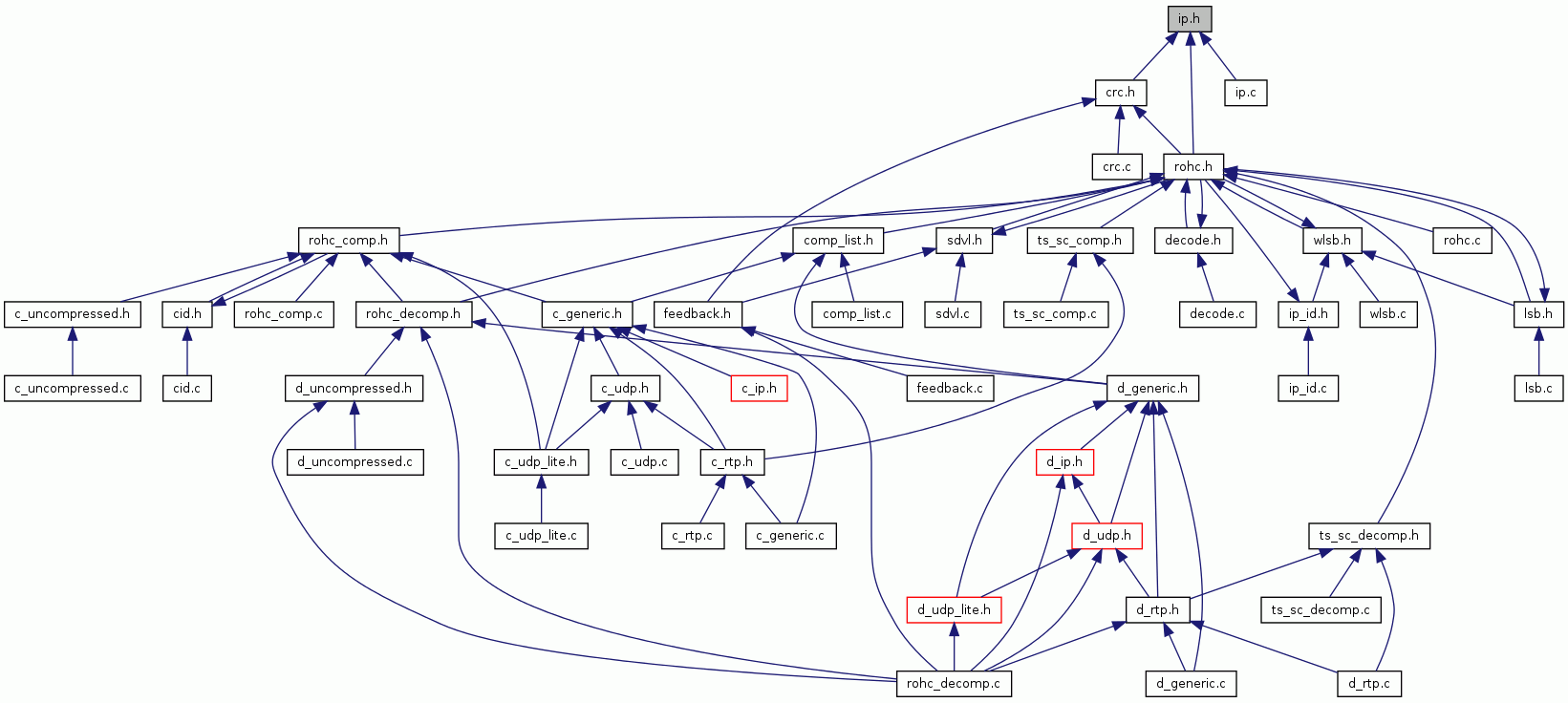

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ip_packet
	Defines an IP-agnostic packet that can handle an IPv4 or IPv6 packet. More...
struct	ip6_ahhdr
Defines
#define	IPV6_EXT_HOP_BY_HOP   0
#define	IPV6_EXT_DESTINATION   60
#define	IPV6_EXT_ROUTING   43
#define	IPV6_EXT_AUTH   51
#define	IP_GET_16_SUBFIELD(field, bitmask, offset)   ((ntohs(field) & (bitmask)) >> (offset))
	Get a subpart of a 16-bit IP field.
#define	IP_GET_32_SUBFIELD(field, bitmask, offset)   ((ntohl(field) & (bitmask)) >> (offset))
	Get a subpart of a 32-bit IP field.
#define	IP_SET_16_SUBFIELD(field, bitmask, offset, value)   (field) = (((field) & htons(~(bitmask))) | htons(((value) << (offset)) & (bitmask)))
	Set a subpart of a 16-bit IP field.
#define	IP_SET_32_SUBFIELD(field, bitmask, offset, value)   (field) = (((field) & htonl(~(bitmask))) | htonl(((value) << (offset)) & (bitmask)))
	Set a subpart of a 32-bit IP field.
#define	IPV4_DF_OFFSET   14
	The offset for the DF flag in an iphdr->frag_off variable.
#define	IPV4_GET_DF(ip4)   IP_GET_16_SUBFIELD((ip4).frag_off, IP_DF, IPV4_DF_OFFSET)
	Get the IPv4 Don't Fragment (DF) bit from an iphdr object.
#define	IPV4_SET_DF(ip4, value)   IP_SET_16_SUBFIELD((ip4)->frag_off, IP_DF, IPV4_DF_OFFSET, (value))
	Set the IPv4 Don't Fragment (DF) bit in an iphdr object.
#define	IPV6_VERSION_MASK   0xf0000000
	The bitmask for the Version field in an ip6_hdr->ip6_flow variable.
#define	IPV6_VERSION_OFFSET   28
	The offset for the Version field in an ip6_hdr->ip6_flow variable.
#define	IPV6_TC_MASK   0x0ff00000
	The bitmask for the Traffic Class (TC) field in an ip6_hdr->ip6_flow variable.
#define	IPV6_TC_OFFSET   20
	The offset for the Traffic Class (TC) field in an ip6_hdr->ip6_flow variable.
#define	IPV6_FLOW_LABEL_MASK   0x000fffff
	The bitmask for the FLow Label field in an ip6_hdr->ip6_flow variable.
#define	IPV6_GET_VERSION(ip6)   IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_VERSION_MASK, IPV6_VERSION_OFFSET)
	Get the IPv6 Version 4-bit field from ip6_hdr object.
#define	IPV6_SET_VERSION(ip6, value)   IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_VERSION_MASK, IPV6_VERSION_OFFSET, (value))
	Set the IPv6 Version 4-bit field in an ip6_hdr object.
#define	IPV6_GET_TC(ip6)   IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_TC_MASK, IPV6_TC_OFFSET)
	Get the IPv6 Traffic Class (TC) byte from an ip6_hdr object.
#define	IPV6_SET_TC(ip6, value)   IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_TC_MASK, IPV6_TC_OFFSET, (value))
	Set the IPv6 Traffic Class (TC) byte in an ip6_hdr object.
#define	IPV6_GET_FLOW_LABEL(ip6)   IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_FLOW_LABEL_MASK, 0)
	Get the IPv6 Flow Label 20-bit field from an ip6_hdr object.
#define	IPV6_SET_FLOW_LABEL(ip6, value)   IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_FLOW_LABEL_MASK, 0, (value))
	Set the IPv6 Flow Label 20-bit field in an ip6_hdr variable.
#define	IPV6_ADDR_FORMAT   "%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x"
	The format to print an IPv6 address.
#define	IPV6_ADDR(x)
	The data to print an IPv6 address in (struct in6_addr *) format.
#define	IPV6_ADDR_CMP(x, y)
	Compare two IPv6 addresses in (struct in6_addr *) format.
Enumerations
enum	ip_version { IPV4 = 4, IPV6 = 6, IP_UNKNOWN }
	IP version. More...
Functions
int	ip_create (struct ip_packet *ip, unsigned char *packet, unsigned int size)
	Create an IP packet from raw data.
int	ip_get_inner_packet (struct ip_packet outer, struct ip_packet *inner)
	Get the inner IP packet (IP in IP)
void	ip_new (struct ip_packet *ip, ip_version version)
	Create an empty IP packet.
unsigned char *	ip_get_raw_data (struct ip_packet ip)
	Get the IP raw data (header + payload)
unsigned char *	ip_get_next_header (const struct ip_packet *ip, uint8_t *type)
	Get the IP next header.
unsigned char *	ip_get_next_layer (const struct ip_packet *ip)
	Get the next header (but skip IP extensions)
unsigned char *	ip_get_next_ext_header_from_ip (const struct ip_packet *ip, uint8_t *type)
	Get the next extension header of IPv6 packets from an IPv6 header.
unsigned char *	ip_get_next_ext_header_from_ext (const unsigned char *ext, uint8_t *type)
	Get the next extension header of IPv6 packets from another extension.
unsigned int	ip_get_totlen (struct ip_packet ip)
	Get the total length of an IP packet.
unsigned int	ip_get_hdrlen (struct ip_packet ip)
	Get the length of an IP header.
unsigned int	ip_get_plen (struct ip_packet ip)
	Get the length of an IP payload.
int	ip_is_fragment (struct ip_packet ip)
	Whether the IP packet is an IP fragment or not.
ip_version	ip_get_version (struct ip_packet ip)
	Get the IP version of an IP packet.
unsigned int	ip_get_protocol (struct ip_packet ip)
	Get the protocol transported by an IP packet.
unsigned int	ext_get_protocol (unsigned char *ext)
	Get the protocol transported by the last IPv6 extension.
unsigned int	ip_get_tos (struct ip_packet ip)
	Get the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.
unsigned int	ip_get_ttl (struct ip_packet ip)
	Get the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.
void	ip_set_protocol (struct ip_packet *ip, uint8_t value)
	Set the protocol transported by an IP packet.
void	ip_set_tos (struct ip_packet *ip, uint8_t value)
	Set the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.
void	ip_set_ttl (struct ip_packet *ip, uint8_t value)
	Set the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.
void	ip_set_saddr (struct ip_packet *ip, const unsigned char *value)
	Set the Source Address of an IP packet.
void	ip_set_daddr (struct ip_packet *ip, const unsigned char *value)
	Set the Destination Address of an IP packet.
struct iphdr *	ipv4_get_header (const struct ip_packet *const ip)
	Get the IPv4 header.
int	ipv4_get_id (struct ip_packet ip)
	Get the IP-ID of an IPv4 packet.
int	ipv4_get_id_nbo (struct ip_packet ip, unsigned int nbo)
	Get the IP-ID of an IPv4 packet in Network Byte Order.
int	ipv4_get_df (struct ip_packet ip)
	Get the Don't Fragment (DF) bit of an IPv4 packet.
uint32_t	ipv4_get_saddr (struct ip_packet ip)
	Get the source address of an IPv4 packet.
uint32_t	ipv4_get_daddr (struct ip_packet ip)
	Get the destination address of an IPv4 packet.
void	ipv4_set_id (struct ip_packet *ip, int value)
	Set the IP-ID of an IPv4 packet.
void	ipv4_set_df (struct ip_packet *ip, int value)
	Set the Don't Fragment (DF) bit of an IPv4 packet.
struct ip6_hdr *	ipv6_get_header (const struct ip_packet *const ip)
	Get the IPv6 header.
uint32_t	ipv6_get_flow_label (struct ip_packet ip)
	Get the flow label of an IPv6 packet.
struct in6_addr *	ipv6_get_saddr (struct ip_packet *ip)
	Get the source address of an IPv6 packet.
struct in6_addr *	ipv6_get_daddr (struct ip_packet *ip)
	Get the destination address of an IPv6 packet.
void	ipv6_set_flow_label (struct ip_packet *ip, uint32_t value)
	Set the flow label of an IPv6 packet.
unsigned short	ip_get_extension_size (unsigned char *ext)
	Get the size of an IPv6 extension.
unsigned short	ip_get_total_extension_size (struct ip_packet ip)
	Get the size of the extension list.
int	get_ip_version (const unsigned char *packet, unsigned int size, ip_version *version)

---

Detailed Description

IP-agnostic packet.

Author:

Didier Barvaux <didier.barvaux@toulouse.viveris.com>

---

Define Documentation

#define IP_GET_16_SUBFIELD	(		field,
			bitmask,
			offset
	)		((ntohs(field) & (bitmask)) >> (offset))

Get a subpart of a 16-bit IP field.

#define IP_GET_32_SUBFIELD	(		field,
			bitmask,
			offset
	)		((ntohl(field) & (bitmask)) >> (offset))

Get a subpart of a 32-bit IP field.

#define IP_SET_16_SUBFIELD	(		field,
			bitmask,
			offset,
			value
	)		(field) = (((field) & htons(~(bitmask))) | htons(((value) << (offset)) & (bitmask)))

Set a subpart of a 16-bit IP field.

#define IP_SET_32_SUBFIELD	(		field,
			bitmask,
			offset,
			value
	)		(field) = (((field) & htonl(~(bitmask))) | htonl(((value) << (offset)) & (bitmask)))

Set a subpart of a 32-bit IP field.

#define IPV4_DF_OFFSET   14

The offset for the DF flag in an iphdr->frag_off variable.

#define IPV4_GET_DF

(

ip4

)

IP_GET_16_SUBFIELD((ip4).frag_off, IP_DF, IPV4_DF_OFFSET)

Get the IPv4 Don't Fragment (DF) bit from an iphdr object.

Referenced by changed_dynamic_one_hdr(), and ipv4_get_df().

#define IPV4_SET_DF	(		ip4,
			value
	)		IP_SET_16_SUBFIELD((ip4)->frag_off, IP_DF, IPV4_DF_OFFSET, (value))

Set the IPv4 Don't Fragment (DF) bit in an iphdr object.

Referenced by ipv4_set_df().

#define IPV6_ADDR

(

x

)

Value:

(x)->s6_addr[0], (x)->s6_addr[1], (x)->s6_addr[2], (x)->s6_addr[3], \
        (x)->s6_addr[4], (x)->s6_addr[5], (x)->s6_addr[6], (x)->s6_addr[7], \
        (x)->s6_addr[8], (x)->s6_addr[9], (x)->s6_addr[10], (x)->s6_addr[11], \
        (x)->s6_addr[12], (x)->s6_addr[13], (x)->s6_addr[14], (x)->s6_addr[15]

The data to print an IPv6 address in (struct in6_addr *) format.

Referenced by code_ipv6_static_part(), and d_decode_static_ip6().

#define IPV6_ADDR_CMP	(		x,
			y
	)

Value:

((x)->s6_addr32[0] == (y)->s6_addr32[0] && \
         (x)->s6_addr32[1] == (y)->s6_addr32[1] && \
         (x)->s6_addr32[2] == (y)->s6_addr32[2] && \
         (x)->s6_addr32[3] == (y)->s6_addr32[3])

Compare two IPv6 addresses in (struct in6_addr *) format.

Referenced by c_ip_check_context(), c_udp_check_context(), and c_udp_lite_check_context().

#define IPV6_ADDR_FORMAT   "%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x"

The format to print an IPv6 address.

Referenced by code_ipv6_static_part(), and d_decode_static_ip6().

#define IPV6_EXT_AUTH   51

Next header code for Authentification Header

Referenced by decide_algo(), decide_packet(), ext_get_protocol(), get_index_ipv6_table(), ip_get_next_ext_header_from_ext(), ip_get_next_ext_header_from_ip(), ip_get_next_layer(), ip_get_plen(), ip_get_protocol(), ipv6_ext_compute_crc_dynamic(), and ipv6_ext_compute_crc_static().

#define IPV6_EXT_DESTINATION   60

Next header code for Destination options

Referenced by decide_algo(), decide_packet(), ext_get_protocol(), get_index_ipv6_table(), ip_get_next_ext_header_from_ext(), ip_get_next_ext_header_from_ip(), ip_get_next_layer(), ip_get_plen(), and ip_get_protocol().

#define IPV6_EXT_HOP_BY_HOP   0

Next header code for Hop-by-Hop options

Referenced by decide_algo(), decide_packet(), ext_get_protocol(), get_index_ipv6_table(), ip_get_next_ext_header_from_ext(), ip_get_next_ext_header_from_ip(), ip_get_next_layer(), ip_get_plen(), and ip_get_protocol().

#define IPV6_EXT_ROUTING   43

Next header code for Routing extension

Referenced by decide_algo(), decide_packet(), ext_get_protocol(), get_index_ipv6_table(), ip_get_next_ext_header_from_ext(), ip_get_next_ext_header_from_ip(), ip_get_next_layer(), ip_get_plen(), and ip_get_protocol().

#define IPV6_FLOW_LABEL_MASK   0x000fffff

The bitmask for the FLow Label field in an ip6_hdr->ip6_flow variable.

#define IPV6_GET_FLOW_LABEL

(

ip6

)

IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_FLOW_LABEL_MASK, 0)

Get the IPv6 Flow Label 20-bit field from an ip6_hdr object.

Referenced by c_ip_check_context(), c_udp_check_context(), c_udp_lite_check_context(), and ipv6_get_flow_label().

#define IPV6_GET_TC

(

ip6

)

IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_TC_MASK, IPV6_TC_OFFSET)

Get the IPv6 Traffic Class (TC) byte from an ip6_hdr object.

Referenced by changed_fields(), and ip_get_tos().

#define IPV6_GET_VERSION

(

ip6

)

IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_VERSION_MASK, IPV6_VERSION_OFFSET)

Get the IPv6 Version 4-bit field from ip6_hdr object.

#define IPV6_SET_FLOW_LABEL	(		ip6,
			value
	)		IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_FLOW_LABEL_MASK, 0, (value))

Set the IPv6 Flow Label 20-bit field in an ip6_hdr variable.

Referenced by ipv6_set_flow_label().

#define IPV6_SET_TC	(		ip6,
			value
	)		IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_TC_MASK, IPV6_TC_OFFSET, (value))

Set the IPv6 Traffic Class (TC) byte in an ip6_hdr object.

Referenced by ip_set_tos().

#define IPV6_SET_VERSION	(		ip6,
			value
	)		IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_VERSION_MASK, IPV6_VERSION_OFFSET, (value))

Set the IPv6 Version 4-bit field in an ip6_hdr object.

Referenced by ip_new().

#define IPV6_TC_MASK   0x0ff00000

The bitmask for the Traffic Class (TC) field in an ip6_hdr->ip6_flow variable.

#define IPV6_TC_OFFSET   20

The offset for the Traffic Class (TC) field in an ip6_hdr->ip6_flow variable.

#define IPV6_VERSION_MASK   0xf0000000

The bitmask for the Version field in an ip6_hdr->ip6_flow variable.

#define IPV6_VERSION_OFFSET   28

The offset for the Version field in an ip6_hdr->ip6_flow variable.

---

Enumeration Type Documentation

enum ip_version

IP version.

Enumerator:

IPV4	IP version 4.
IPV6	IP version 6.
IP_UNKNOWN	not IP

---

Function Documentation

unsigned int ext_get_protocol

(

unsigned char *

ext

)

Get the protocol transported by the last IPv6 extension.

Parameters:

ext	The first extension

Returns:

The protocol number that identify the protocol transported by the given IP extension

References ext_get_protocol(), IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, and IPV6_EXT_ROUTING.

Referenced by ext_get_protocol(), and ip_get_protocol().

int get_ip_version	(	const unsigned char *	packet,
		unsigned int	size,
		ip_version *	version
	)

Private functions used by the IP module: (please do not use directly)

References IP_UNKNOWN, IPV4, and IPV6.

Referenced by compute_crc_dynamic(), compute_crc_static(), and ip_create().

int ip_create	(	struct ip_packet *	ip,
		unsigned char *	packet,
		unsigned int	size
	)

Create an IP packet from raw data.

Parameters:

ip	OUT: The IP packet to create
packet	The IP packet data
size	The length of the IP packet data

Returns:

Whether the IP packet was successfully created or not

References ip_packet::data, get_ip_version(), ip_packet::header, ip_get_hdrlen(), ip_get_totlen(), IP_UNKNOWN, IPV4, IPV6, rohc_debugf, ip_packet::size, ip_packet::v4, ip_packet::v6, version, and ip_packet::version.

Referenced by ip_get_inner_packet(), and rohc_compress().

unsigned short ip_get_extension_size

(

unsigned char *

ext

)

Get the size of an IPv6 extension.

Parameters:

ext	The extension

Returns:

The size of the extension

Referenced by ip_get_total_extension_size(), ipv6_ext_compute_crc_dynamic(), and ipv6_ext_compute_crc_static().

unsigned int ip_get_hdrlen

(

struct ip_packet

ip

)

Get the length of an IP header.

Parameters:

ip	The IP packet to analyze

Returns:

The length of the IP header

References ip_packet::header, IPV4, ip_packet::v4, and ip_packet::version.

Referenced by c_generic_encode(), c_get_profile_from_packet(), c_udp_lite_encode(), d_generic_decode_ir(), decode_irdyn(), do_decode_uo0_and_uo1(), do_decode_uor2(), and ip_create().

int ip_get_inner_packet	(	struct ip_packet	outer,
		struct ip_packet *	inner
	)

Get the inner IP packet (IP in IP)

Parameters:

outer	The outer IP packet to analyze
inner	The inner IP packet to create

Returns:

Whether the inner IP header is successfully created or not

References ip_create(), ip_get_next_layer(), ip_get_plen(), and rohc_debugf.

Referenced by c_generic_create(), c_generic_encode(), c_ip_check_context(), c_rtp_check_context(), c_rtp_create(), c_rtp_encode(), c_udp_check_context(), c_udp_create(), c_udp_encode(), c_udp_lite_check_context(), c_udp_lite_create(), c_udp_lite_encode(), and rohc_compress().

unsigned char* ip_get_next_ext_header_from_ext	(	const unsigned char *	ext,
		uint8_t *	type
	)

Get the next extension header of IPv6 packets from another extension.

Parameters:

ext	The extension to analyse
type	OUT: The type of the next header If there is no next header the value must be ignored

Returns:

The next extension header, NULL if there is no more extension

References IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, and IPV6_EXT_ROUTING.

Referenced by get_index_ipv6_table(), get_ipv6_extension(), ip_get_total_extension_size(), ipv6_ext_compute_crc_dynamic(), and ipv6_ext_compute_crc_static().

unsigned char* ip_get_next_ext_header_from_ip	(	const struct ip_packet *	ip,
		uint8_t *	type
	)

Get the next extension header of IPv6 packets from an IPv6 header.

Parameters:

ip	The IP packet to analyze
type	OUT: The type of the next header If there is no next header the value must be ignored

Returns:

The next extension header, NULL if there is no extension

References ip_get_next_header(), IPV6, IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, IPV6_EXT_ROUTING, and ip_packet::version.

Referenced by get_index_ipv6_table(), get_ipv6_extension(), and ip_get_total_extension_size().

unsigned char* ip_get_next_header	(	const struct ip_packet *	ip,
		uint8_t *	type
	)

Get the IP next header.

Parameters:

ip	The IP packet to analyze
type	OUT: The type of the next header

Returns:

The next header

References ip_packet::data, ip_packet::header, IPV4, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by ip_get_next_ext_header_from_ip(), and ip_get_next_layer().

unsigned char* ip_get_next_layer

(

const struct ip_packet *

ip

)

Get the next header (but skip IP extensions)

Parameters:

ip	The IP packet to analyze

Returns:

The next header that is not an IP extension

References ip_get_next_header(), IPV6, IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, IPV6_EXT_ROUTING, and ip_packet::version.

Referenced by c_generic_encode(), c_get_profile_from_packet(), c_rtp_check_context(), c_rtp_create(), c_rtp_encode(), c_udp_check_context(), c_udp_create(), c_udp_encode(), c_udp_lite_check_context(), c_udp_lite_create(), c_udp_lite_encode(), ip_get_inner_packet(), rtp_header_flags_and_fields(), and update_variables().

unsigned int ip_get_plen

(

struct ip_packet

ip

)

Get the length of an IP payload.

Parameters:

ip	The IP packet to analyze

Returns:

The length of the IP payload

References ip_packet::header, ip_get_total_extension_size(), IPV4, IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, IPV6_EXT_ROUTING, size_list(), ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by c_get_profile_from_packet(), and ip_get_inner_packet().

unsigned int ip_get_protocol

(

struct ip_packet

ip

)

Get the protocol transported by an IP packet.

The protocol returned is the one transported by the last known IP extension header if any is found.

Parameters:

ip	The IP packet to analyze

Returns:

The protocol number that identify the protocol transported by the given IP packet

References ip_packet::data, ext_get_protocol(), ip_packet::header, IPV4, IPV6, IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, IPV6_EXT_ROUTING, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by c_assessment_size(), c_generic_create(), c_generic_encode(), c_ip_check_context(), c_rtp_check_context(), c_rtp_create(), c_rtp_encode(), c_udp_check_context(), c_udp_create(), c_udp_encode(), c_udp_lite_check_context(), c_udp_lite_create(), c_udp_lite_encode(), changed_fields(), code_ipv4_static_part(), code_ipv6_static_part(), d_decode_static_ip4(), d_generic_decode_ir(), d_generic_detect_ir_dyn_size(), header_fields(), and rohc_compress().

unsigned char* ip_get_raw_data

(

struct ip_packet

ip

)

Get the IP raw data (header + payload)

Parameters:

ip	The IP packet to analyze

Returns:

The IP raw data (header + payload)

References ip_packet::data.

Referenced by rohc_compress(), and uncompressed_code_normal_packet().

unsigned int ip_get_tos

(

struct ip_packet

ip

)

Get the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.

Parameters:

ip	The IP packet to analyze

Returns:

The TOS or TC value

References ip_packet::header, IPV4, IPV6_GET_TC, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by changed_fields(), code_ipv4_dynamic_part(), code_ipv6_dynamic_part(), d_decode_dynamic_ip4(), d_decode_dynamic_ip6(), and header_fields().

unsigned short ip_get_total_extension_size

(

struct ip_packet

ip

)

Get the size of the extension list.

Parameters:

ip	The packet to analyse

Returns:

The size of extension list

References ip_get_extension_size(), ip_get_next_ext_header_from_ext(), and ip_get_next_ext_header_from_ip().

Referenced by c_generic_encode(), and ip_get_plen().

unsigned int ip_get_totlen

(

struct ip_packet

ip

)

Get the total length of an IP packet.

Parameters:

ip	The IP packet to analyze

Returns:

The total length of the IP packet

References ip_packet::header, IPV4, IPV6, ip_packet::v4, and ip_packet::version.

Referenced by ip_create(), and rohc_compress().

unsigned int ip_get_ttl

(

struct ip_packet

ip

)

Get the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.

Parameters:

ip	The IP packet to analyze

Returns:

The TTL or HL value

References ip_packet::header, IPV4, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by changed_fields(), code_ipv4_dynamic_part(), code_ipv6_dynamic_part(), d_decode_dynamic_ip4(), d_decode_dynamic_ip6(), and header_fields().

ip_version ip_get_version

(

struct ip_packet

ip

)

Get the IP version of an IP packet.

Parameters:

ip	The IP packet to analyze

Returns:

The version of the IP packet

References ip_packet::version.

Referenced by build_uncompressed_ip(), c_assessment_size(), c_generic_encode(), c_init_header_info(), c_ip_check_context(), c_udp_check_context(), c_udp_lite_check_context(), changed_dynamic_one_hdr(), changed_fields(), check_ip_identification(), code_EXT3_packet(), code_generic_dynamic_part(), code_generic_static_part(), code_UO_packet_tail(), d_decode_dynamic_ip(), d_generic_decode(), d_generic_decode_ir(), d_generic_detect_ir_dyn_size(), decide_algo(), decode_inner_header_flags(), decode_outer_header_flags(), decode_uo0(), decode_uo1(), decode_uor2(), do_decode_uo0_and_uo1(), do_decode_uor2(), find_packet_type(), ip_decode_dynamic_ip(), rtp_decode_dynamic_rtp(), uncompressed_code_packet(), and update_variables().

int ip_is_fragment

(

struct ip_packet

ip

)

Whether the IP packet is an IP fragment or not.

The IP packet is a fragment if the MF (More Fragments) bit is set or the Fragment Offset field is non-zero.

Parameters:

ip	The IP packet to analyze

Returns:

Whether the IP packet is an IP fragment or not

References ip_packet::header, IPV4, ip_packet::v4, and ip_packet::version.

Referenced by c_generic_encode(), c_get_profile_from_packet(), c_ip_check_context(), c_udp_check_context(), and c_udp_lite_check_context().

void ip_new	(	struct ip_packet *	ip,
		ip_version	version
	)

Create an empty IP packet.

Parameters:

ip	OUT: The IP packet to create
version	The version of the IP packet

Returns:

Whether the IP packet was successfully created or not

References ip_packet::header, IPV4, IPV6_SET_VERSION, ip_packet::v4, ip_packet::v6, ip_packet::version, and version.

Referenced by d_decode_static_ip().

void ip_set_daddr	(	struct ip_packet *	ip,
		const unsigned char *	value
	)

Set the Destination Address of an IP packet.

Parameters:

ip	The IP packet to modify
value	The IP address value

References ip_packet::header, IPV4, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by d_decode_static_ip4(), and d_decode_static_ip6().

void ip_set_protocol	(	struct ip_packet *	ip,
		uint8_t	value
	)

Set the protocol transported by an IP packet.

Parameters:

ip	The IP packet to modify
value	The protocol value

References ip_packet::header, IPV4, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by d_decode_static_ip4(), d_decode_static_ip6(), and decode_inner_header_flags().

void ip_set_saddr	(	struct ip_packet *	ip,
		const unsigned char *	value
	)

Set the Source Address of an IP packet.

Parameters:

ip	The IP packet to modify
value	The IP address value

References ip_packet::header, IPV4, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by d_decode_static_ip4(), and d_decode_static_ip6().

void ip_set_tos	(	struct ip_packet *	ip,
		uint8_t	value
	)

Set the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.

Parameters:

ip	The IP packet to modify
value	The TOS/TC value

References ip_packet::header, IPV4, IPV6_SET_TC, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by d_decode_dynamic_ip4(), d_decode_dynamic_ip6(), and decode_inner_header_flags().

void ip_set_ttl	(	struct ip_packet *	ip,
		uint8_t	value
	)

Set the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.

Parameters:

ip	The IP packet to modify
value	The TTL/HL value

References ip_packet::header, IPV4, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by d_decode_dynamic_ip4(), d_decode_dynamic_ip6(), and decode_inner_header_flags().

uint32_t ipv4_get_daddr

(

struct ip_packet

ip

)

Get the destination address of an IPv4 packet.

Parameters:

ip	The IPv4 packet to analyze

Returns:

The source address of the given IPv4 packet

References ip_packet::header, IPV4, ip_packet::v4, and ip_packet::version.

Referenced by c_ip_check_context(), c_udp_check_context(), c_udp_lite_check_context(), code_ipv4_static_part(), and d_decode_static_ip4().

int ipv4_get_df

(

struct ip_packet

ip

)

Get the Don't Fragment (DF) bit of an IPv4 packet.

Parameters:

ip	The IP packet to analyze

Returns:

The DF bit of the IPv4 header if the given packet is IPv4, -1 otherwise

References ip_packet::header, IPV4, IPV4_GET_DF, ip_packet::v4, and ip_packet::version.

Referenced by changed_dynamic_one_hdr(), code_ipv4_dynamic_part(), d_decode_dynamic_ip4(), decode_inner_header_flags(), and header_flags().

struct iphdr* ipv4_get_header

(

const struct ip_packet *const

ip

)

[read]

Get the IPv4 header.

Parameters:

ip	The IP packet to analyze

Returns:

The IP header if IPv4, NULL otherwise

References ip_packet::header, IPV4, ip_packet::v4, and ip_packet::version.

Referenced by c_generic_encode(), and c_init_header_info().

int ipv4_get_id

(

struct ip_packet

ip

)

Get the IP-ID of an IPv4 packet.

The IP-ID value is returned as-is (ie. not automatically converted to the host byte order).

Parameters:

ip	The IP packet to analyze

Returns:

The IP-ID if the given packet is IPv4, -1 otherwise

References ipv4_get_id_nbo().

Referenced by c_generic_encode(), check_ip_identification(), code_UO_packet_tail(), d_decode_dynamic_ip4(), decode_extension3(), decode_outer_header_flags(), do_decode_uo0_and_uo1(), do_decode_uor2(), ip_decode_dynamic_ip(), rtp_decode_dynamic_rtp(), and update_variables().

int ipv4_get_id_nbo	(	struct ip_packet	ip,
		unsigned int	nbo
	)

Get the IP-ID of an IPv4 packet in Network Byte Order.

Parameters:

ip	The IP packet to analyze
nbo	The NBO flag (if RND = 1, use NBO = 1)

Returns:

The IP-ID if the given packet is IPv4, -1 otherwise

References ip_packet::header, IPV4, ip_packet::v4, and ip_packet::version.

Referenced by code_EXT3_packet(), code_ipv4_dynamic_part(), header_fields(), and ipv4_get_id().

uint32_t ipv4_get_saddr

(

struct ip_packet

ip

)

Get the source address of an IPv4 packet.

Parameters:

ip	The IPv4 packet to analyze

Returns:

The source address of the given IPv4 packet

References ip_packet::header, IPV4, ip_packet::v4, and ip_packet::version.

Referenced by c_ip_check_context(), c_udp_check_context(), c_udp_lite_check_context(), code_ipv4_static_part(), and d_decode_static_ip4().

void ipv4_set_df	(	struct ip_packet *	ip,
		int	value
	)

Set the Don't Fragment (DF) bit of an IPv4 packet.

Parameters:

ip	The IP packet to modify
value	The value of the DF bit

References ip_packet::header, IPV4, IPV4_SET_DF, ip_packet::v4, and ip_packet::version.

Referenced by d_decode_dynamic_ip4(), and decode_inner_header_flags().

void ipv4_set_id	(	struct ip_packet *	ip,
		int	value
	)

Set the IP-ID of an IPv4 packet.

The IP-ID value is set as-is (ie. not automatically converted to the host byte order).

Parameters:

ip	The IP packet to modify
value	The IP-ID value

References ip_packet::header, IPV4, ip_packet::v4, and ip_packet::version.

Referenced by d_decode_dynamic_ip4(), decode_extension3(), decode_outer_header_flags(), do_decode_uo0_and_uo1(), and do_decode_uor2().

struct in6_addr* ipv6_get_daddr

(

struct ip_packet *

ip

)

[read]

Get the destination address of an IPv6 packet.

Parameters:

ip	The IPv6 packet to analyze

Returns:

The source address of the given IPv6 packet

References ip_packet::header, IPV6, ip_packet::v6, and ip_packet::version.

Referenced by c_ip_check_context(), c_udp_check_context(), c_udp_lite_check_context(), code_ipv6_static_part(), and d_decode_static_ip6().

uint32_t ipv6_get_flow_label

(

struct ip_packet

ip

)

Get the flow label of an IPv6 packet.

Parameters:

ip	The IPv6 packet to analyze

Returns:

The flow label of the given IPv6 packet

References ip_packet::header, IPV6, IPV6_GET_FLOW_LABEL, ip_packet::v6, and ip_packet::version.

Referenced by c_ip_check_context(), c_udp_check_context(), c_udp_lite_check_context(), code_ipv6_static_part(), and d_decode_static_ip6().

struct ip6_hdr* ipv6_get_header

(

const struct ip_packet *const

ip

)

[read]

Get the IPv6 header.

Parameters:

ip	The IP packet to analyze

Returns:

The IP header if IPv6, NULL otherwise

References ip_packet::header, IPV6, ip_packet::v6, and ip_packet::version.

Referenced by c_generic_encode(), and c_init_header_info().

struct in6_addr* ipv6_get_saddr

(

struct ip_packet *

ip

)

[read]

Get the source address of an IPv6 packet.

Parameters:

ip	The IPv6 packet to analyze

Returns:

The source address of the given IPv6 packet

References ip_packet::header, IPV6, ip_packet::v6, and ip_packet::version.

Referenced by c_ip_check_context(), c_udp_check_context(), c_udp_lite_check_context(), code_ipv6_static_part(), and d_decode_static_ip6().

void ipv6_set_flow_label	(	struct ip_packet *	ip,
		uint32_t	value
	)

Set the flow label of an IPv6 packet.

Parameters:

ip	The IPv6 packet to modify
value	The flow label value

References ip_packet::header, IPV6, IPV6_SET_FLOW_LABEL, ip_packet::v6, and ip_packet::version.

Referenced by d_decode_static_ip6().
