ROHC compression routines. More...

#include "rohc.h"
#include "rohc_packets.h"
#include <stdlib.h>
#include <stdbool.h>

Include dependency graph for rohc_comp.h:

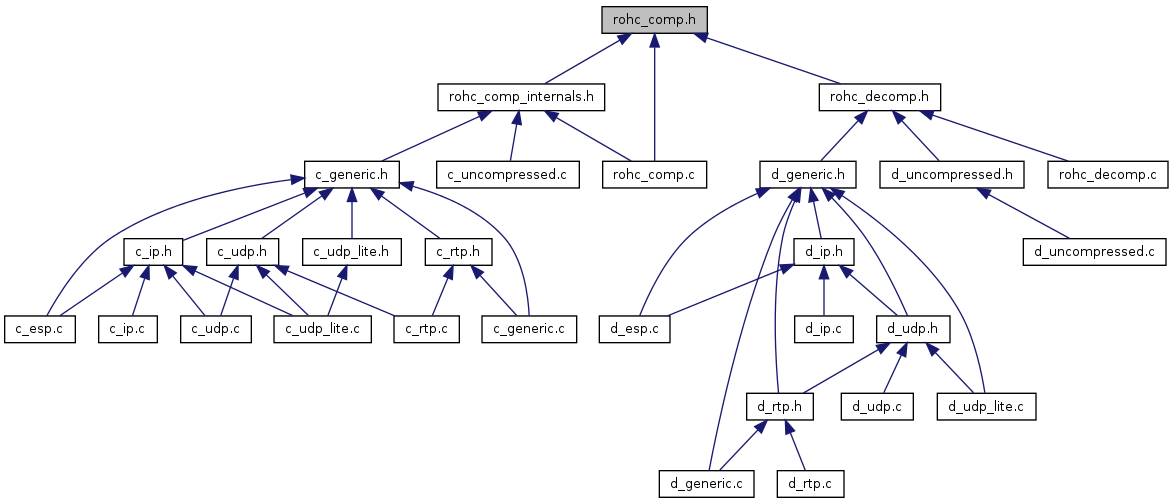

This graph shows which files directly or indirectly include this file:

Data Structures
struct	rohc_comp_last_packet_info_t
Defines
#define	ROHC_EXPORT
Typedefs
typedef int(*	rohc_comp_random_cb_t )(const struct rohc_comp const comp, void const user_context) __attribute__((nonnull(1)))
Enumerations
enum	rohc_c_state { IR = 1, FO = 2, SO = 3 }
	The different ROHC compressor states. More...
Functions
struct rohc_comp *ROHC_EXPORT	rohc_alloc_compressor (int max_cid, int jam_use, int adapt_size, int encap_size)
	Create one ROHC compressor.
void ROHC_EXPORT	rohc_free_compressor (struct rohc_comp *comp)
	Destroy one ROHC compressor.
bool ROHC_EXPORT	rohc_comp_set_random_cb (struct rohc_comp const comp, rohc_comp_random_cb_t callback, void const user_context) __attribute__((nonnull(1
bool ROHC_EXPORT int ROHC_EXPORT	rohc_compress (struct rohc_comp comp, unsigned char ibuf, int isize, unsigned char *obuf, int osize)
	Compress a ROHC packet.
int ROHC_EXPORT	rohc_c_is_enabled (struct rohc_comp *comp)
	Whether the ROHC compressor is enabled or not.
int ROHC_EXPORT	rohc_c_using_small_cid (struct rohc_comp *comp)
	Whether the compressor uses small CID or not.
void ROHC_EXPORT	rohc_activate_profile (struct rohc_comp *comp, int profile)
	Activate a profile for a compressor.
void ROHC_EXPORT	rohc_c_set_header (struct rohc_comp *compressor, int value)
	Set the maximal header size. The maximal header size is ignored for the moment.
void ROHC_EXPORT	rohc_c_set_mrru (struct rohc_comp *compressor, int value)
	Set the Maximum Reconstructed Reception Unit (MRRU). The MRRU is ignored for the moment.
void ROHC_EXPORT	rohc_c_set_max_cid (struct rohc_comp *compressor, int value)
	Set the maximal CID value the compressor should use.
void ROHC_EXPORT	rohc_c_set_large_cid (struct rohc_comp *compressor, int value)
	Tell the compressor to use large CIDs.
void ROHC_EXPORT	rohc_c_set_enable (struct rohc_comp *compressor, int value)
	Enable the ROHC compressor.
void ROHC_EXPORT	c_piggyback_feedback (struct rohc_comp comp, unsigned char packet, int size)
	Add a feedback packet to the next outgoing ROHC packet (piggybacking)
void ROHC_EXPORT	c_deliver_feedback (struct rohc_comp comp, unsigned char feedback, int size)
	Callback called by a decompressor to deliver a feedback packet to the compressor.
int ROHC_EXPORT	rohc_feedback_flush (struct rohc_comp comp, unsigned char obuf, int osize)
	Send as much feedback data as possible.
bool	rohc_comp_set_wlsb_window_width (struct rohc_comp *const comp, const size_t width) __attribute__((nonnull(1)
bool	rohc_comp_set_periodic_refreshes (struct rohc_comp *const comp, const size_t ir_timeout, const size_t fo_timeout) __attribute__((nonnull(1)
int ROHC_EXPORT	rohc_c_info (char *buffer)
	Get information about available compression profiles.
int ROHC_EXPORT	rohc_c_statistics (struct rohc_comp comp, unsigned int indent, char buffer)
	Get information about a ROHC compressor.
int ROHC_EXPORT	rohc_c_context (struct rohc_comp comp, int cid, unsigned int indent, char buffer)
	Get information about a compression context.
int ROHC_EXPORT	rohc_comp_get_last_packet_info (const struct rohc_comp const comp, rohc_comp_last_packet_info_t const info)
	Get some information about the last compressed packet.
const char *ROHC_EXPORT	rohc_comp_get_state_descr (const rohc_c_state state)
	Give a description for the given ROHC compression context state.
Variables
bool	warn_unused_result

Detailed Description

ROHC compression routines.

Author:: Didier Barvaux <didier.barvaux@toulouse.viveris.com>; The hackers from ROHC for Linux

Define Documentation

#define ROHC_EXPORT

Macro that handles DLL export declarations gracefully

Typedef Documentation

typedef int(* rohc_comp_random_cb_t)(const struct rohc_comp *const comp, void *const user_context) __attribute__((nonnull(1)))

The prototype of the callback for random numbers

Enumeration Type Documentation

enum rohc_c_state

The different ROHC compressor states.

See 4.3.1 in the RFC 3095.

If you add a new compressor state, please also add the corresponding textual description in rohc_comp_get_state_descr.

Enumerator:

IR	The Initialization and Refresh (IR) state
FO	The First Order (FO) state
SO	The Second Order (SO) state

Function Documentation

void ROHC_EXPORT c_deliver_feedback	(	struct rohc_comp *	comp,
		unsigned char *	packet,
		int	size
	)

Callback called by a decompressor to deliver a feedback packet to the compressor.

When feedback is received by the decompressor, this function is called and delivers the feedback to the right profile/context of the compressor.

Parameters:

comp	The ROHC compressor
packet	The feedback data
size	The length of the feedback packet

References c_feedback::acktype, c_feedback::cid, medium::cid_type, d_decode_add_cid(), d_is_add_cid(), c_feedback::data, c_profile::feedback, rohc_comp::medium, c_context::num_recv_feedbacks, c_context::profile, rohc_debugf, ROHC_LARGE_CID, sdvl_decode(), c_feedback::size, c_feedback::specific_offset, c_feedback::specific_size, c_feedback::type, and zfree.

void ROHC_EXPORT c_piggyback_feedback	(	struct rohc_comp *	comp,
		unsigned char *	feedback,
		int	size
	)

Add a feedback packet to the next outgoing ROHC packet (piggybacking)

Parameters:

comp	The ROHC compressor
feedback	The feedback data
size	The length of the feedback packet

References rohc_feedback::data, FEEDBACK_RING_SIZE, rohc_comp::feedbacks, rohc_comp::feedbacks_first, rohc_comp::feedbacks_next, rohc_feedback::length, and rohc_debugf.

Referenced by d_change_mode_feedback(), and d_optimistic_feedback().

int ROHC_EXPORT rohc_c_context	(	struct rohc_comp *	comp,
		int	cid,
		unsigned int	indent,
		char *	buffer
	)

Get information about a compression context.

This function outputs XML.

Parameters:

comp	The ROHC compressor
cid	The CID of the compressor context to output information about
indent	The indent level to beautify the XML output
buffer	The buffer where to store the information

Returns:: The length of the data stored in the buffer if successful, -2 if the given CID is too large, -1 if the given CID is unused or an error occurs

References c_mean_wlsb(), c_sum_wlsb(), c_context::cid, rohc_comp::contexts, c_profile::description, c_context::first_used, c_context::header_16_compressed, c_context::header_16_uncompressed, c_context::header_compressed_size, c_context::header_uncompressed_size, c_context::latest_used, c_context::mode, rohc_comp::num_contexts, c_context::num_recv_feedbacks, c_context::num_sent_ir, c_context::num_sent_ir_dyn, c_context::num_sent_packets, c_context::profile, rohc_comp_get_state_descr(), rohc_get_mode_descr(), c_context::state, c_context::total_16_compressed, c_context::total_16_uncompressed, c_context::total_compressed_size, c_context::total_uncompressed_size, and c_context::used.
