feedback_create.h File Reference

Functions to create ROHC feedback. More...

#include <rohc/rohc.h>
#include <rohc/rohc_buf.h>
#include <feedback.h>
#include <stdint.h>
#include <stdlib.h>
#include <stdbool.h>

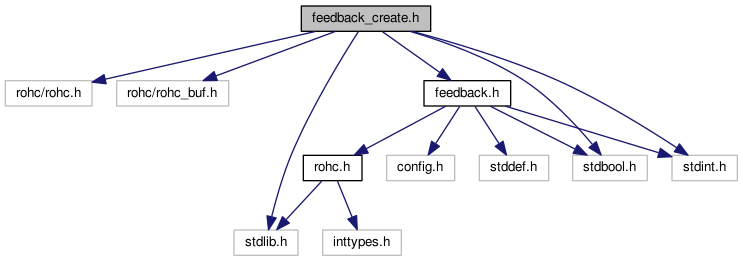

Include dependency graph for feedback_create.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  d_feedback
 Defines a ROHC feedback. More...


Macros

#define FEEDBACK_DATA_MAX_LEN   30
 The maximum length (in bytes) of the feedback data. More...


Enumerations

enum  rohc_feedback_crc_t { ROHC_FEEDBACK_WITH_NO_CRC = 0, ROHC_FEEDBACK_WITH_CRC_OPT = 1, ROHC_FEEDBACK_WITH_CRC_BASE = 2 }
 Whether the feedback is protected by a CRC or not. More...


Functions

bool rohc_decomp_feedback_size (const struct rohc_buf rohc_data, size_t *const feedback_hdr_len, size_t *const feedback_data_len)

void f_feedback1 (const uint32_t sn_bits, struct d_feedback *const feedback)
 Build a FEEDBACK-1 packet. More...

bool f_feedback2 (const rohc_profile_t profile_id, const enum rohc_feedback_ack_type ack_type, const rohc_mode_t mode, const uint32_t sn_bits, const size_t sn_bits_nr, struct d_feedback *const feedback)
 Build a FEEDBACK-2 packet. More...

bool f_add_option (struct d_feedback *const feedback, const enum rohc_feedback_opt opt_type, const uint8_t *const data, const size_t data_len)
 Add an option data to the FEEDBACK-2 packet. More...

uint8_t * f_wrap_feedback (struct d_feedback *feedback, const uint16_t cid, const rohc_cid_type_t cid_type, const rohc_feedback_crc_t protect_with_crc, const uint8_t *const crc_table, size_t *const final_size)
 Wrap the feedback packet and add a CRC option if specified. More...


Detailed Description

Functions to create ROHC feedback.

Author
Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com
Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Macro Definition Documentation

#define FEEDBACK_DATA_MAX_LEN   30

The maximum length (in bytes) of the feedback data.

Enumeration Type Documentation

Whether the feedback is protected by a CRC or not.

Enumerator
ROHC_FEEDBACK_WITH_NO_CRC

No CRC protects the feedback

ROHC_FEEDBACK_WITH_CRC_OPT

A CRC option protects the feedback

ROHC_FEEDBACK_WITH_CRC_BASE

A base header CRC protects the feedback

Function Documentation

bool f_add_option ( struct d_feedback *const  feedback,
const enum rohc_feedback_opt  opt_type,
const uint8_t *const  data,
const size_t  data_len
)

Add an option data to the FEEDBACK-2 packet.

Parameters
feedbackThe feedback packet to which the option must be added
opt_typeThe type of option to add
dataThe option data
data_lenThe length of option data (in bytes)
Returns
true if the option is successfully added, false otherwise
void f_feedback1 ( const uint32_t  sn_bits,
struct d_feedback *const  feedback
)

Build a FEEDBACK-1 packet.

Parameters
sn_bitsThe LSB of the Sequence Number (SN) the feedback packet is associated with
feedbackThe feedback packet to build
bool f_feedback2 ( const rohc_profile_t  profile_id,
const enum rohc_feedback_ack_type  ack_type,
const rohc_mode_t  mode,
const uint32_t  sn_bits,
const size_t  sn_bits_nr,
struct d_feedback *const  feedback
)

Build a FEEDBACK-2 packet.

Parameters
profile_idThe ID of the decompression profile that builds the feedback
ack_typeThe type of acknowledgement:
modeThe mode in which ROHC operates:
sn_bitsThe LSB of the Sequence Number (SN) the feedback packet is associated with
sn_bits_nrThe number of SN LSB
feedbackThe feedback packet to build
Returns
true if the packet is successfully built, false otherwise
uint8_t* f_wrap_feedback ( struct d_feedback *const  feedback,
const uint16_t  cid,
const rohc_cid_type_t  cid_type,
const rohc_feedback_crc_t  protect_with_crc,
const uint8_t *const  crc_table,
size_t *const  final_size
)

Wrap the feedback packet and add a CRC option if specified.

Warning
CID may be greater than MAX_CID if the context was not found and generated a No Context feedback; it must however respect CID type
Parameters
feedbackThe feedback packet to which the CID must be appended
cidThe Context ID (CID) to append
cid_typeThe type of CID used for the feedback
protect_with_crcWhether the CRC option must be added or not
crc_tableThe pre-computed table for fast CRC computation
final_sizeOUT: The final size of the feedback packet
Returns
The feedback packet if successful, NULL otherwise
bool rohc_decomp_feedback_size ( const struct rohc_buf  rohc_data,
size_t *const  feedback_hdr_len,
size_t *const  feedback_data_len
)
