comp_wlsb.c File Reference

Window-based Least Significant Bits (W-LSB) encoding. More...

#include "comp_wlsb.h"
#include "interval.h"
#include <string.h>
#include <assert.h>

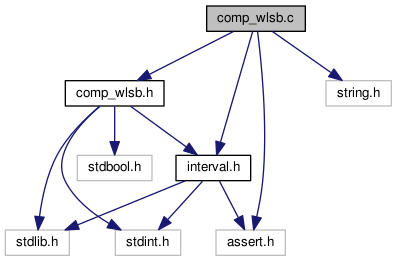

Include dependency graph for comp_wlsb.c:

Data Structures

struct  c_window
 Define a W-LSB window entry. More...

struct  c_wlsb
 Defines a W-LSB encoding object. More...


Functions

static size_t wlsb_get_next_older (const size_t entry, const size_t max)
 Get the next older entry. More...

static size_t wlsb_ack_remove (struct c_wlsb *const wlsb, const size_t pos)
 Removes all W-LSB window entries prior to the given position. More...

static size_t rohc_g_8bits (const uint8_t v_ref, const uint8_t v, const rohc_lsb_shift_t p, const size_t bits_nr)
 The g function as defined in LSB encoding for 8-bit fields. More...

static size_t rohc_g_16bits (const uint16_t v_ref, const uint16_t v, const size_t min_k, const rohc_lsb_shift_t p, const size_t bits_nr)
 The g function as defined in LSB encoding for 16-bit fields. More...

static size_t rohc_g_32bits (const uint32_t v_ref, const uint32_t v, const size_t min_k, const rohc_lsb_shift_t p, const size_t bits_nr)
 The g function as defined in LSB encoding for 32-bit fields. More...

struct c_wlsbc_create_wlsb (const size_t bits, const size_t window_width, const rohc_lsb_shift_t p)
 Create a new Window-based Least Significant Bits (W-LSB) encoding object. More...

void c_destroy_wlsb (struct c_wlsb *const wlsb)
 Destroy a Window-based LSB (W-LSB) encoding object. More...

void c_add_wlsb (struct c_wlsb *const wlsb, const uint32_t sn, const uint32_t value)
 Add a value into a W-LSB encoding object. More...

size_t wlsb_get_k_8bits (const struct c_wlsb *const wlsb, const uint8_t value)
 Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t wlsb_get_kp_8bits (const struct c_wlsb *const wlsb, const uint8_t value, const rohc_lsb_shift_t p)
 Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t wlsb_get_k_16bits (const struct c_wlsb *const wlsb, const uint16_t value)
 Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t wlsb_get_mink_16bits (const struct c_wlsb *const wlsb, const uint16_t value, const size_t min_k)
 Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t wlsb_get_kp_16bits (const struct c_wlsb *const wlsb, const uint16_t value, const rohc_lsb_shift_t p)
 Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t wlsb_get_minkp_16bits (const struct c_wlsb *const wlsb, const uint16_t value, const size_t min_k, const rohc_lsb_shift_t p)
 Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t wlsb_get_k_32bits (const struct c_wlsb *const wlsb, const uint32_t value)
 Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t wlsb_get_mink_32bits (const struct c_wlsb *const wlsb, const uint32_t value, const size_t min_k)
 Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t wlsb_get_kp_32bits (const struct c_wlsb *const wlsb, const uint32_t value, const rohc_lsb_shift_t p)
 Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t wlsb_get_minkp_32bits (const struct c_wlsb *const wlsb, const uint32_t value, const size_t min_k, const rohc_lsb_shift_t p)
 Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window. More...

size_t wlsb_ack (struct c_wlsb *const wlsb, const uint32_t sn_bits, const size_t sn_bits_nr)
 Acknowledge based on the Sequence Number (SN) More...


Detailed Description

Window-based Least Significant Bits (W-LSB) encoding.

Author
Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com
Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org
David Moreau from TAS

Function Documentation

void c_add_wlsb ( struct c_wlsb *const  wlsb,
const uint32_t  sn,
const uint32_t  value
)

Add a value into a W-LSB encoding object.

Parameters
wlsbThe W-LSB object
snThe Sequence Number (SN) for the new entry
valueThe value to base the LSB coding on
struct c_wlsb* c_create_wlsb ( const size_t  bits,
const size_t  window_width,
const rohc_lsb_shift_t  p
)

Create a new Window-based Least Significant Bits (W-LSB) encoding object.

Parameters
bitsThe maximal number of bits for representing a value
window_widthThe number of entries in the window (power of 2)
pShift parameter (see 4.5.2 in the RFC 3095)
Returns
The newly-created W-LSB encoding object
void c_destroy_wlsb ( struct c_wlsb *const  wlsb)

Destroy a Window-based LSB (W-LSB) encoding object.

Parameters
wlsbThe W-LSB object to destroy
static size_t rohc_g_16bits ( const uint16_t  v_ref,
const uint16_t  v,
const size_t  min_k,
const rohc_lsb_shift_t  p,
const size_t  bits_nr
)
static

The g function as defined in LSB encoding for 16-bit fields.

Find the minimal k value so that v falls into the interval given by f(v_ref, k). See 4.5.1 in the RFC 3095.

Parameters
v_refThe reference value
vThe value to encode
min_kThe minimum number of bits to find out
pThe shift parameter
bits_nrThe number of bits that may be used to represent the LSB-encoded value
Returns
The minimal k value as defined by the LSB algorithm
static size_t rohc_g_32bits ( const uint32_t  v_ref,
const uint32_t  v,
const size_t  min_k,
const rohc_lsb_shift_t  p,
const size_t  bits_nr
)
static

The g function as defined in LSB encoding for 32-bit fields.

Find the minimal k value so that v falls into the interval given by f(v_ref, k). See 4.5.1 in the RFC 3095.

Parameters
v_refThe reference value
vThe value to encode
min_kThe minimum number of bits to find out
pThe shift parameter
bits_nrThe number of bits that may be used to represent the LSB-encoded value
Returns
The minimal k value as defined by the LSB algorithm
static size_t rohc_g_8bits ( const uint8_t  v_ref,
const uint8_t  v,
const rohc_lsb_shift_t  p,
const size_t  bits_nr
)
static

The g function as defined in LSB encoding for 8-bit fields.

Find the minimal k value so that v falls into the interval given by f(v_ref, k). See 4.5.1 in the RFC 3095.

Parameters
v_refThe reference value
vThe value to encode
pThe shift parameter
bits_nrThe number of bits that may be used to represent the LSB-encoded value
Returns
The minimal k value as defined by the LSB algorithm
size_t wlsb_ack ( struct c_wlsb *const  wlsb,
const uint32_t  sn_bits,
const size_t  sn_bits_nr
)

Acknowledge based on the Sequence Number (SN)

Removes all window entries older (and including) than the one that matches the given SN bits.

Parameters
wlsbThe W-LSB object
sn_bitsThe LSB of the SN to acknowledge
sn_bits_nrThe number of LSB of the SN to acknowledge
Returns
The number of acked window entries
static size_t wlsb_ack_remove ( struct c_wlsb *const  wlsb,
const size_t  pos
)
static

Removes all W-LSB window entries prior to the given position.

Parameters
wlsbThe W-LSB object
posThe position to set as the oldest
Returns
The number of acked window entries
size_t wlsb_get_k_16bits ( const struct c_wlsb *const  wlsb,
const uint16_t  value
)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters
wlsbThe W-LSB object
valueThe value to encode using the LSB algorithm
Returns
The number of bits required to uniquely recreate the value
size_t wlsb_get_k_32bits ( const struct c_wlsb *const  wlsb,
const uint32_t  value
)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters
wlsbThe W-LSB object
valueThe value to encode using the LSB algorithm
Returns
The number of bits required to uniquely recreate the value
size_t wlsb_get_k_8bits ( const struct c_wlsb *const  wlsb,
const uint8_t  value
)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 8-bit fields.

Parameters
wlsbThe W-LSB object
valueThe value to encode using the LSB algorithm
Returns
The number of bits required to uniquely recreate the value
size_t wlsb_get_kp_16bits ( const struct c_wlsb *const  wlsb,
const uint16_t  value,
const rohc_lsb_shift_t  p
)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters
wlsbThe W-LSB object
valueThe value to encode using the LSB algorithm
pThe shift parameter p
Returns
The number of bits required to uniquely recreate the value
size_t wlsb_get_kp_32bits ( const struct c_wlsb *const  wlsb,
const uint32_t  value,
const rohc_lsb_shift_t  p
)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters
wlsbThe W-LSB object
valueThe value to encode using the LSB algorithm
pThe shift parameter p
Returns
The number of bits required to uniquely recreate the value
size_t wlsb_get_kp_8bits ( const struct c_wlsb *const  wlsb,
const uint8_t  value,
const rohc_lsb_shift_t  p
)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 8-bit fields.

Parameters
wlsbThe W-LSB object
valueThe value to encode using the LSB algorithm
pThe shift parameter p
Returns
The number of bits required to uniquely recreate the value
size_t wlsb_get_mink_16bits ( const struct c_wlsb *const  wlsb,
const uint16_t  value,
const size_t  min_k
)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters
wlsbThe W-LSB object
valueThe value to encode using the LSB algorithm
min_kThe minimum number of bits to find out
Returns
The number of bits required to uniquely recreate the value
size_t wlsb_get_mink_32bits ( const struct c_wlsb *const  wlsb,
const uint32_t  value,
const size_t  min_k
)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters
wlsbThe W-LSB object
valueThe value to encode using the LSB algorithm
min_kThe minimum number of bits to find out
Returns
The number of bits required to uniquely recreate the value
size_t wlsb_get_minkp_16bits ( const struct c_wlsb *const  wlsb,
const uint16_t  value,
const size_t  min_k,
const rohc_lsb_shift_t  p
)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters
wlsbThe W-LSB object
valueThe value to encode using the LSB algorithm
min_kThe minimum number of bits to find out
pThe shift parameter p
Returns
The number of bits required to uniquely recreate the value
size_t wlsb_get_minkp_32bits ( const struct c_wlsb *const  wlsb,
const uint32_t  value,
const size_t  min_k,
const rohc_lsb_shift_t  p
)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters
wlsbThe W-LSB object
valueThe value to encode using the LSB algorithm
min_kThe minimum number of bits to find out
pThe shift parameter p
Returns
The number of bits required to uniquely recreate the value
static size_t wlsb_get_next_older ( const size_t  entry,
const size_t  max
)
static

Get the next older entry.

Parameters
entryThe entry for which to get the next older entry
maxThe max entry value
Returns
The next older entry
