comp_list.h File Reference

ROHC generic list compression. More...

#include "ip.h"
#include "rohc_list.h"
#include "rohc_traces_internal.h"

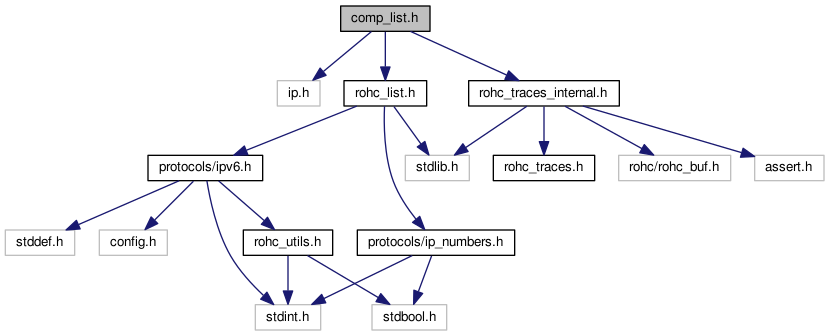

Include dependency graph for comp_list.h:

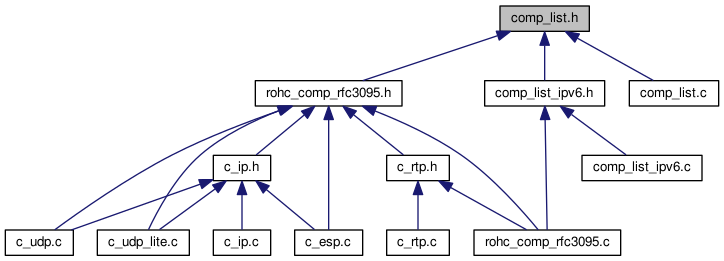

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	list_comp
	The list compressor. More...

Macros
#define	rc_list_debug(comp_list, format, ...)

Functions
bool	detect_ipv6_ext_changes (struct list_comp *const comp, const struct ip_packet *const ip, bool *const list_struct_changed, bool *const list_content_changed)
	Detect changes within the list of IPv6 extension headers. More...
int	rohc_list_encode (struct list_comp *const comp, uint8_t *const dest, int counter)
	Generic encoding of compressed list. More...
void	rohc_list_update_context (struct list_comp *const comp)
	Update the list compression context. More...

Detailed Description

ROHC generic list compression.

Author

Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Macro Definition Documentation

#define rc_list_debug	(		comp_list,
			format,
			...
	)

Value:

rohc_debug(comp_list, ROHC_TRACE_COMP, (comp_list)->profile_id, \
                   format, ##__VA_ARGS__)

Print a debug trace for the given compression list

Function Documentation

bool detect_ipv6_ext_changes	(	struct list_comp *const	comp,
		const struct ip_packet *const	ip,
		bool *const	list_struct_changed,
		bool *const	list_content_changed
	)

Detect changes within the list of IPv6 extension headers.

Parameters

	comp	The list compressor
	ip	The IP packet to compress
[out]	list_struct_changed	Whether the structure of the list changed
[out]	list_content_changed	Whether the content of the list changed

Returns

true if no error occurred, false if one error occurred

int rohc_list_encode	(	struct list_comp *const	comp,
		uint8_t *const	dest,
		int	counter
	)

Generic encoding of compressed list.

Parameters

comp	The list compressor
dest	The ROHC packet under build
counter	The current position in the rohc-packet-under-build buffer

Returns

The new position in the rohc-packet-under-build buffer, -1 in case of error

void rohc_list_update_context

(

struct list_comp *const

comp

)

Update the list compression context.

Update the counter of the current list. Update the counters of the items of the current list. Update the reference list with the current list if possible.

Parameters

comp	The list compressor
